Steps
1. Peel off the tape that secures the I/O-board cable to the fan.
2. Lift the mylar that covers the fan screw on the system board.
3. Remove the two screws (M2x3) that secure the fan to the system board.
4. Disconnect the fan cable from the system board.
5. Lift the fan off the system board.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

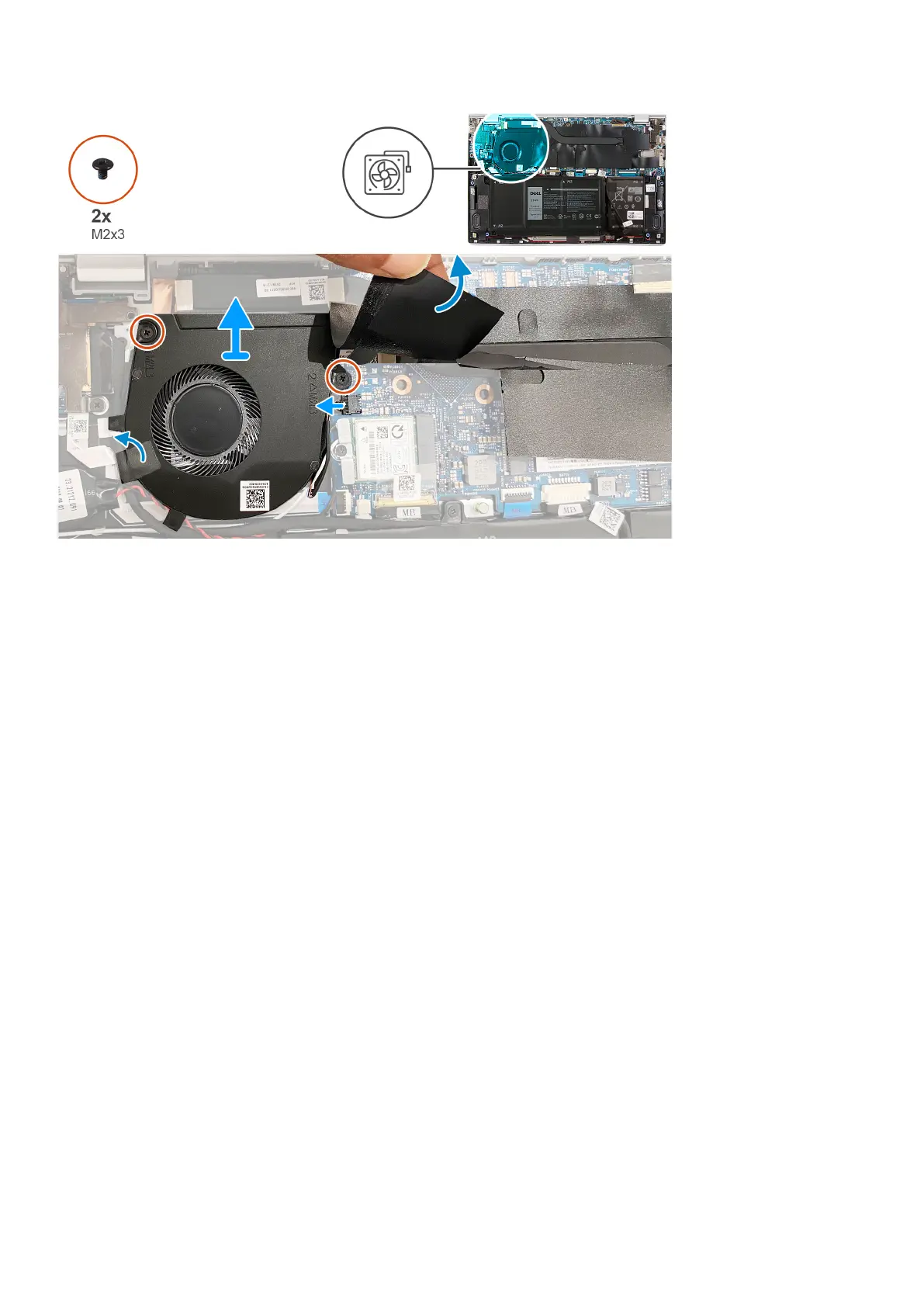

The following images indicate the location of the fans and provide a visual representation of the installation procedure.
24
Disassembly and reassembly
