About this task

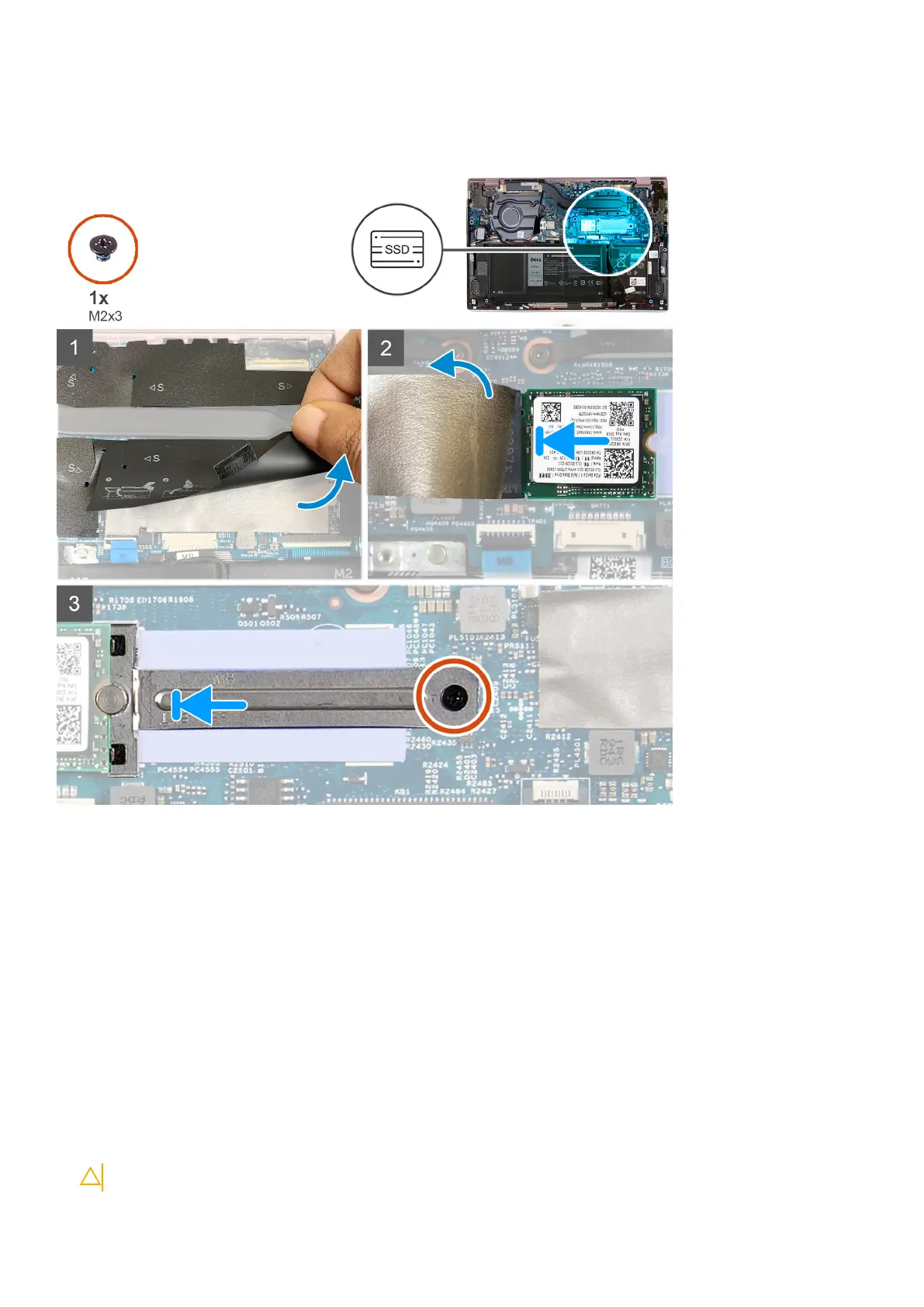

The following image indicates the location of the solid-state drive and provides a visual representation of the installation
procedure.
Steps
1. Lift the protective tape and peel the Mylar that covers the 2230 solid-state drive.
2. Slide the 2230 solid-state drive into the solid-state drive slot.
3. Slide the solid-state drive bracket and align the screw hole on the solid-state drive bracket with the screw hole on the
system board.
4. Replace the screw (M2x3) that secures the solid-state drive bracket to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
Disassembly and reassembly 19
