Steps

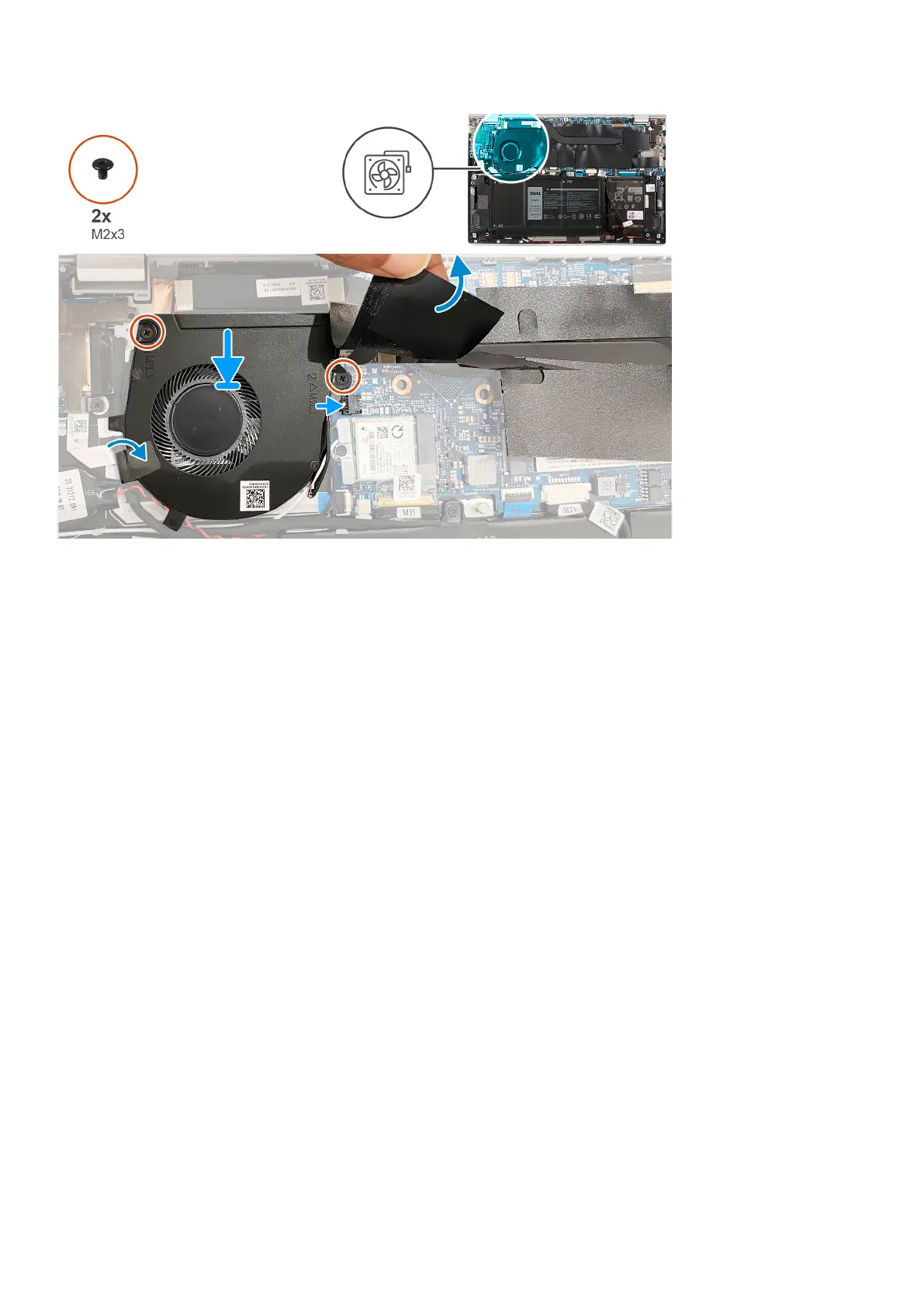

1. Lift the mylar that covers the screw hole on the fan.
2. Align the screw holes on the fan with the screw holes on the system board.
3. Replace the two screws (M2x3) that secure the fan to the system board.
4. Connect the fan cable from the system board.
5. Adhere the tape that secures the I/O-board cable to the fan.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
Disassembly and reassembly
