Steps

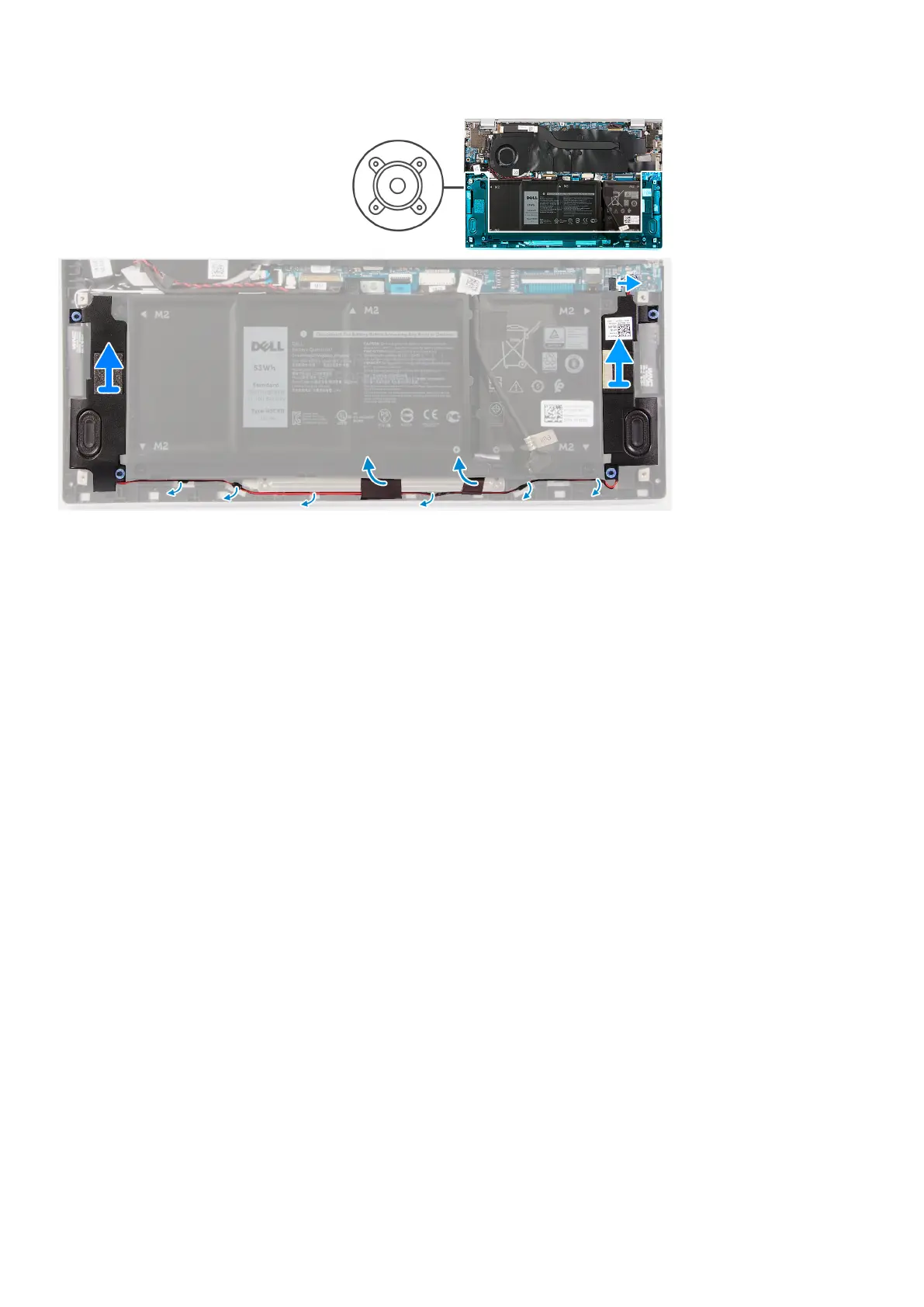

1. Disconnect the speaker cable from the system board.
2. Peel the tapes that secure the speaker cable to the battery.
3. Note the routing of the speaker cables, and remove the speaker cables from the respective routing guides on the palm-rest
and keyboard assembly.
4. Pry the speakers off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
26
Disassembly and reassembly
