NOTE: The system board can be removed with the heat sink attached.
6. Remove the solid state drive.
7. Remove the display assembly.
About this task

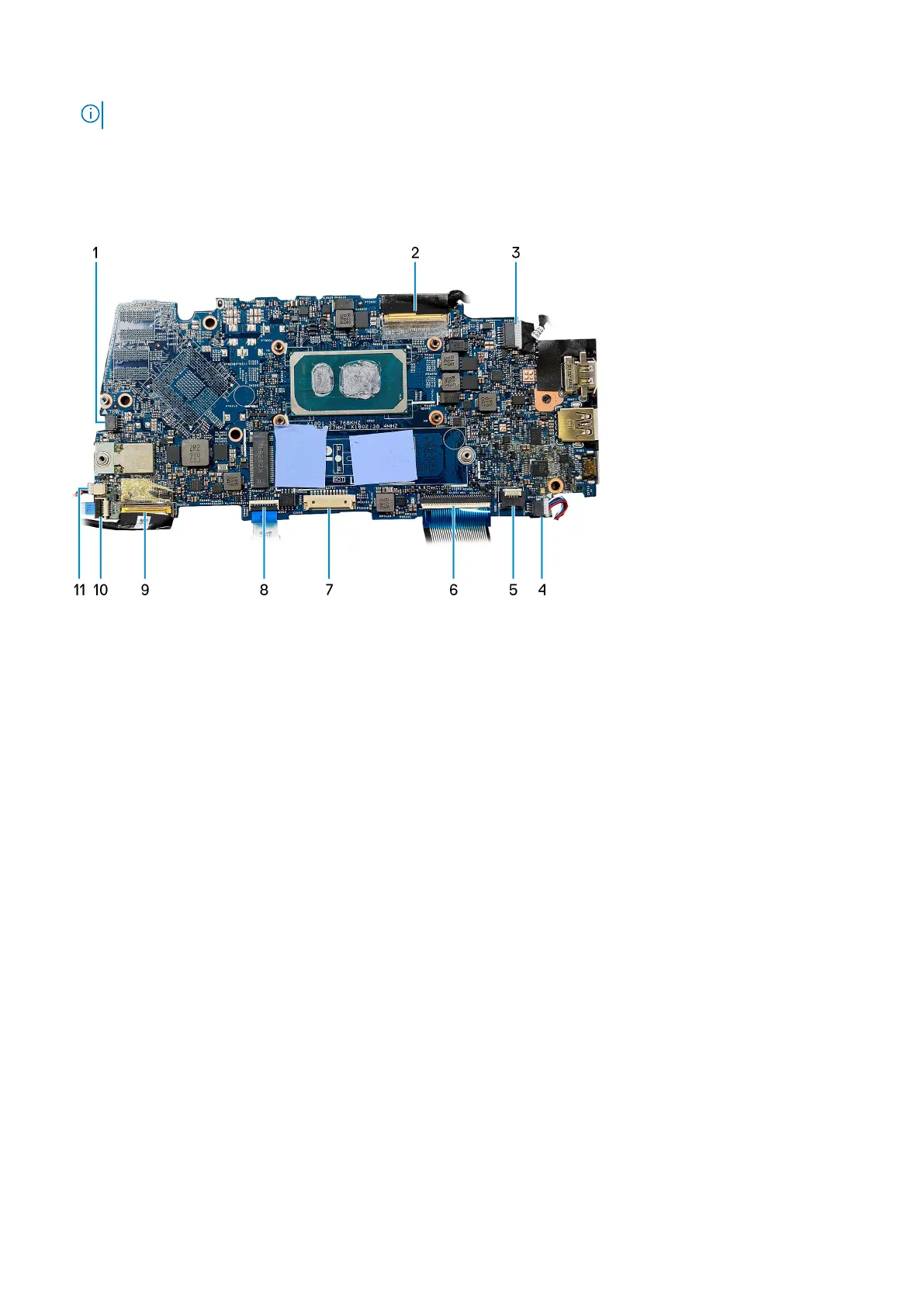

The following images indicate the location of the system board and provide a visual representation of the removal procedure.
1. fan cable 2. display cable
3. power-adapter port cable 4. speaker cable
5. keyboard backlight cable 6. keyboard cable
7. battery cable 8. touchpad cable
9. I/O-board cable 10. fingerprint-reader cable
11. coin-cell battery cable
40 Disassembly and reassembly
