Steps

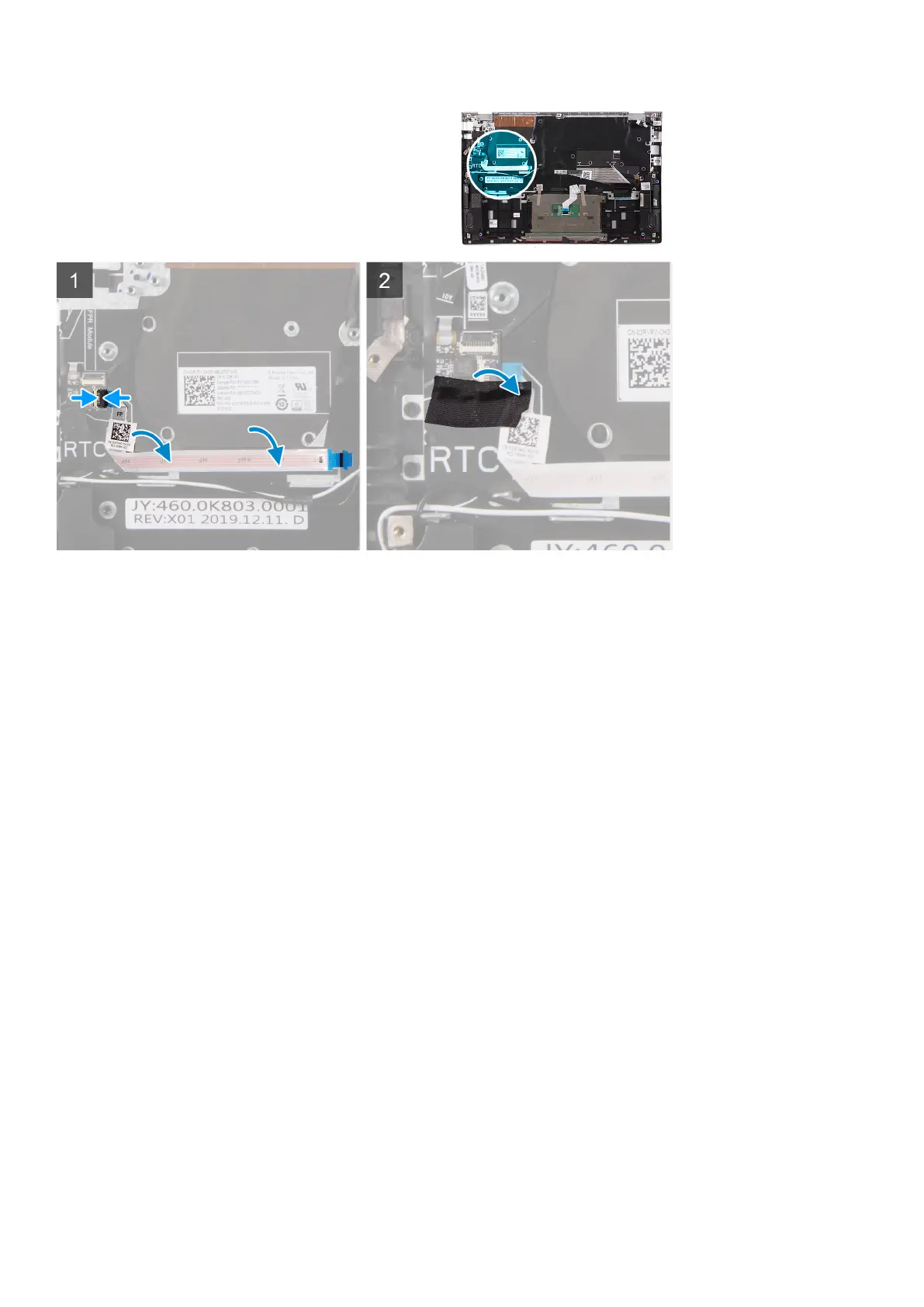

1. Align the power button with fingerprint reader on the palm-rest and keyboard assembly.
2. Connect the power button with fingerprint reader cable to the connector on the palm-rest and keyboard assembly.
3. Adhere the mylar tape that secures the power button with fingerprint reader cable connection.
Next steps
1. Install the power-adapter port.
2. Install the display assembly.
3. Install the system board.
4. Install the speakers.
5. Install the 4-cell battery or the 3-cell battery.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
48
Disassembly and reassembly
