Removing the System Board | 53
Procedure
NOTE: Your computer’s Service Tag is located under the system badge. You must
enter the Service Tag in the BIOS after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the location
of the connectors so that you can reconnect them correctly after you replace the
system board.

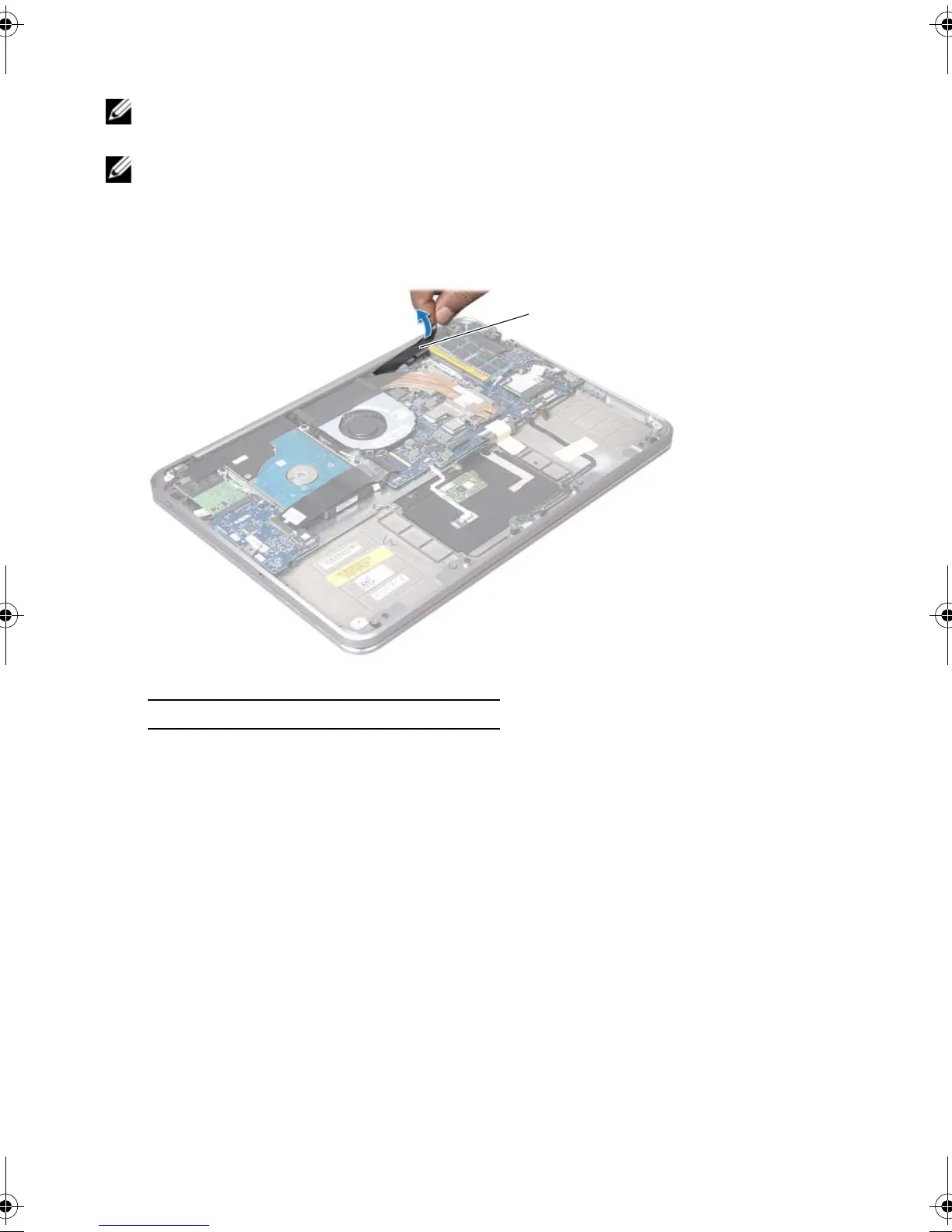

1 Peel the mylar from the system board.
2 Disconnect the camera cable from the system board.
3 Using the pull-tabs disconnect the display cable from the system board.
1mylar
