Owner´s Manual DEA600 Radio
36 |
P a g e

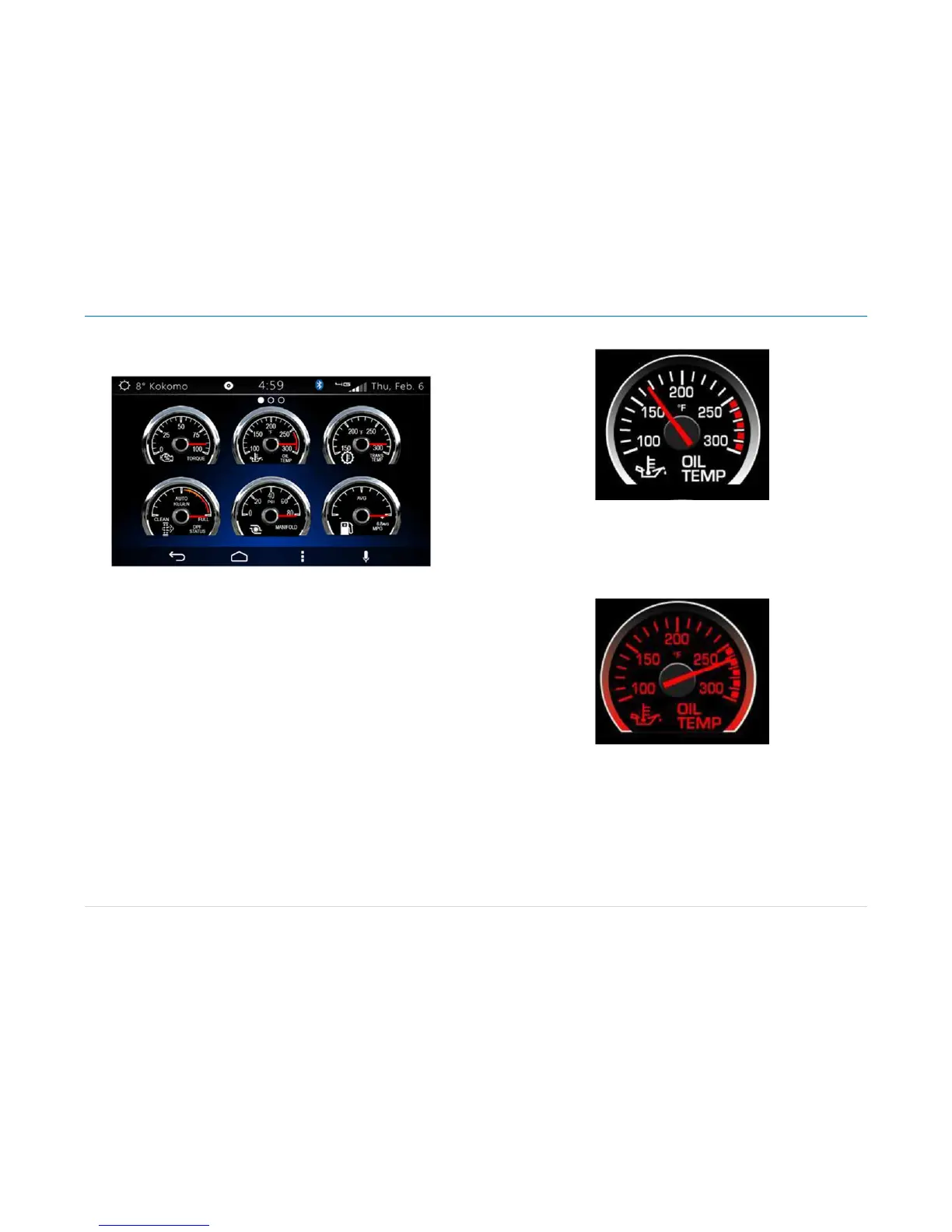

The G
auges app can handle up to 30 gauges distributed in 5 screens as
Figure 73 represents.
Figure 73: Virtual Gauges Application Layout
Gauges are updated with information collected form v
ehicle digital buses.
The Virtual Gauges app shows the last selected page each time that the
application is opened.
The default page (page 1) is displayed in the Virtual Gauges app is
displayed in the following cases:
• The first time the Virtual Gauges app is opened afte
r an IGN or
BATT cycle
• When the last selected page is not available
• When the last selected page does not contain any gauges
Gauges
This manual describes the general function of the Virtual Gauges.
Please refer to the vehicle's owner's manual for information about the
functionality of individual gauges.
Gauge States
Each gauge is capable of 3 different states (when available):
1. Regular State
This state includes Metric and English rates
Figure 74: Regular KW Oil Temp Gauge state Art Work
(°F)
2. Warning States
In this state the Gauges Turns Red
o If Gauge reaches an out of range condition, the virtual
gauge Pops-Up larger on the screen. Pop-up may return
to its original state per user interaction.
Figure 75: Warning KW Oil Temp Gauge state Art Work
3. Error States (Needle Deflection)
o
If Data is not available, the gauge pointer shall
automatically be positioned in - 15° from the Null position
and stay in that position until data is available.
o If the gauge is under scaled, the gauge pointer will
automatically be positioned in - 5° from the Null position
and stay in that position until the data is rescaled.
