Delphi DS100E User Manual

25

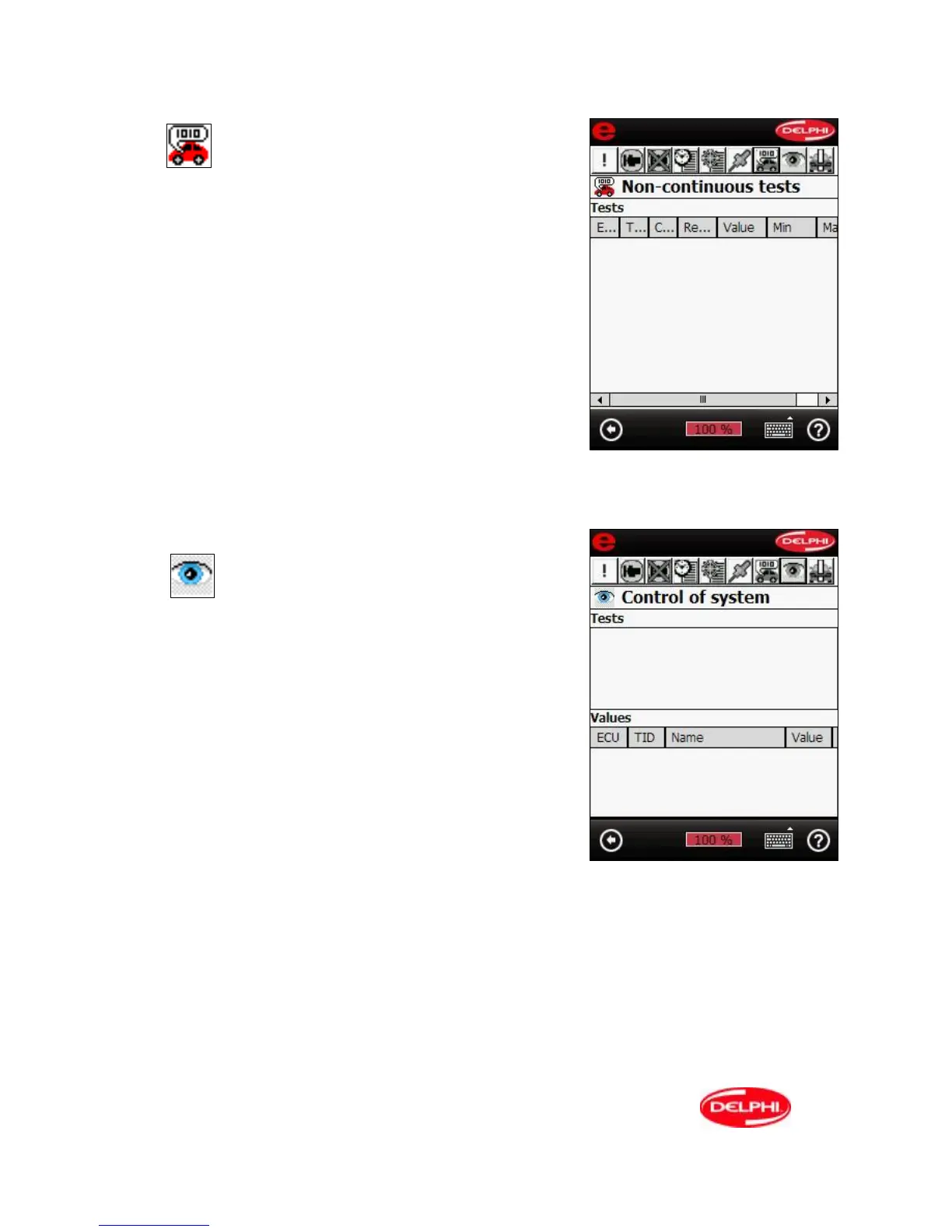

Non continuous tests.
The values are read automatically and they indicate the TID
and the CID values which are defined by the manufacturer.
The column "Result" indicates if the test is OK or not. The
actual values along with the min and max values are
indicated in the display.
Vehicles using can protocol also display oxygen sensor info.
in this section.
Control of system.
The list of the tests is accessible through the ECU. The tests are
displayed with a description, TID reference and an actual value.

Delphi DS100E Specifications

General

Protocols	CAN, ISO9141, KWP2000, PWM, VPW
Connectivity	Bluetooth or USB
Operating System	Windows
Memory	Dependent on connected device
Operating Temperature	50°C
