Delphi DS100E User Manual

40
Hard Reset 2190B

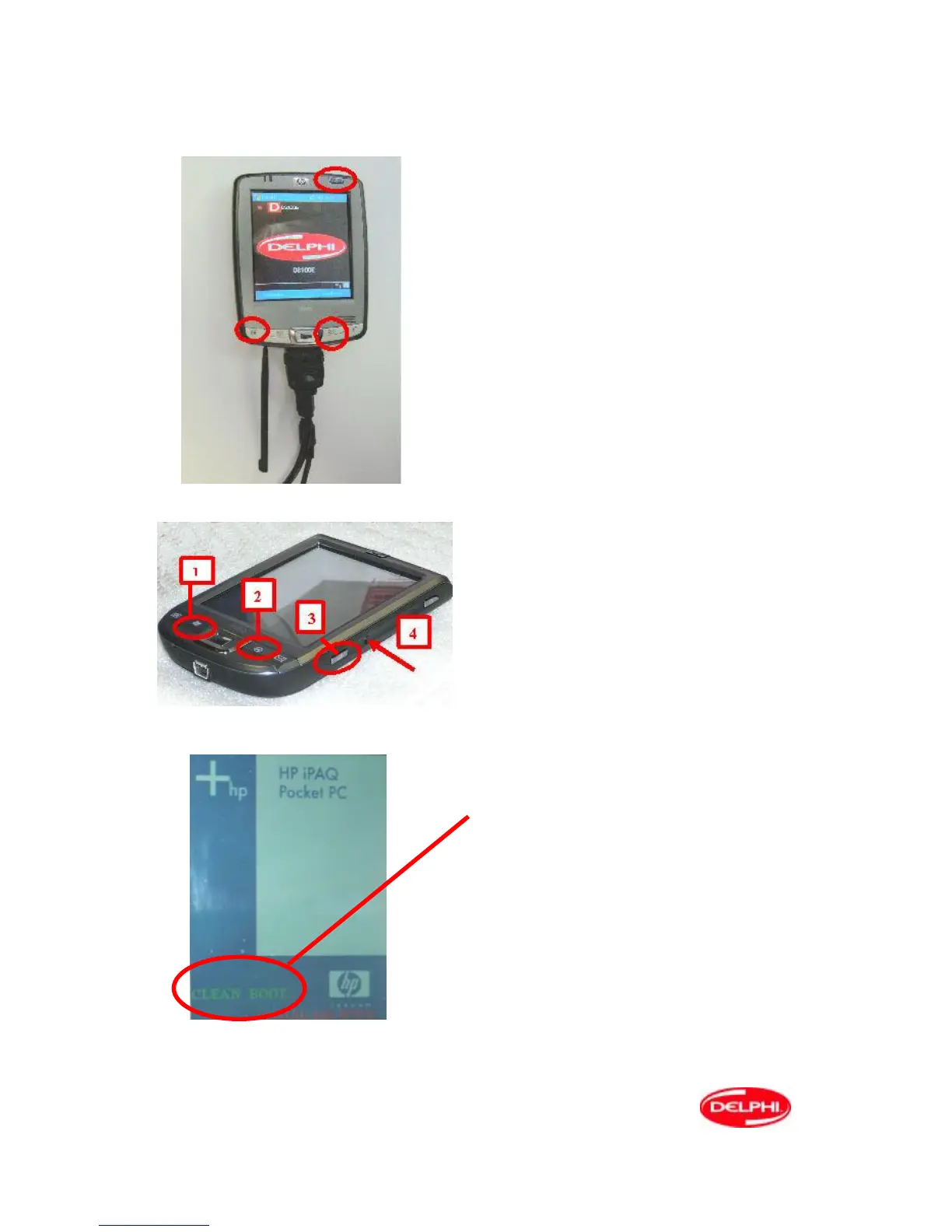

1 Press and hold down the Power, Calendar and
Messaging buttons.
2 While holding down these buttons, use the stylus to
lightly press the Reset button on the bottom of the
iPAQ Pocket PC for about two seconds.
3 When the Pocket PC screen begins to fade, release
the Power, Calendar and Messaging buttons first, and
then remove the stylus from the Reset button.
NOTE: If you simultaneously push and hold the
Power, Calendar, and messaging buttons for more
than two seconds, the battery disconnects. To restart
the device, either plug the device into the AC Adapter
or press the Reset button again.After performing a
hard reset, you may need to reinstall applications
stored in iPAQ File Store to restore shortcuts and full
functionality.
Hard Reset 114
Press and hold the start button (1), the O.K. button (2)
and record button (3)
Using the probe press and release the reset button (4)
Then release the start, O.K. and record button.
.
If the operation has been successfully performed
then “CLEAN BOOT” will appear in the bottom left
corner of the screen.
If “CLEAN BOOT” is not visible then repeat the
process above until it is.

Delphi DS100E Specifications

General

Protocols	CAN, ISO9141, KWP2000, PWM, VPW
Connectivity	Bluetooth or USB
Operating System	Windows
Memory	Dependent on connected device
Operating Temperature	50°C
