Delphi DS100E User Manual

31
Software installation and key activation.

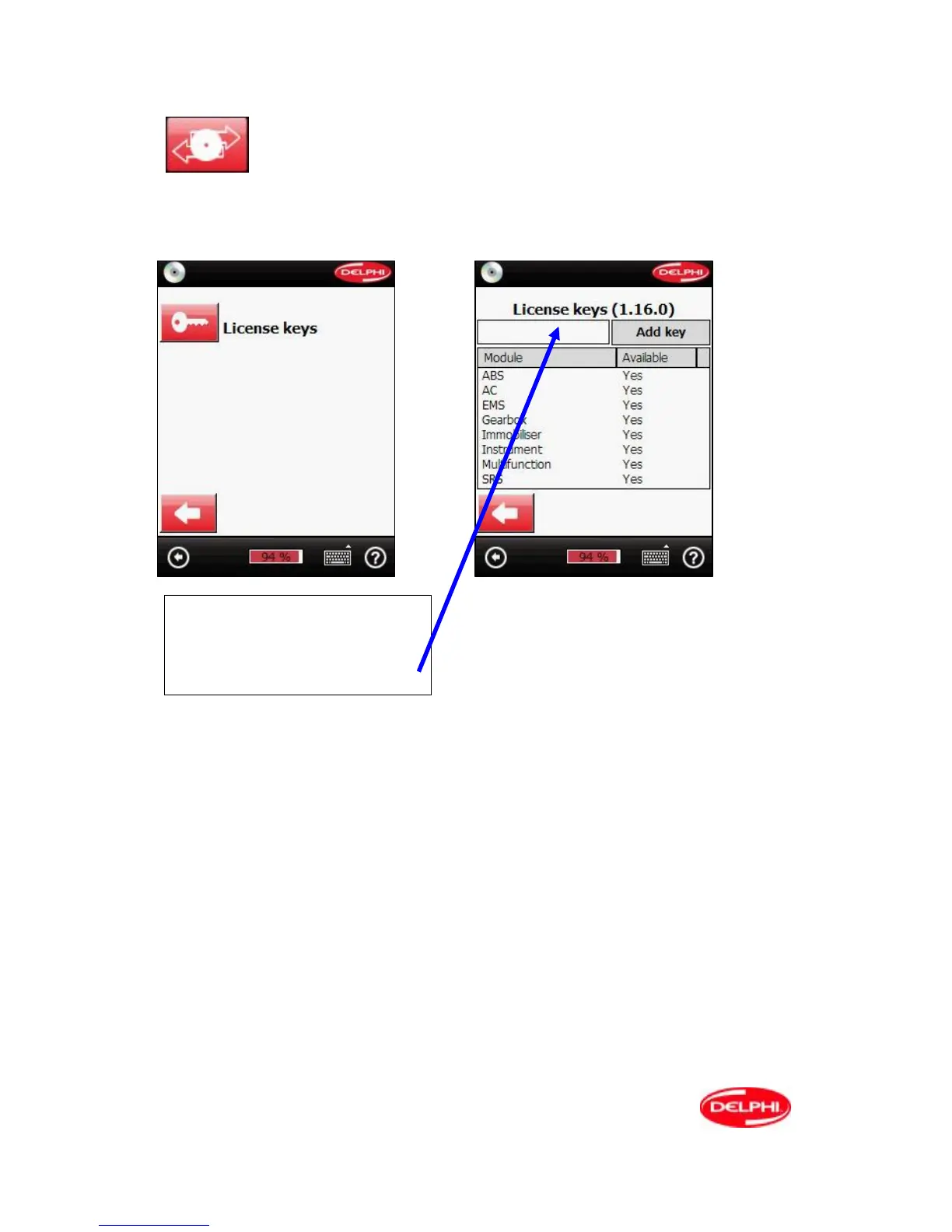

This function makes it possible to change DS100E base to Plus or Max. Click on
the software button "Installation" to obtain the following screen:
Type code (SW, EMS, SWMax, etc.) from the reference number supplied on the label to activate
the various functions. Use the keyboard in upper case, then click on "Add key".
Note: After updates and in the event of components being changed, the software codes will
have to be entered again.
VCI
: 3
1
1
26
1.
12
HW :: LIPTJUPWQOOW
SW MAX: BHPRVJPBGJOM

Delphi DS100E Specifications

General

Protocols	CAN, ISO9141, KWP2000, PWM, VPW
Connectivity	Bluetooth or USB
Operating System	Windows
Memory	Dependent on connected device
Operating Temperature	50°C
