DELPHI DIESEL AFTERMARKET YDT262 Operating and Servicing Manual
HL018, Issue 2 7

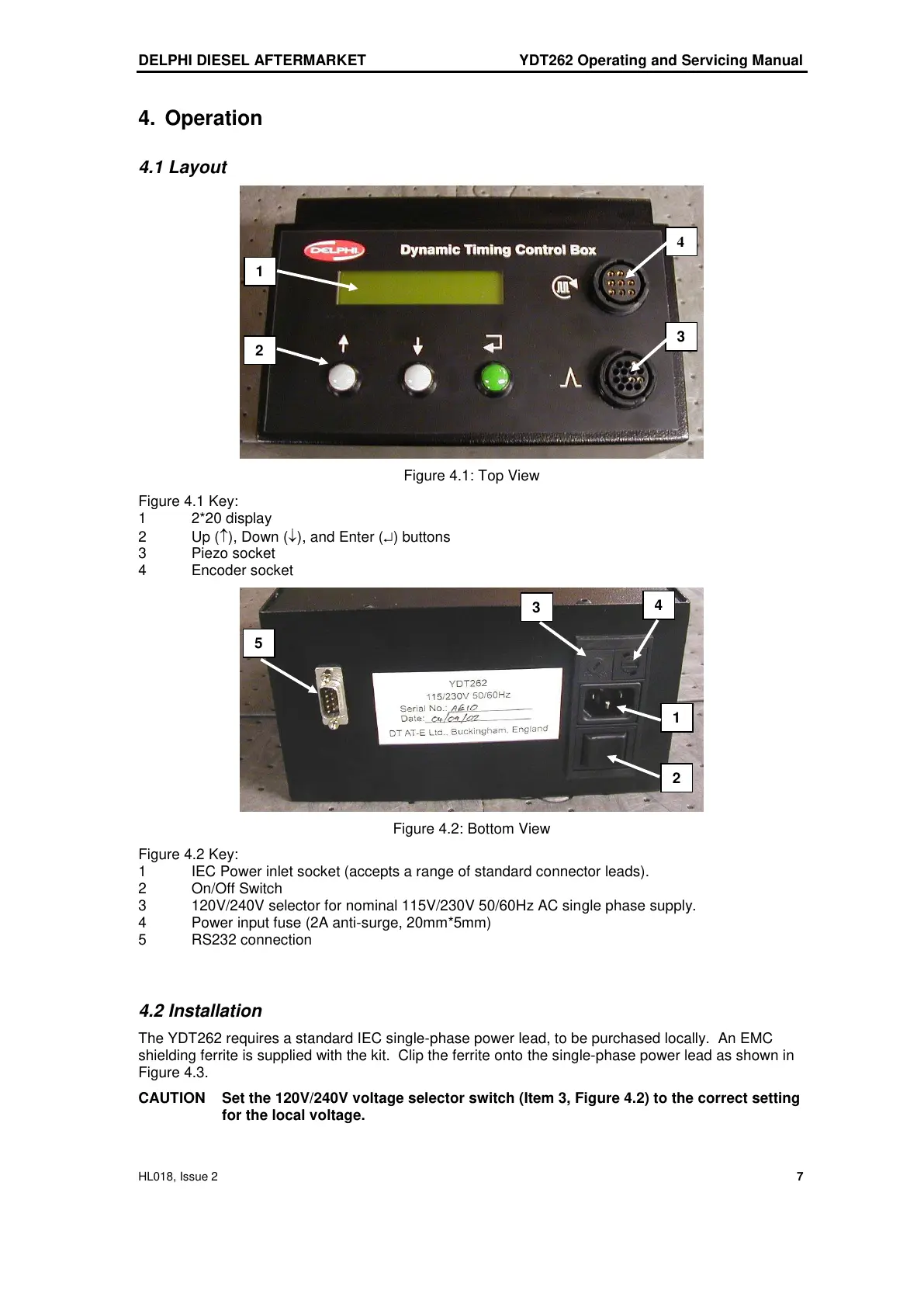

4. Operation
4.1 Layout
Figure 4.1: Top View
Figure 4.1 Key:
1 2*20 display
2 Up (), Down (), and Enter () buttons
3 Piezo socket
4 Encoder socket
Figure 4.2: Bottom View
Figure 4.2 Key:
1 IEC Power inlet socket (accepts a range of standard connector leads).
2 On/Off Switch
3 120V/240V selector for nominal 115V/230V 50/60Hz AC single phase supply.
4 Power input fuse (2A anti-surge, 20mm*5mm)
5 RS232 connection
4.2 Installation
The YDT262 requires a standard IEC single-phase power lead, to be purchased locally. An EMC
shielding ferrite is supplied with the kit. Clip the ferrite onto the single-phase power lead as shown in
Figure 4.3.
CAUTION Set the 120V/240V voltage selector switch (Item 3, Figure 4.2) to the correct setting
for the local voltage.
1
2
4
3
5
3
4
1
2
THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016
Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
