DELTA DORE Tybox 117+ - Installing the Transmitter; Location Selection; Mounting and Connection

3
~1,50 m
Mini 20 cm
PROG x 1
PROG x 7
NL
123
R CT
123
R CT
Th
Ø max. 1,5 mm²
OFF
ON

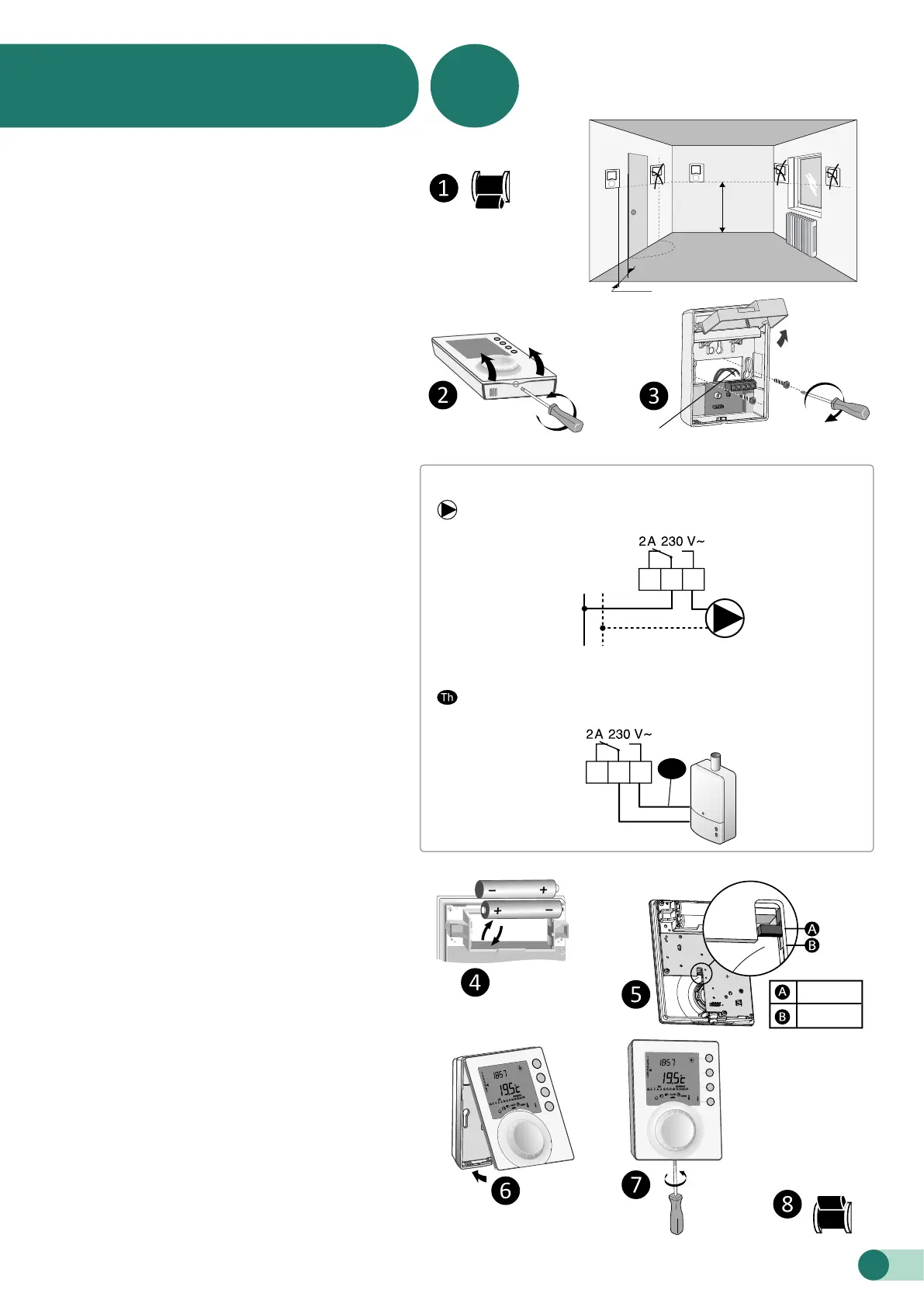

1. Installing the transmitter
1.1 Location
The thermostat can be wall-mounted in a room
where the temperature is to be regulated from,
at a recommended height of 1.5m and away from
any heat sources (replace, direct sunlight, etc.)
or draughts (window, door, etc.).
To avoid unwanted air movements that would
distort the sensor measurement, the wire entry
into the ush-mounted box must be plugged
(mastic, glass wool, etc.).
IMPORTANT: Do not install the thermostat on a
wall in contact with the outside or with an
unheated room (e.g. garage, etc.).
1.2 Mounting/Connection
❶ Switch o the power to your setup.
❷ Separate the box from its base.
❸ Connect and secure the base. Your Tybox
must be connected with exible or rigid cables
with a maximum cross-section of 1.5 mm².
❹ Insert the baeries
WARNING: make sure you insert the baeries
facing the right way and that they are the right
type (no lithium baeries).
❺ Toggle the switch to choose the programme
type: weekly (A) or daily (B).
❻❼ Close and lock the box.
❽ Turn on the power to your setup.
Thermostat input control
Circulator control
INSTALLATION
