5. Settings reset
The default factory seings may be restored for each of the menus.
6. Technical characteristics
• Power supply using baeries: 2 x 1.5 V Alkaline - Type
LR03-AAA
• Class II insulation
• Change-over contact output 2 A max., 230V ~
• Type 1.C automated action
• Dimensions: 80 x 103 x 25 mm
• Protection rating: IP 30
• Installation in an environment with normal pollution
levels
• Storage temperature: -10°C /+70°C
• Operating temperature from -10°C/+40°C
• Ball test temperature: 75°C (Housing), 100°C (Terminal
block)
• Rated impulse voltage: 2,500V

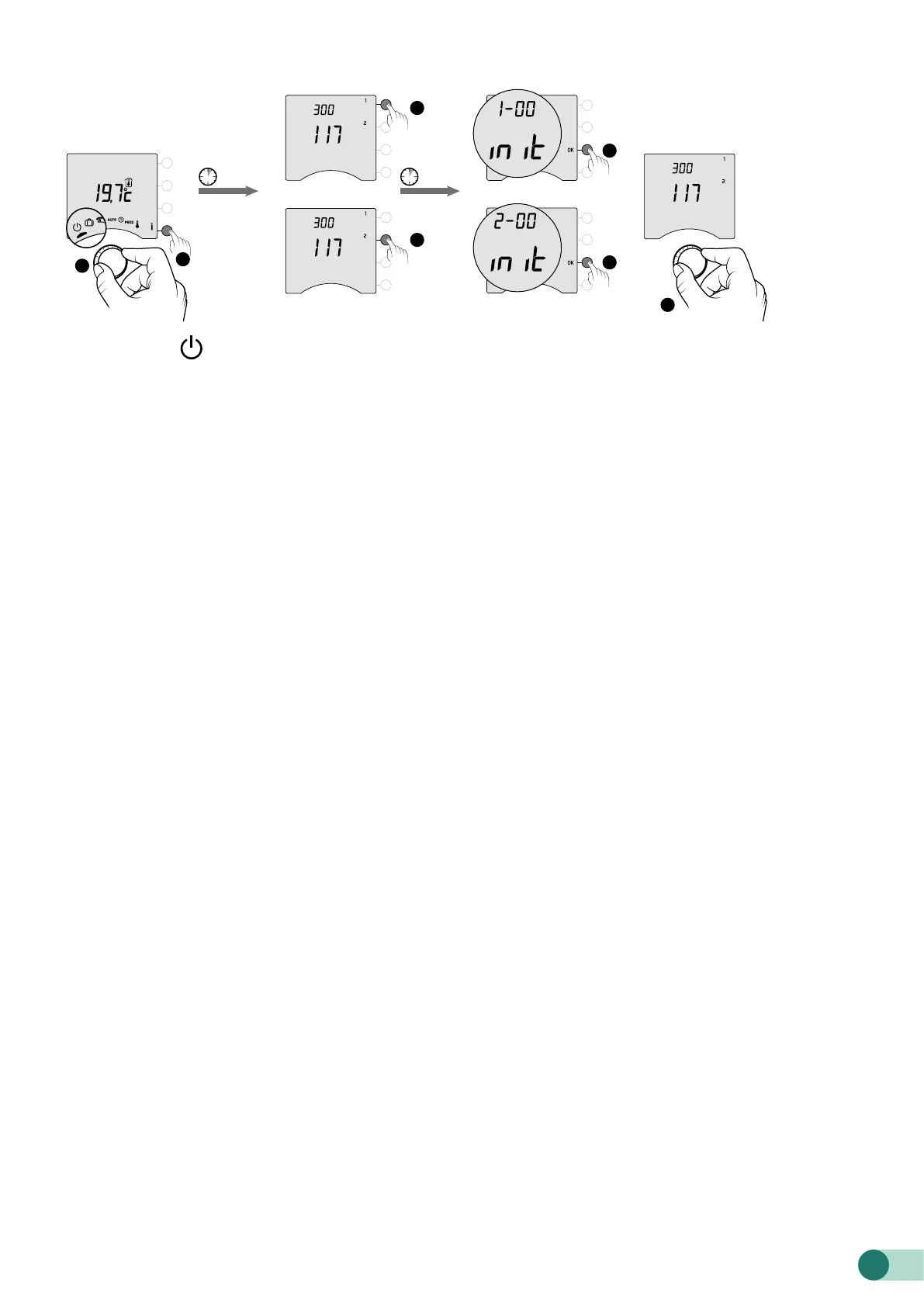

❶ Turn the dial to
, then press
the i buon for 5 seconds (❷).
❸ Press the buon on the menu
you wish to reset, and hold the
buon for 5 seconds.
❹ Then press the OK buon to
conrm the reset.
❺ To exit the mode, turn the dial.
>5s >5s
OU
1
2
3
4
3
4
5
EXIT
Init
Menu 1
Init
Menu 2
OR
Reset
Menu 1
Reset
Menu 2
