Delta 100kW PCS - Securing a Cabinet in a Final Location

Installation
Installation Manual 30
Securing a Cabinet in a Final Location
1. Make sure the installation sites has been prepared, see “Before You Begin” on page 7.
2. Use the following guidelines to secure the cabinet if installed using a chain hoist:
a. Use the key to unlock the front panel.
b. Rotate the door handle to open the front panel and pull the door open.

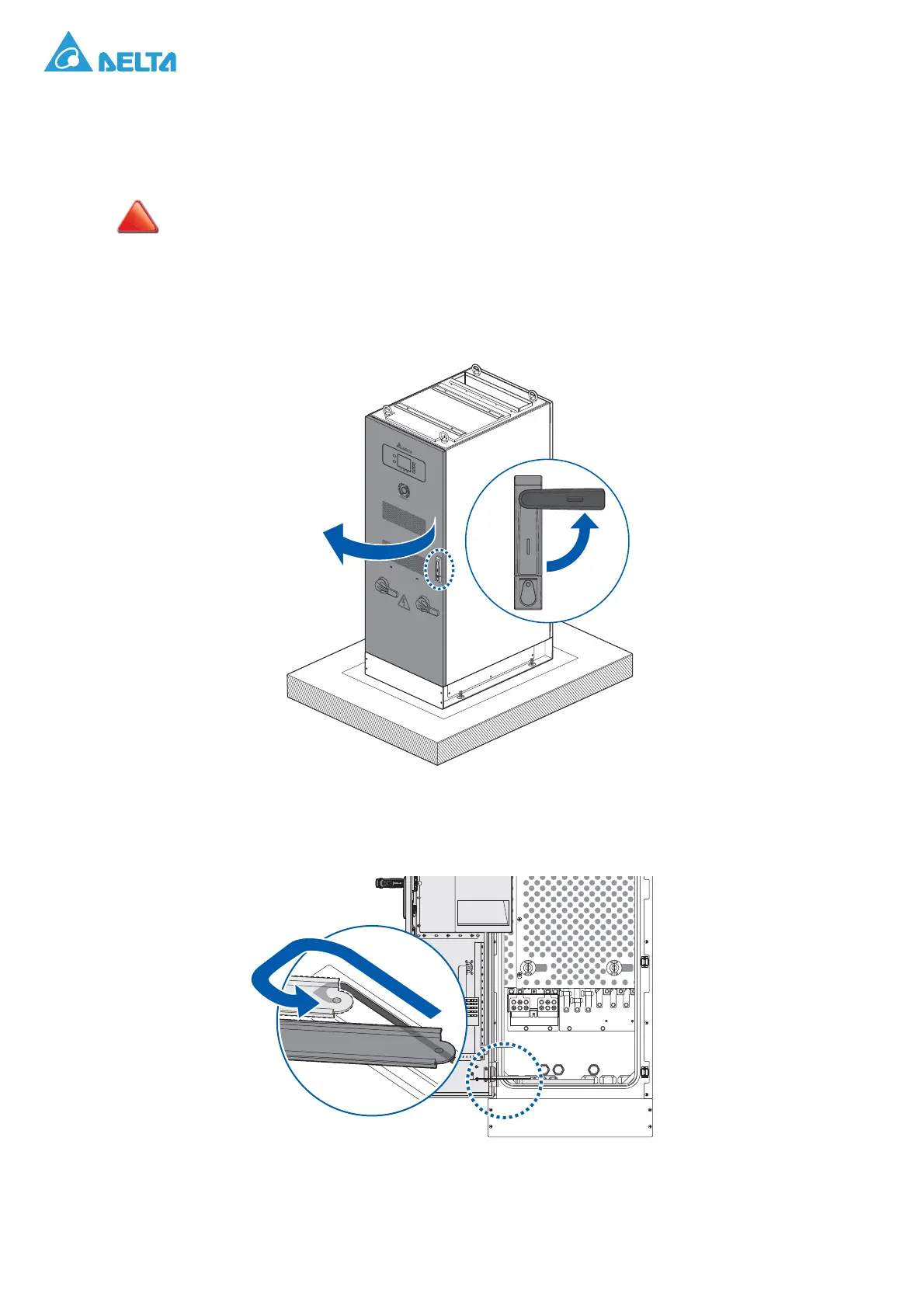

Figure 29. Opening a Front Panel
Make sure the door limiter at the bottom of the panel engages in the track to keep the front
panel from closing accidentally.
Figure 30. Engaging the Front Panel Limiter
CAUTION!
MAKE SURE THE SWITCH IS OFF (POWERED OFF) BEFORE OPENING THE FRONT PANEL.
!
