Wiring Instructions
Installation Manual 52

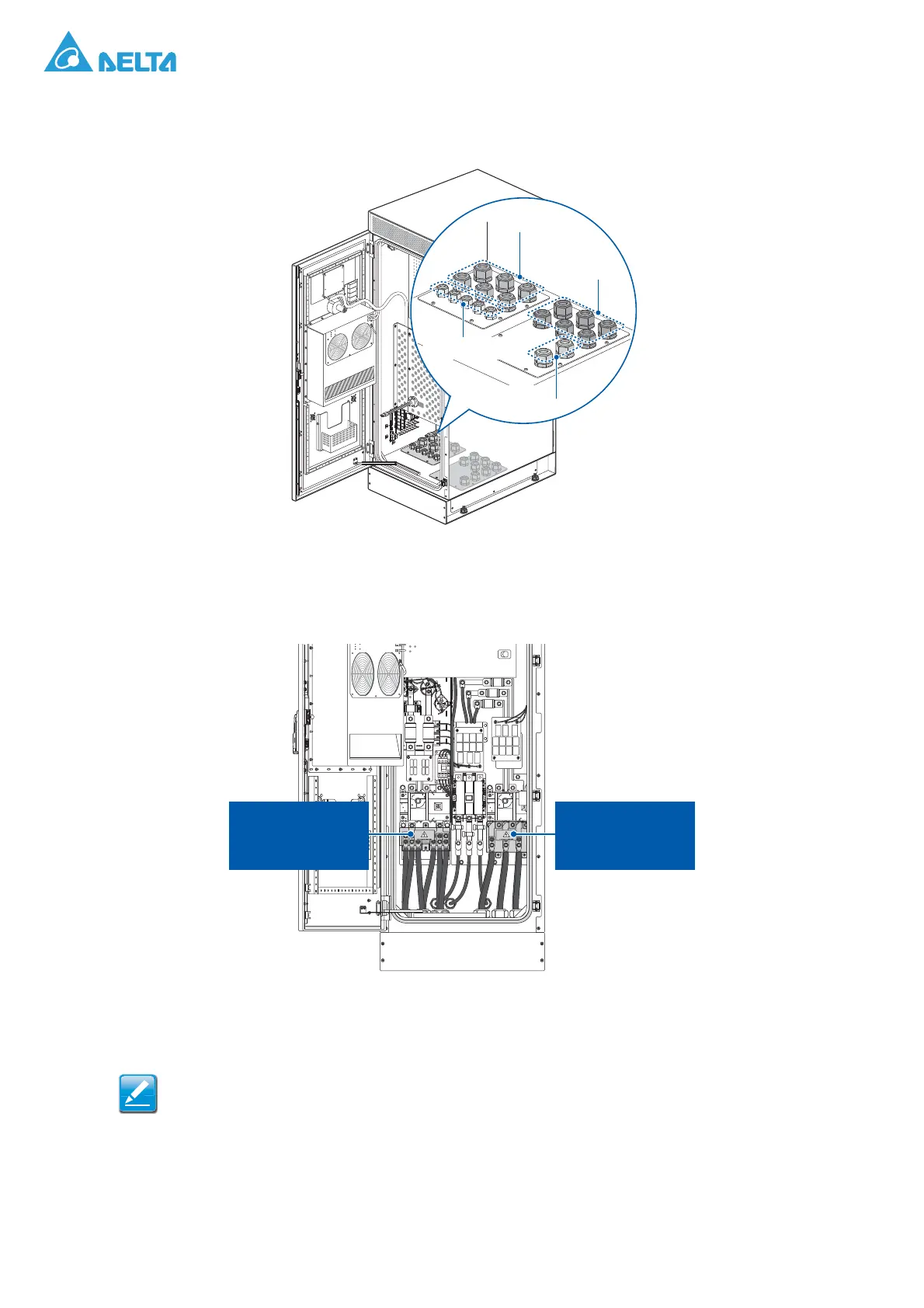

Inside the PCS cabinet, you will see several cable glands for DC, AC and communication wiring on the
bottom of the cabinet as shown below:
Figure 51. AC, DC, and Communication Wiring Cable Glands
Above the cable glands, several labels marked DC+, DC-, L1, L2, and L3 along with the protective
covers and relevant terminals are illustrated. See the following figure.
Figure 52. DC and AC Connection Labels and Terminals
Note:
There are 3 sets of Positive and Negative terminals for up to 3 Battery connections.
AC Cable Glands
(L1, L2, L3,
2 cables for each)
Grounding
Cable Glands (x2)
DC Cable Glands
(+/-, x3 sets)
Communication
and I/O Glands
ON
OFF
ON
OFF
AC Terminals with
Protective Cover
(L1, L2, L3)
DC Terminals with
Protective Cover
(3 for +, 3 for -)
