Introduction
Installation Manual 5
Introduction
Overview
Delta’s 100kW Power Conditioning System (PCS) is a bi-directional conversion system that converts
power between energy storage and grid, along with energy and grid power quality management
features.
It supports demand charge management by peak shaving, enables load shifting for time-of-use
savings, and provides real power and reactive power compensation to improve power quality.
With Delta’s PCS solution you can realize the fullest value of an energy storage system.

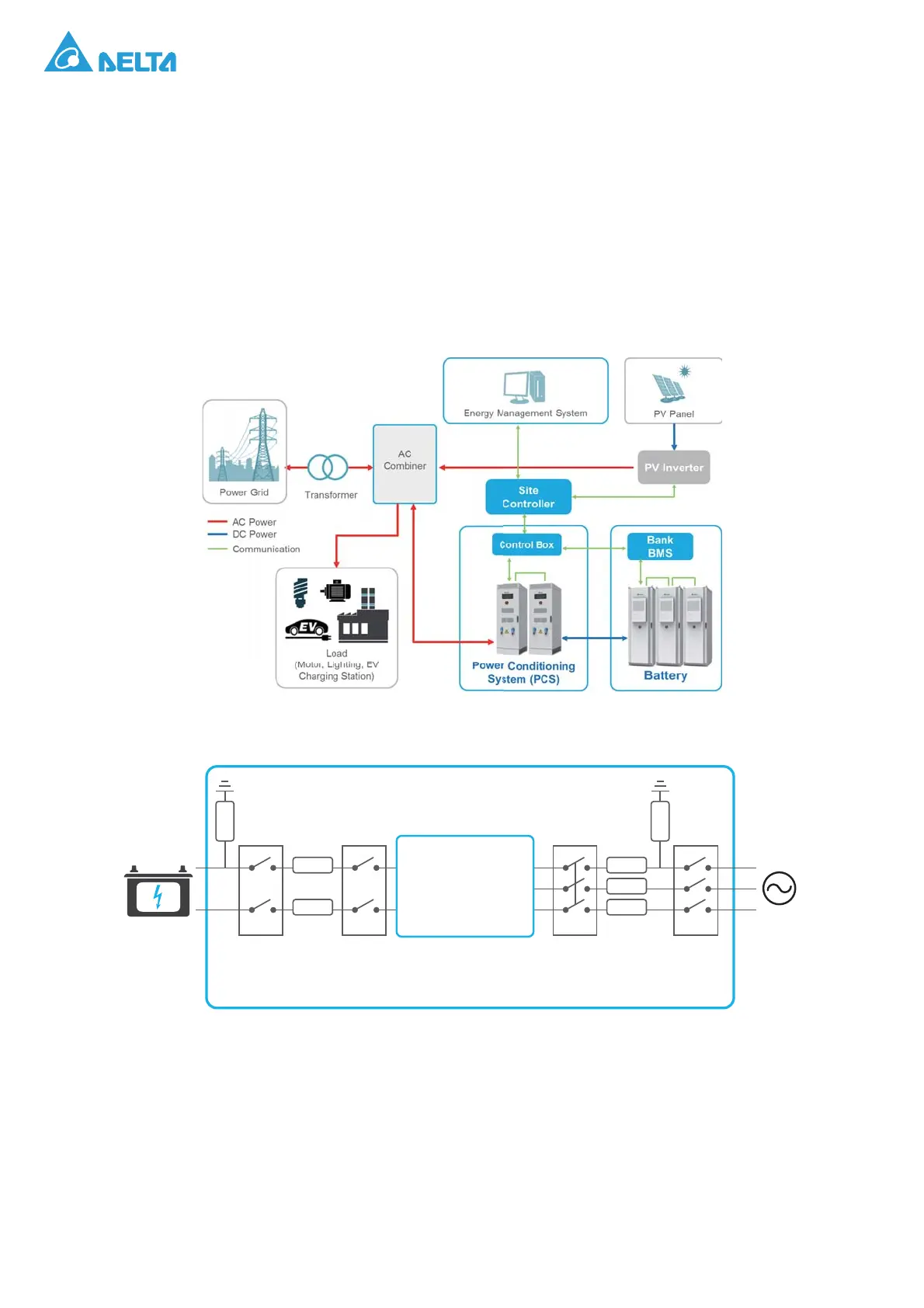

Figure 1. Typical PCS Application System Architecture
Figure 2. Delta 100kW PCS System Block Diagram
750-1000 Vdc
DC
Switch
DC
Fuse
AC
Fuse
400 Vac
3P-3W
L1
L2
L3
AC
Contactor
DC
Relay
SPD SPD
100kW Bi directional
DC/AC Inverter
Module
Grid
100kW PCS Cabinet
Battery
