Wiring Instructions
Installation Manual 44
Communication and I/O Wiring
Lead the wires with 15-pin, 6-pin and 3-pin connectors prepared for communication and I/O connection
through the front square hole of the unit base and through the wire glands in front of the DC cable
glands.
Plug these connectors into the relevant connector bases built-in at the inner side wall of the cabinet
adjacent to the DC terminals as the following figure:

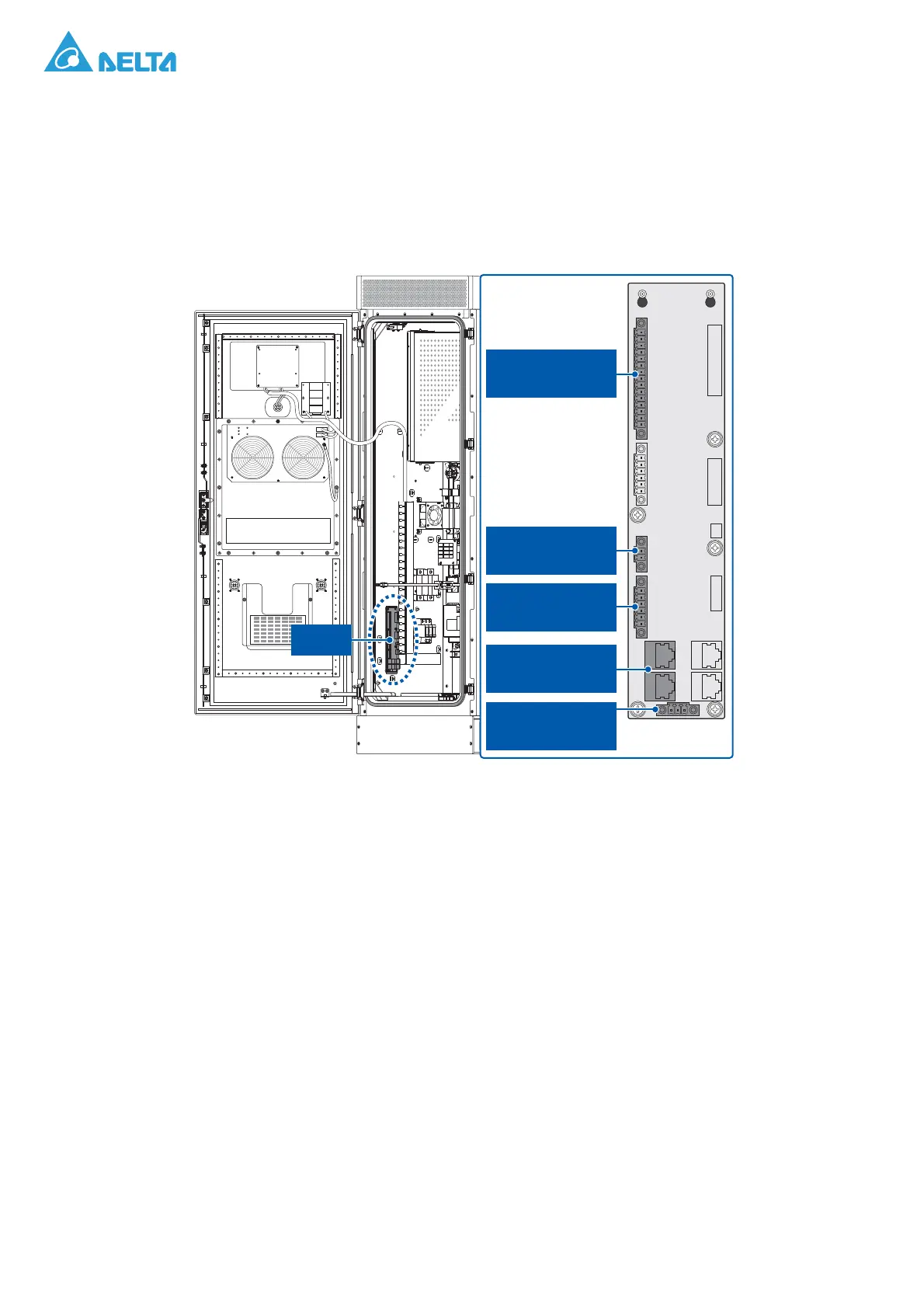

Figure 44. Communication and I/O Connection Location
15-pin Connector
(CNJ3)
2-pin Connector
(CNJ5)
6-pin Connector
(CNJ13)
RJ45 Connector
(CNJ11, CNJ12)
3-pin Connector
(CNJ7)
J BD
To Next Page
