Wiring Instructions
Installation Manual 51
Wiring
General Introduction
For wiring convenience, you can lead the cables and wires from the left, right, front or rear bottom side
of the unit into the cabinet.
The following sections will be described in the case of wiring from the front bottom side of the unit as an
example. As for the other cases, please remove the relevant side cover of the unit base to lead the
cables and wires into the cabinet.
To do the wiring works from the front bottom side of the PCS, first remove the front cover of the unit
base and the protective cover in the middle of the cabinet and with a Phillips screwdriver.

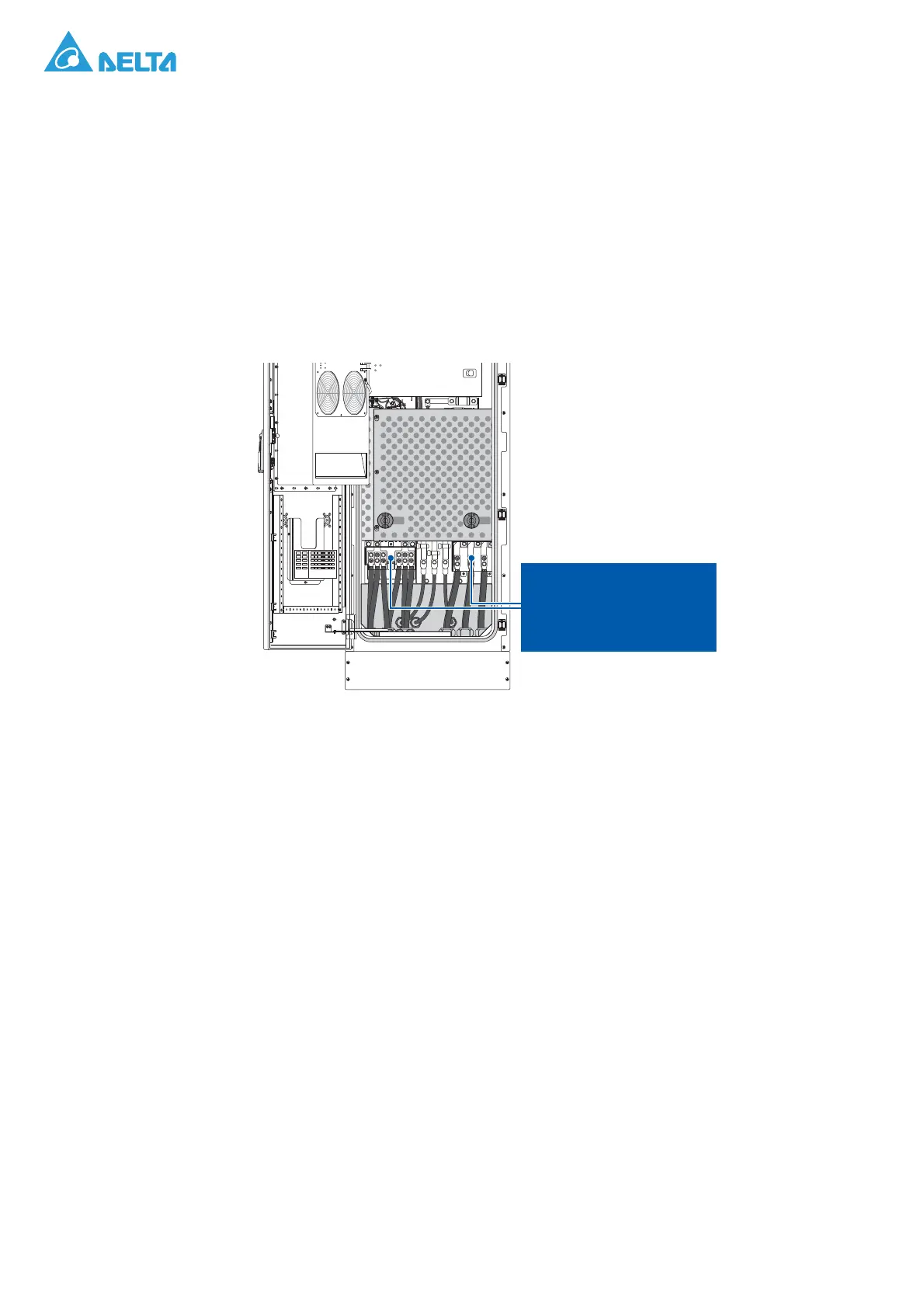

Figure 50. Remove the Front Cover of the Unit Base and the Protective Cover
ON
OFF
ON
OFF
Remove the front cover
of the unit base and
lead the wires/cables
into the cabinet form here
