Wiring Instructions
Installation Manual 40
3. Rotate the door handle to unlock the front panel.
4. Open the front panel open and swing it open until it locks in place.

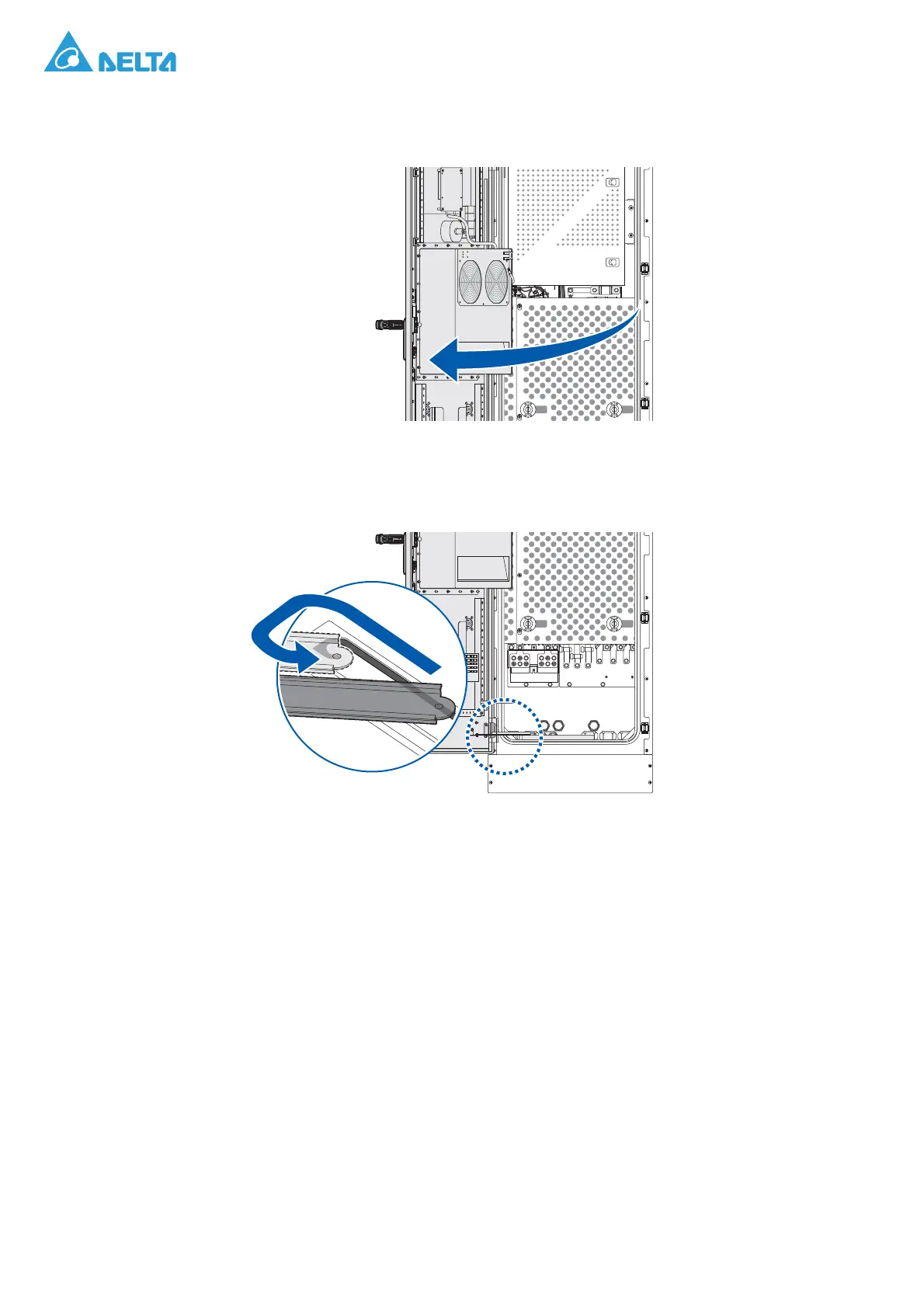

Figure 40. Opening a Front Panel
Make sure the door limiter at the bottom of the panel engages in the track to keep the front panel
from closing accidentally.
Figure 41. Engaging the Front Panel Limiter
The front panel locks in place when it is fully extended.
