9

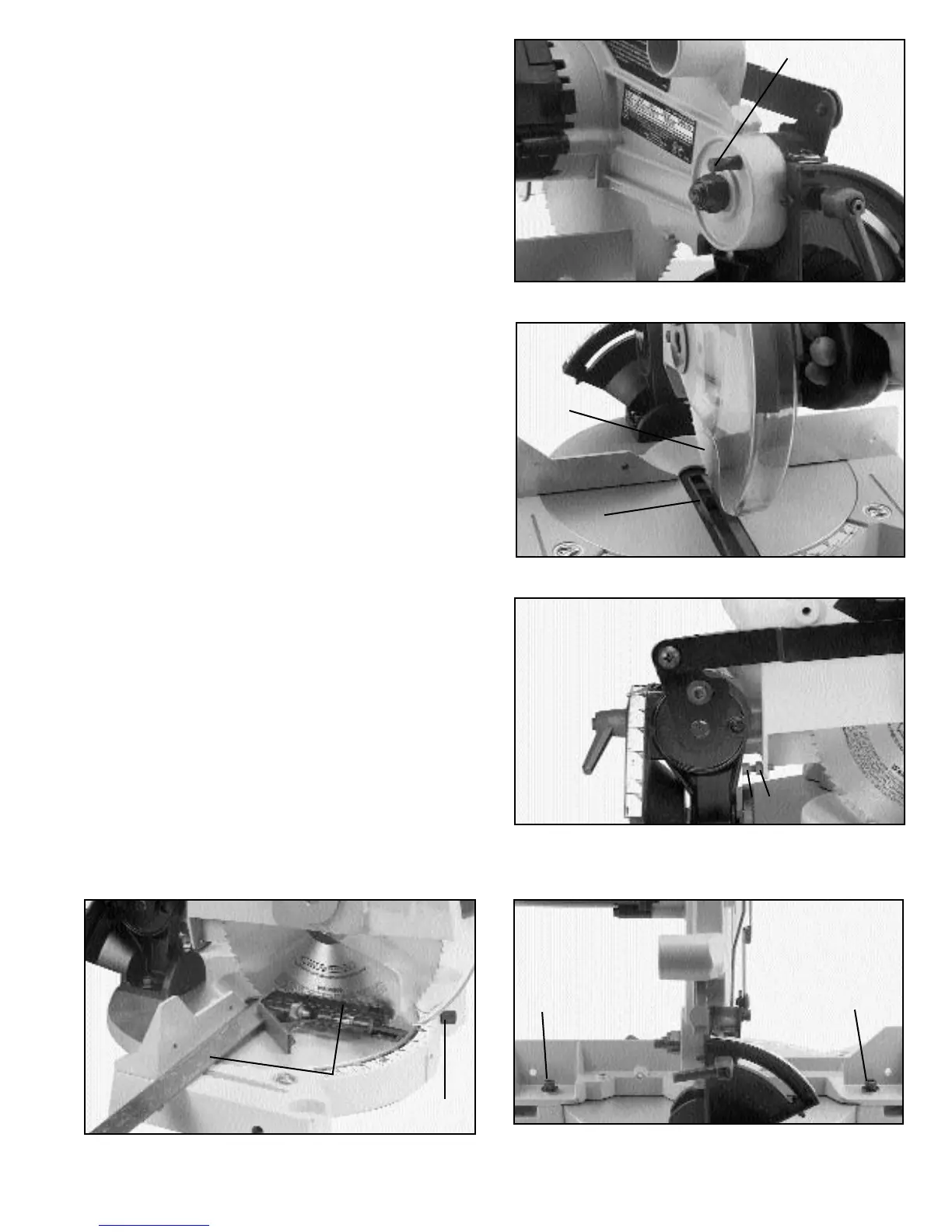

LOCKING CUTTING ARM
IN THE DOWN POSITION
When transporting the miter saw, the cutting arm should
always be locked in the down position. This can be
accomplished by lowering the cutting arm and pushing
in on arm locking pin (A) Fig. 16.
ADJUSTMENTS
ADJUSTING DOWNWARD TRAVEL
OF SAW BLADE ARM
Lower the saw blade arm as far as it will go and check
to see if the saw blade comes in contact with the table
insert. If the saw blade (A) Fig. 17, contacts the front
edge or the rear edge of table insert (B) on its downward
travel, proceed with the following adjustment.
1. MAKE CERTAIN THE MACHINE IS DISCONNECT-
ED FROM THE POWER SOURCE.
2. Loosen lock nut (C) Fig. 18, and turn adjustment knob
(D) right or left.
3. Lower the saw blade arm and check the adjustment.
NOTE: There should be a slight clearance between the
saw blade (A) Fig. 17, and table insert (B) as shown.
Repeat STEP 2, if necessary.
4. Tighten lock nut (C) Fig 18, after adjustment is made.
ADJUSTING FENCE 90 DEGREES
TO BLADE
1. DISCONNECT THE MACHINE FROM THE POWER
SOURCE.
2. Place the cutting arm in the 90 degree straight cut-off
position, as shown in Fig. 19, and tighten the table lock
knob (A).
3. Lower the saw blade, as shown in Fig. 19.
4. Using a square (B) Fig. 19, place one end of the
square against the fence and the other end against the
blade, as shown.
5. Check to see if the blade is at 90 degrees to the fence.
6. If an adjustment is necessary, loosen the two screws
(C) Fig. 20, and adjust the fence until it is 90 degrees to
the blade. Then tighten two screws (C).
Fig. 16
Fig. 17
Fig. 18
Fig. 19
Fig. 20
A
B
A
DC
A
B
C
C
