16

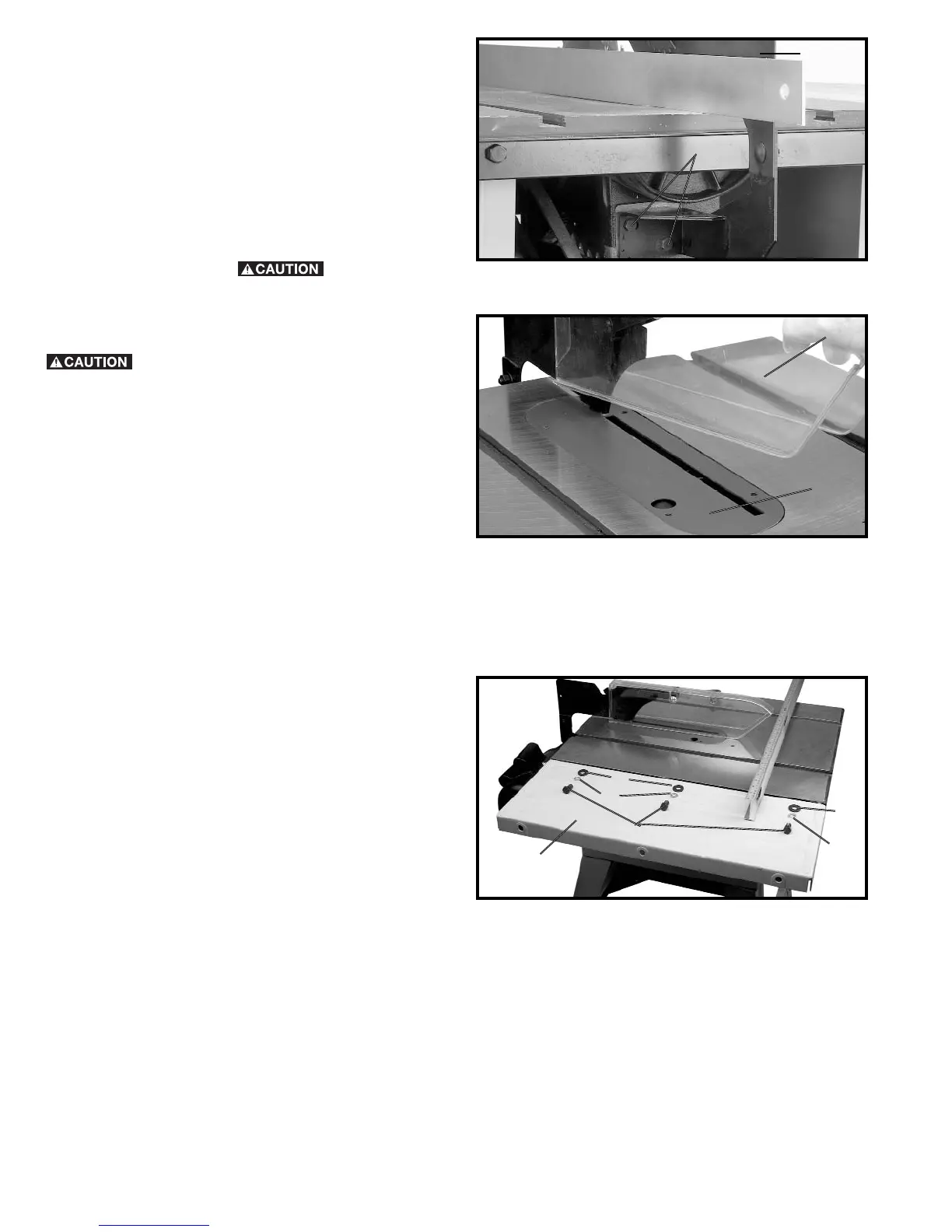

10. Using a straight edge, check to see if the saw blade
is aligned with the rear of the splitter (G), as shown in
Fig. 37. If alignment is necessary, loosen the screws (A)
Fig. 37, align splitter (G) with the saw blade, and tighten
two screws (A).
11. Lower saw blade and install table insert (P) Fig. 38,
in the saw table as shown. THE TABLE
INSERT SHOULD BE LEVEL WITH THE TABLE
SURFACE. IF AN ADJUSTMENT IS NECESSARY, SEE
THE SECTION “ADJUSTING TABLE INSERT”.
When installing the table insert, always
make certain to hold on to the blade guard (L). The insert
will automatically release the holding action on the
splitter and lower the blade guard when it is installed in
the table opening.
Fig. 37
G
A
Fig. 38
L
P
EXTENSION WINGS
1. Assemble extension wing (A) Fig. 39, to the saw
table. Align the three holes in the extension wing with the
three holes in the side of the saw table. Place a 7/16"
lockwasher (C) Fig. 39, onto a 7/16-20x3/4" hex head
screw (B), place a 7/16" flat washer (D) onto the hex
head screw. Insert the screw through the hole in the
extension wing and thread the screw into the tapped
hole in the side of the saw table. Repeat this process for
the two remaining holes in the extension wing and the
saw table.
2. With a straight edge (E) Fig. 39, make certain the
extension wing (A) is level with the saw table before
tightening three screws (B).
3. Assemble the other extension wing to the opposite
end of the saw table in the same manner.
Fig. 39
A
B
C
C
D
D
