Chapter 3 Wiring ASDA-A2
3-56 Revision February, 2017

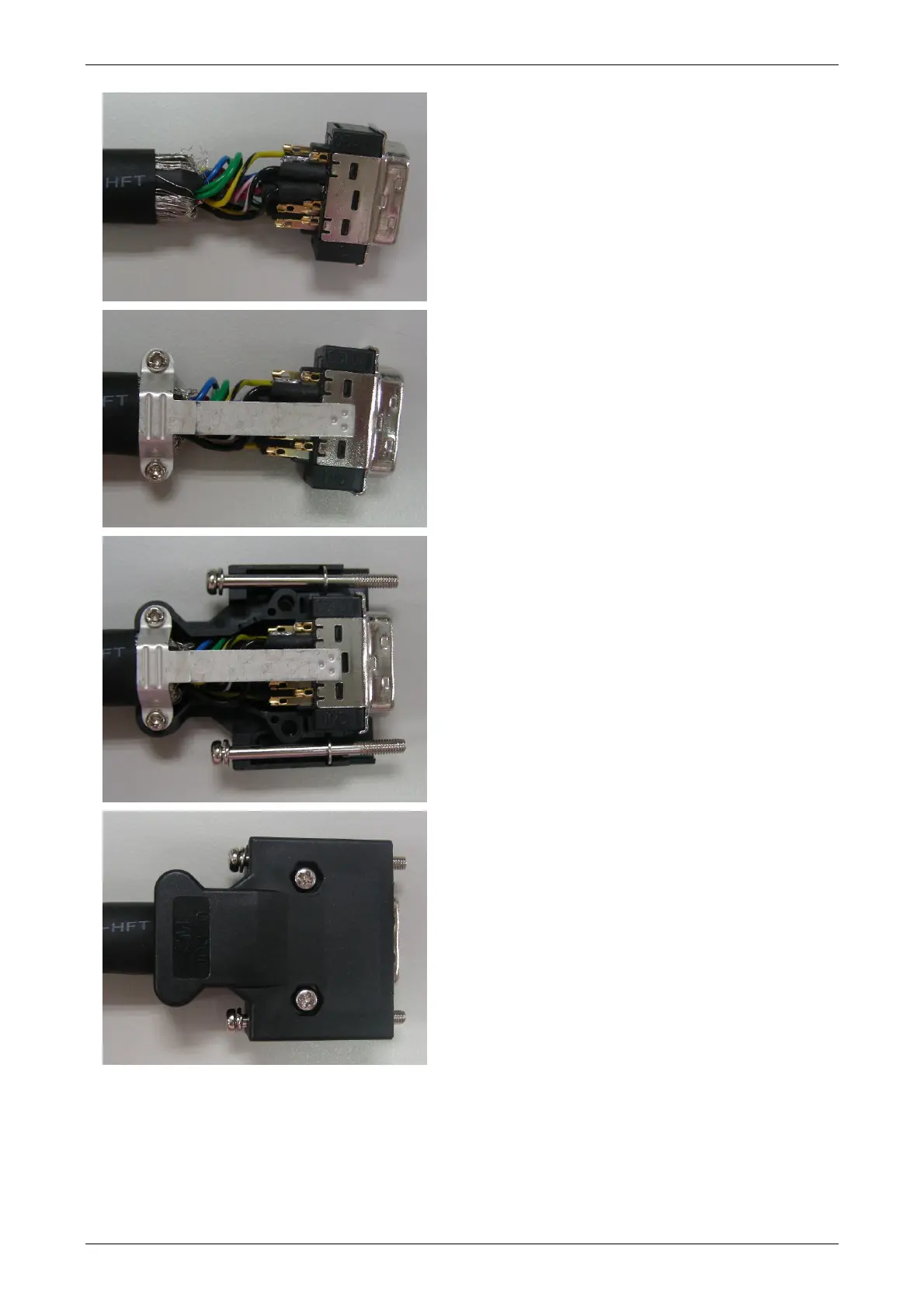

(3) Leave a length of 5~10mm metal core wires
with shielding outside of the cable. The length
is about the width of the metal saddle. The
other unexposed wires of the cable should be
protected by heat shrink tube for good ground
contact.
(4) Install a metal saddle to fix the exposed metal
core wires. The metal saddle must completely
cover all the exposed metal core wires. The
extended sheet metal should be connected to
the metal part of the connector.
(5) Install the connector with shielding into the
plastic case as shown in the figure.
(6) Tighten the screws to complete a shielded
CN2 connector.
