12.1.3 Connection Cables for Absolute Encoder

A. Quick Connector

Delta part number: ASD-A2EB0003, ASD-A2EB0005

Title Model Name

mm inch

1 ASD-A2EB0003

3000  100 118  4

2 ASD-A2EB0005

5000  100 197  4

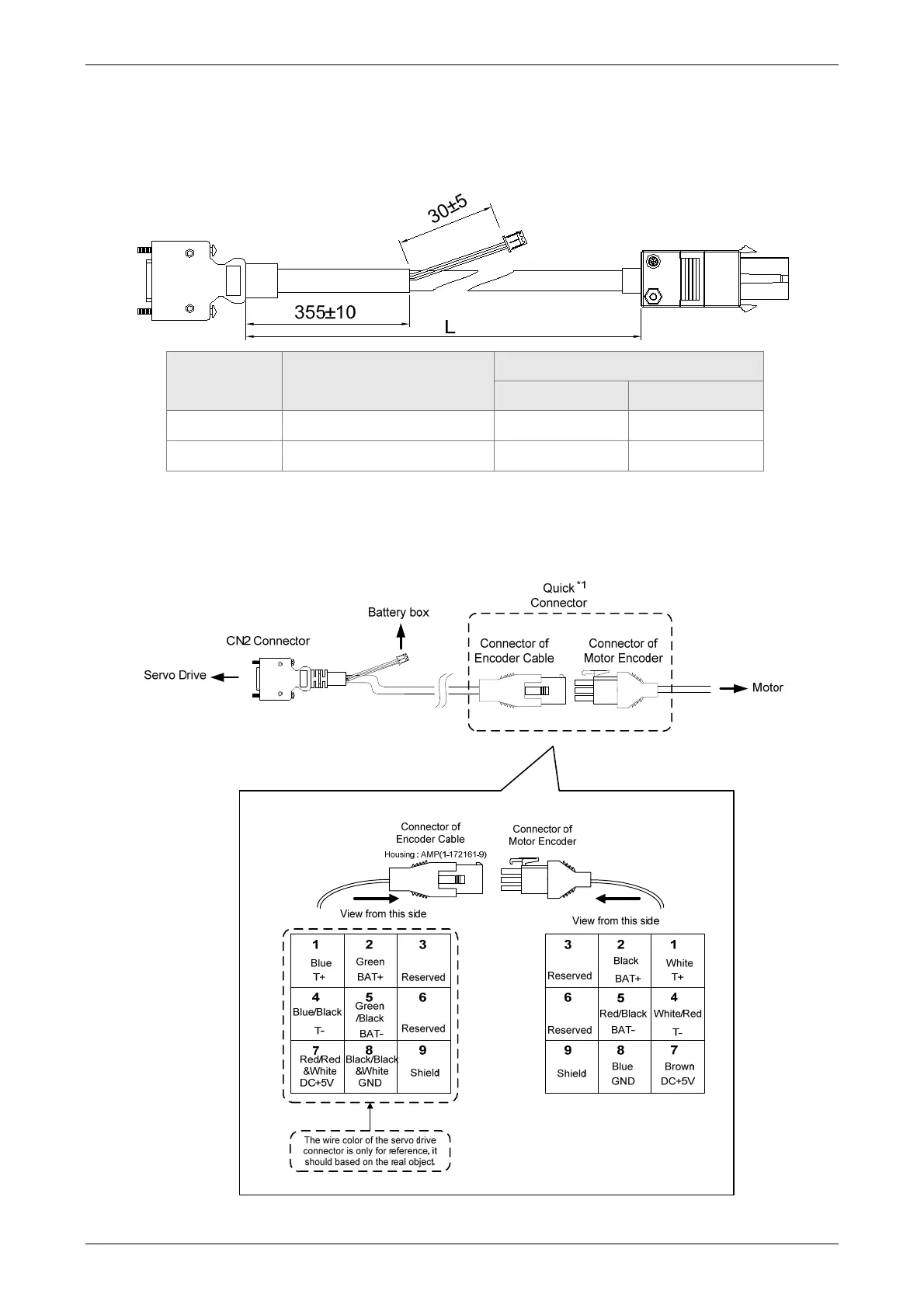

Connection method:

Please conduct the wiring according to the following instructions. Wrong wiring might

cause battery explosion.
