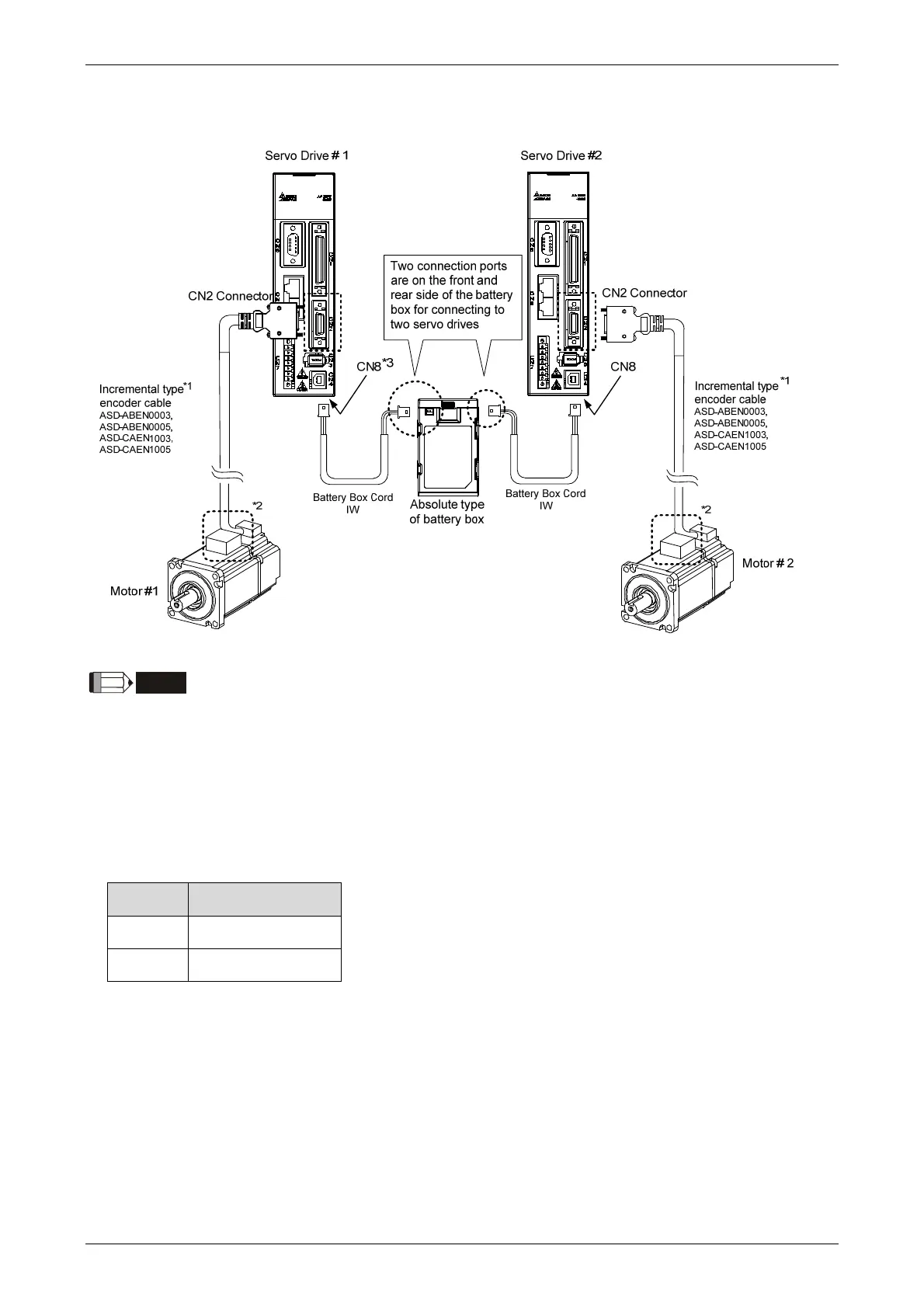

Dual Battery Box (Connect to CN8)
NOTE
This is the wiring diagram for connecting to a single battery box. The scale of the objects does not
match the dimensions as shown in the drawing above. For different models of AC servo drives and
motors, the connection cables may differ.
1* and 2* Please refer to section 12.1.3.
3* Definition of CN8 connector
Please conduct the wiring according to the following instructions. Wrong wiring might
cause battery explosion.
Pin No Terminal Symbol
1 BAT+
2 BAT-
