Delta ASD-A2R-1B43 Series User Manual

Appendix A AccessoriesASDA-A2R Series
Revision December, 2014
A-5

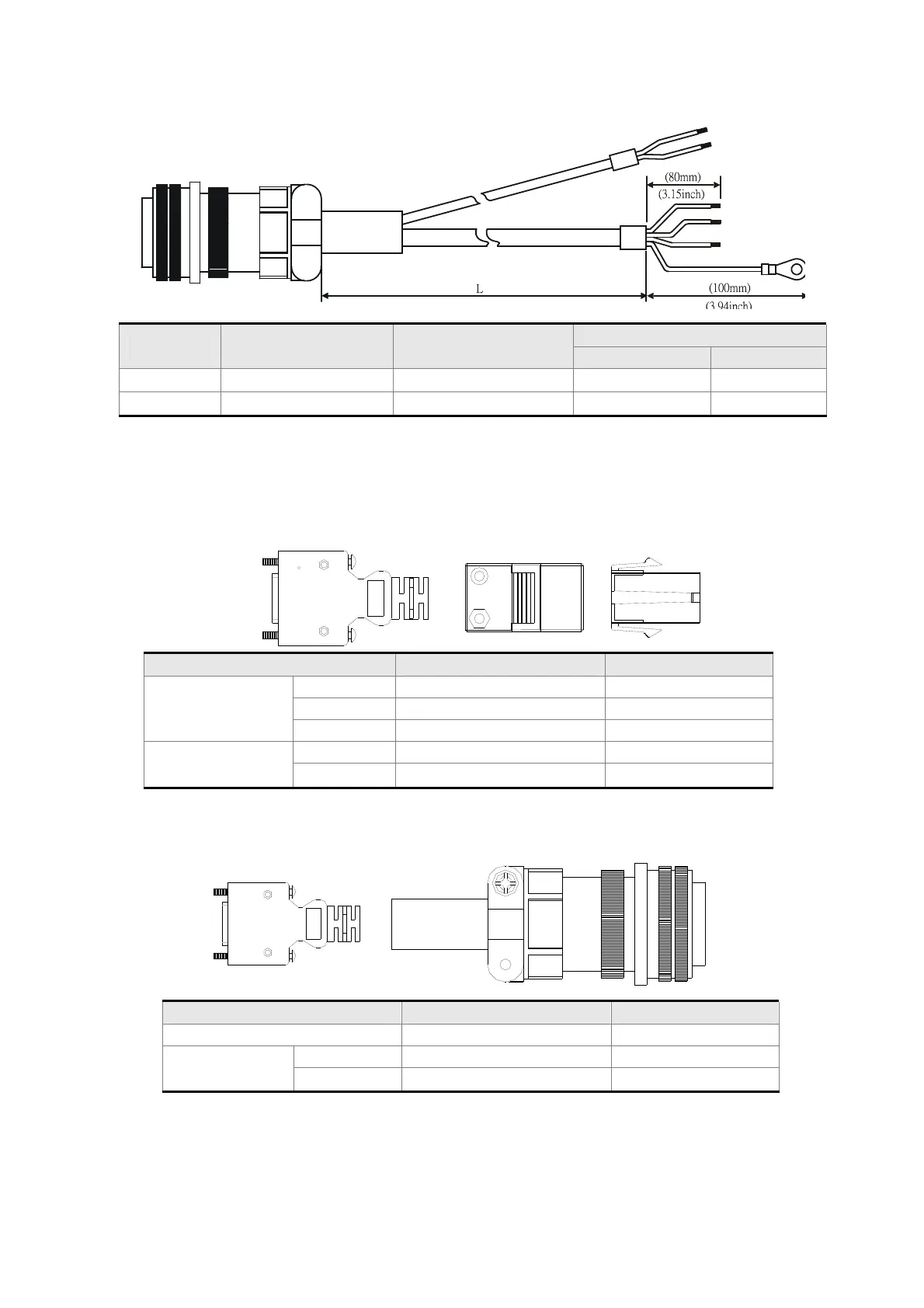

Delta Part Number: ASD-CAPW2103, ASD-CAPW2105
Title Part No. Straight
L
mm inch
1 ASD-CAPW2103 3106A-24-11S
3000  100 118  4
2 ASD-CAPW2105 3106A-24-11S
5000 100 197  4
 Encoder Connector
Delta Part Number: ASD-ABEN0000
Title Part No. Manufacturer
MOTOR SIDE
Housing AMP (1-172161-9) AMP
Terminal AMP (170359-3) AMP
CLAMP DELTA (34703237XX) DELTA
DRIVE SIDE
PLUG 3M 10120-3000PE 3M
SHELL 3M 10320-52A0-008 3M
Delta Part Number: ASD-CAEN1000
Title Part No. Manufacturer
MOTOR SIDE 3106A-20-29S -
DRIVE SIDE
PLUG 3M 10120-3000PE 3M
SHELL 3M 10320-52A0-008 3M
