Chapter 3 Wiring ASDA-A2R Series
Revision December, 2014
3-5
3.1.3 Wiring Method
The wiring method of ASDA-A2R servo drive is divided into single-phase and
three-phase. In the diagram below, Power On is contact a, Power Off and ALRM_RY are
contact b. MC is the coil of magnetic contactor and self-remaining power and is the
contact of main power circuit.

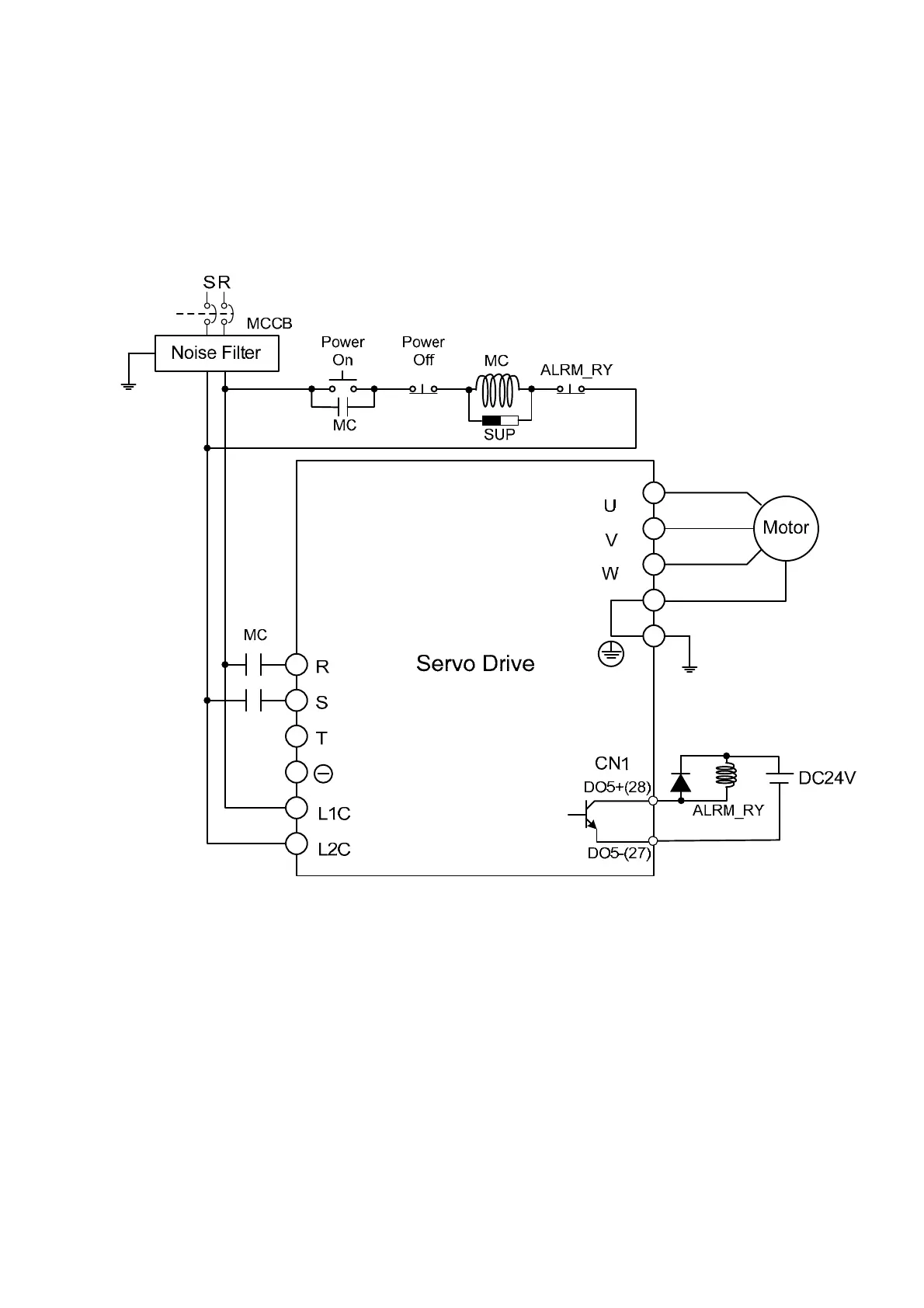

Wiring Method of Single-phase Power Supply (suitable for 1.5 kW and models below
1.5 kW)
To Next Page
