3.4 CN2 Connector
The terminal block of the connector and pin number are as follows:

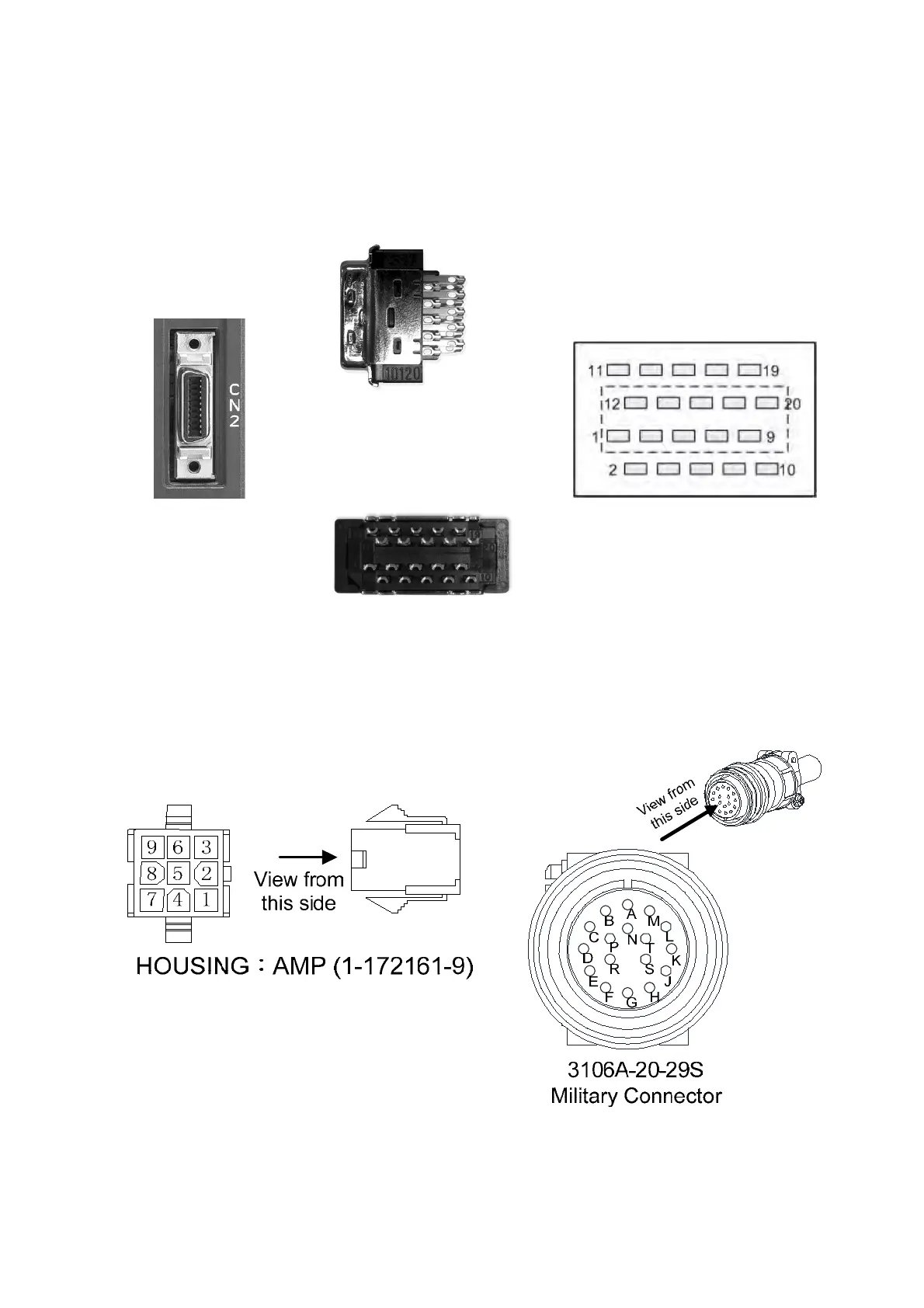

(A) Encoder Connector:
CN2
Connector
(female)
Side view
CN2 Rear view of the
terminal block
Rear view
(B) Motor Connector:
Quick Connector
