Delta ASD-A2R-1B43 Series User Manual

Appendix A AccessoriesASDA-A2R Series
Revision December, 2014
A-7

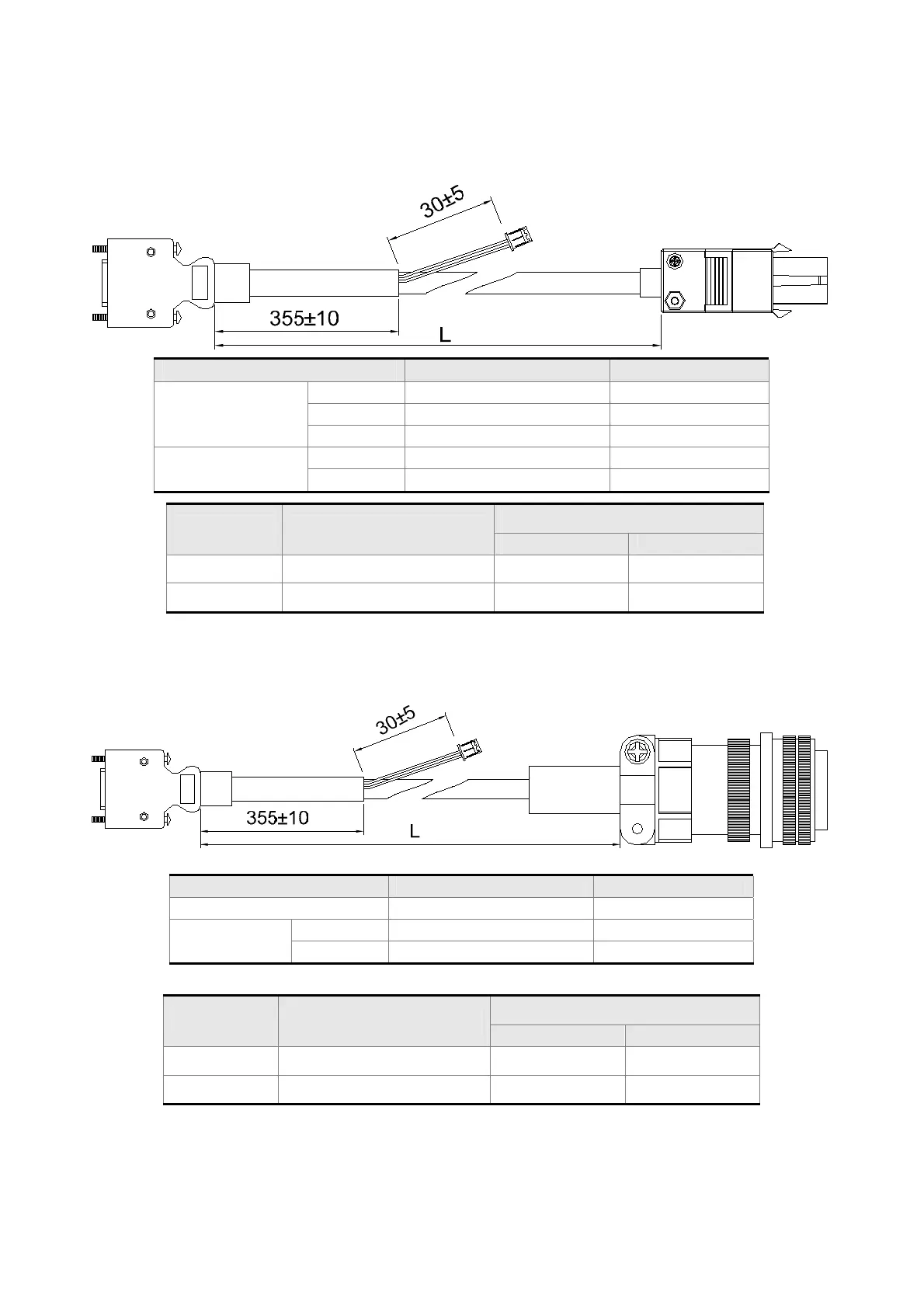

 Encoder Cable (Absolute type)
Delta Part Number: ASD-A2EB0003, ASD-A2EB0005
Title Part No. Manufacturer
MOTOR SIDE
Housing AMP (1-172161-9) AMP
Terminal AMP (170359-3) AMP
CLAMP DELTA (34703237XX) DELTA
DRIVE SIDE
PLUG 3M 10120-3000PE 3M
SHELL 3M 10320-52A0-008 3M
Title Model Name
L
mm inch
1 ASD-A2EB0003
3000  100 118  4
2 ASD-A2EB0005
5000  100 197  4
Delta Part Number: ASD-A2EB1003, ASD-A2EB1005
Title Part No. Manufacturer
MOTOR SIDE 3106A-20-29S -
DRIVE
SIDE
PLUG 3M 10120-3000PE 3M
SHELL 3M 10320-52A0-008 3M
Title Model Name
L
mm inch
1 ASD-A2EB1003
3000  100 118  4
2 ASD-A2EB1005
5000  100 197  4
