Chapter 10 Specifications ASDA-B2
10-24
Revision May, 2018

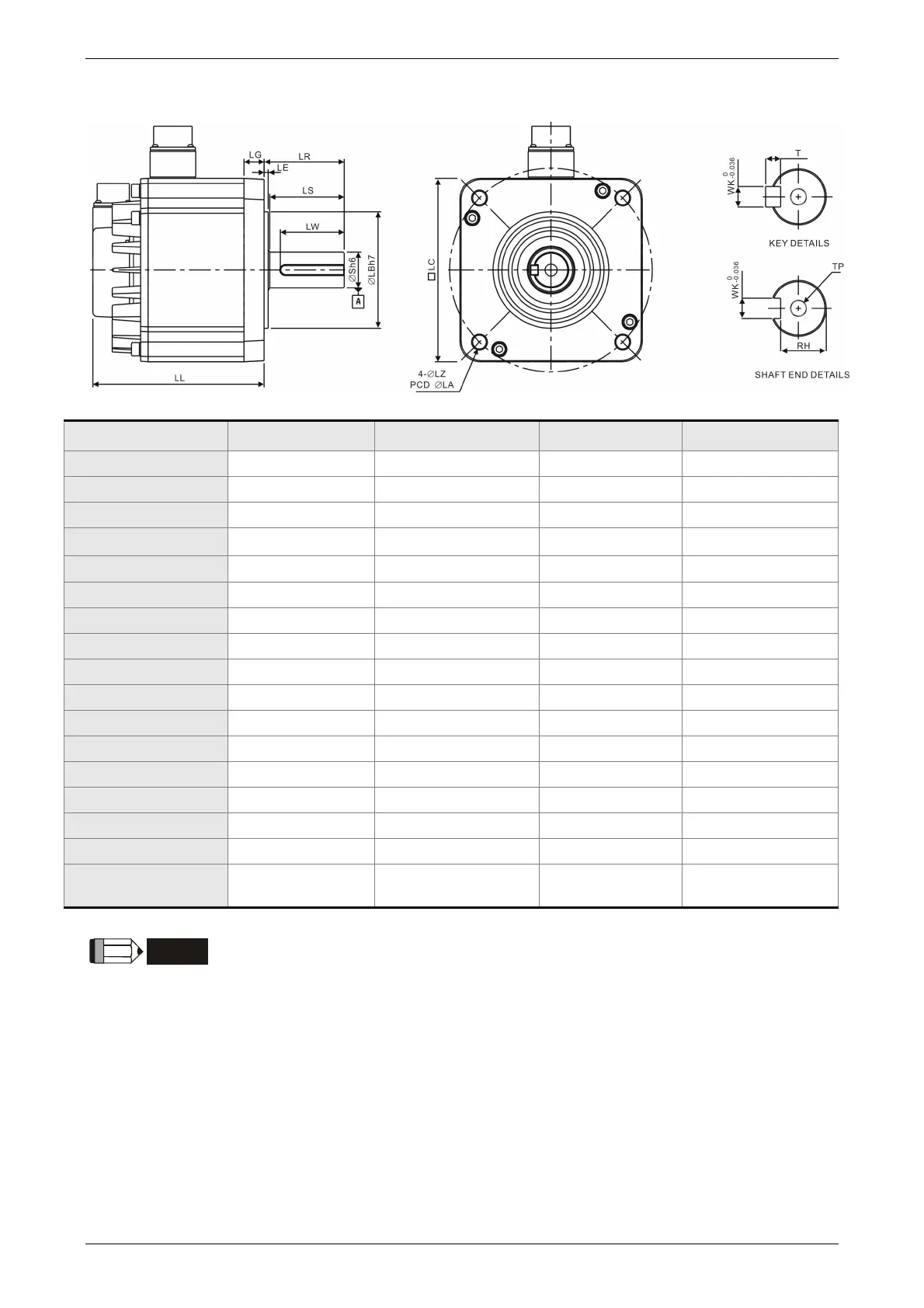

Motor Frame Size: 180 mm Models (Units: mm)
Model
E△1820□S E△1830□S
E△1835□ S
F△1830□S
LC 180 180 180 180
LZ 13.5 13.5 13.5 13.5
LA 200 200 200 200
S
)
(
.
35
0
0160
+
++
+
−
−−
−
)
(
.
35
0
0160
+
++
+
−
−−
−
)
(
.
35
0
0160
+
++
+
−
−−
−
LB
)(.
.
3114
0
0350
+
++
+
−
−−
−
)(.
.
3114
0
0350
+
++
+
−
−−
−
)(.
.
3114
0
0350
+
++
+
−
−−
−
LL (without brake) 169 202.1 202.1 202.1
LL (with brake) 203.1 235.3 235.3 235.3
LS 73 73 73 73
LR 79 79 79 79
LE 4 4 4 4
LG 20 20 20 20
LW 63 63 63 63
RH 30 30 30 30
WK 10 10 10 10
W 10 10 10 10
T 8 8 8 8
TP
M12
Depth 25
M12
Depth 25
M12
Depth 25
M12
Depth 25
(1) Dimensions are in millimeters.
(2) Dimensions and weights of the servo motor may be revised without
prior notice.
(3) The boxes () in the model names are for optional configurations.
(Please refer to section 1.2 for model explanation.)
(4) Please refer to Chapter 1 for the boxes (
) in the model names
(which represents encoder type).
)
(
.
35
0
0160
+
−
)
(.
.
3114
0
0350
+
−
