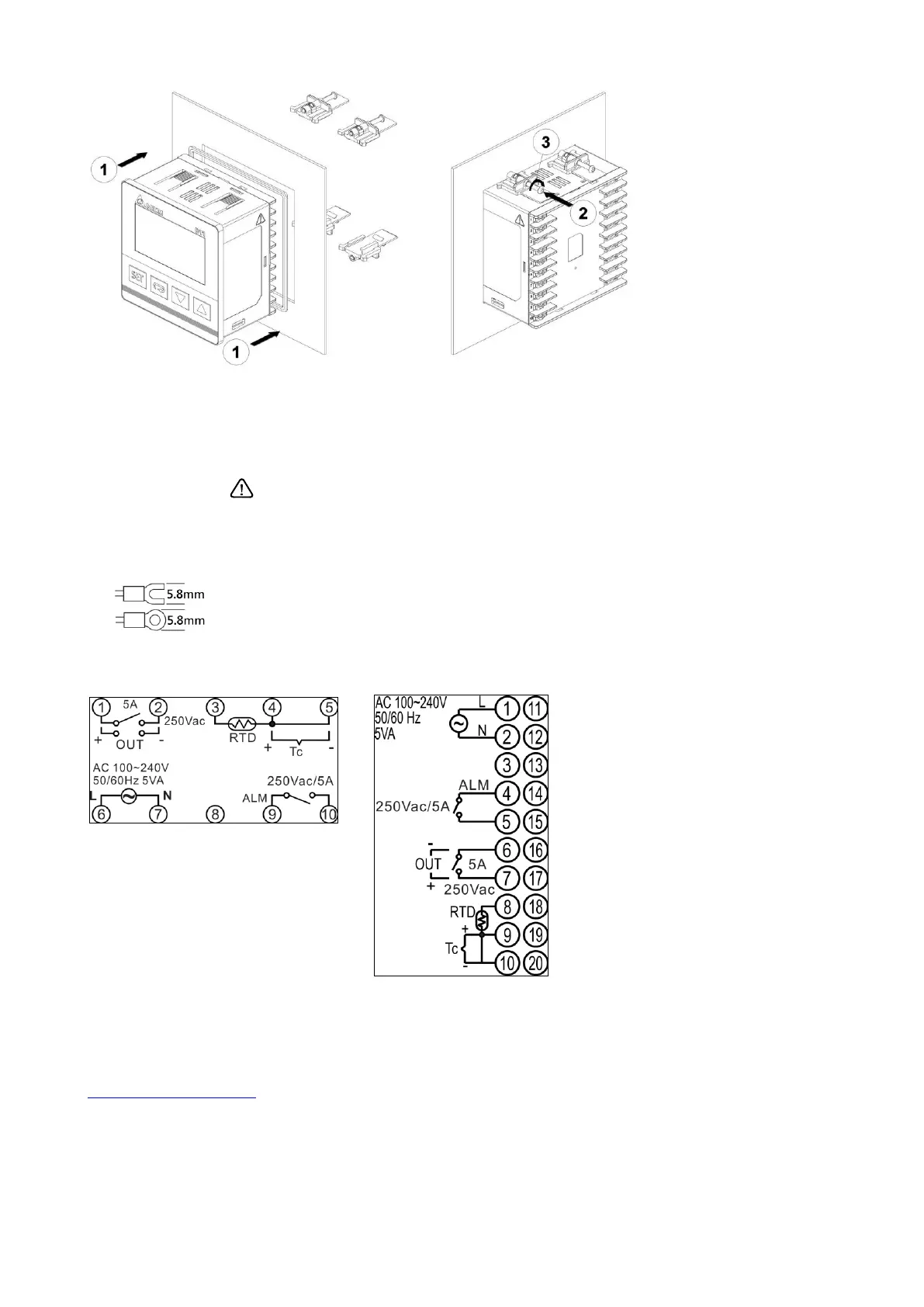

Wiring Diagrams and Precautions
Tighten the screw to the torque between 0.4 and 0.5N.m.
To avoid signal interference, it is suggested that the power cable and the signal cable to be set separately.
Please use solid wires between 14AWG/2C and 22AWG/2C. Maximum 300V and rated temperature to 105°C for input power pins.
The warning symbol on the case indicated the ports for power input pins 1 and 2. If the power supply is connected to other
ports, the controller will be burned, and personnel injury or fire may occur.
Please use relay output models within the rated load. Otherwise, the cable and crimp terminal may build up heat due to overload.
When the temperature exceeds 50°C, contact burning may occasionally occur.
Please use the crimp terminal of maximum 5.8 mm.
4848 series: 9696 series:
Prodcut Service
If you need more temperature controller information and technical support, please contact following website:
http://www.deltaww.com/ to download and contact region service window.
