Delta DVP-ES2

5 Temperature Measurement Module DVP 04TC-E 2

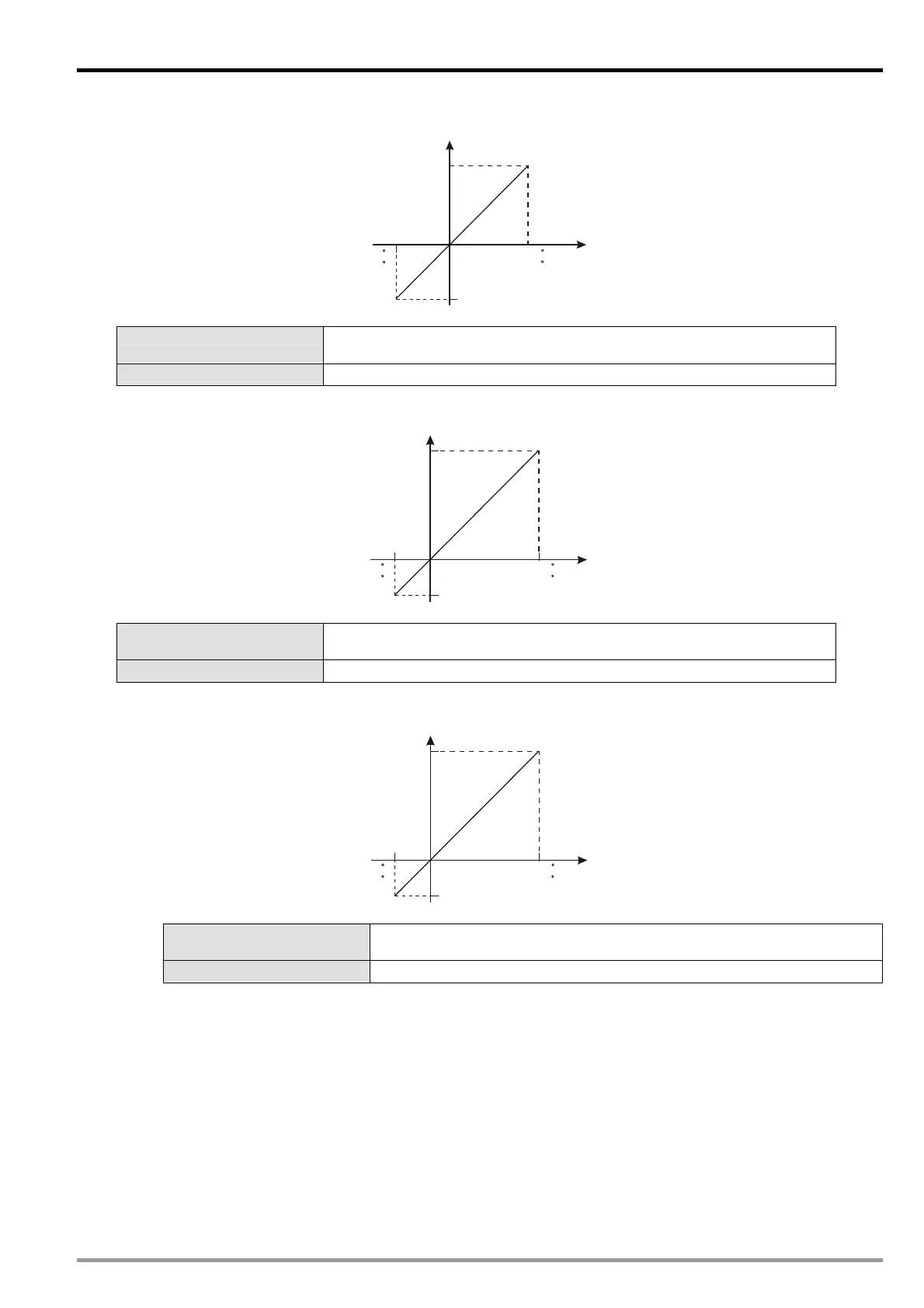

 Mode 4 (H’00
04): T-type, °C (°F)
+3900(7340)
-1500(-2380)
+390
-150
C
C
F)
(-238
F)
(+734
Measured
temperature
input
Digital output
Mode 4 of CR#2~ CR#5 -150°C ~ 390°C (-1500~3900)
-238°F ~ 734°F (-2380~7340)
Offset (CR#34 ~ CR#37) Offset value
 Mode 5 (H’0005): E-type, °C (°F)
+9800(17960)
-1500(-2380)
+980-150
C
C
F)
(-238
F)
(+1796
Measured
temperature
input
Digital output
Mode 5 of CR#2~ CR#5 -150°C ~ 980°C (-1500~9800)
-238°F ~ 1796°F (-2380~17960)
Offset (CR#34 ~ CR#37) Offset value
 Mode 6 (H’0006): N-type, °C (°F)
+12800(23360)
-1500(-2380)
+1280-150
C
C
F)
(-238
F)
(+2336
Measured
temperature
input
Digital output
Mode 6 of CR#2~ CR#5 -150°C ~ 1280°C (-1500~12800)
-238°F ~ 2336°F (-2380~23360)
Offset (CR#34 ~ CR#37) Offset value
DVP-ES2 Module Manual
5-13
