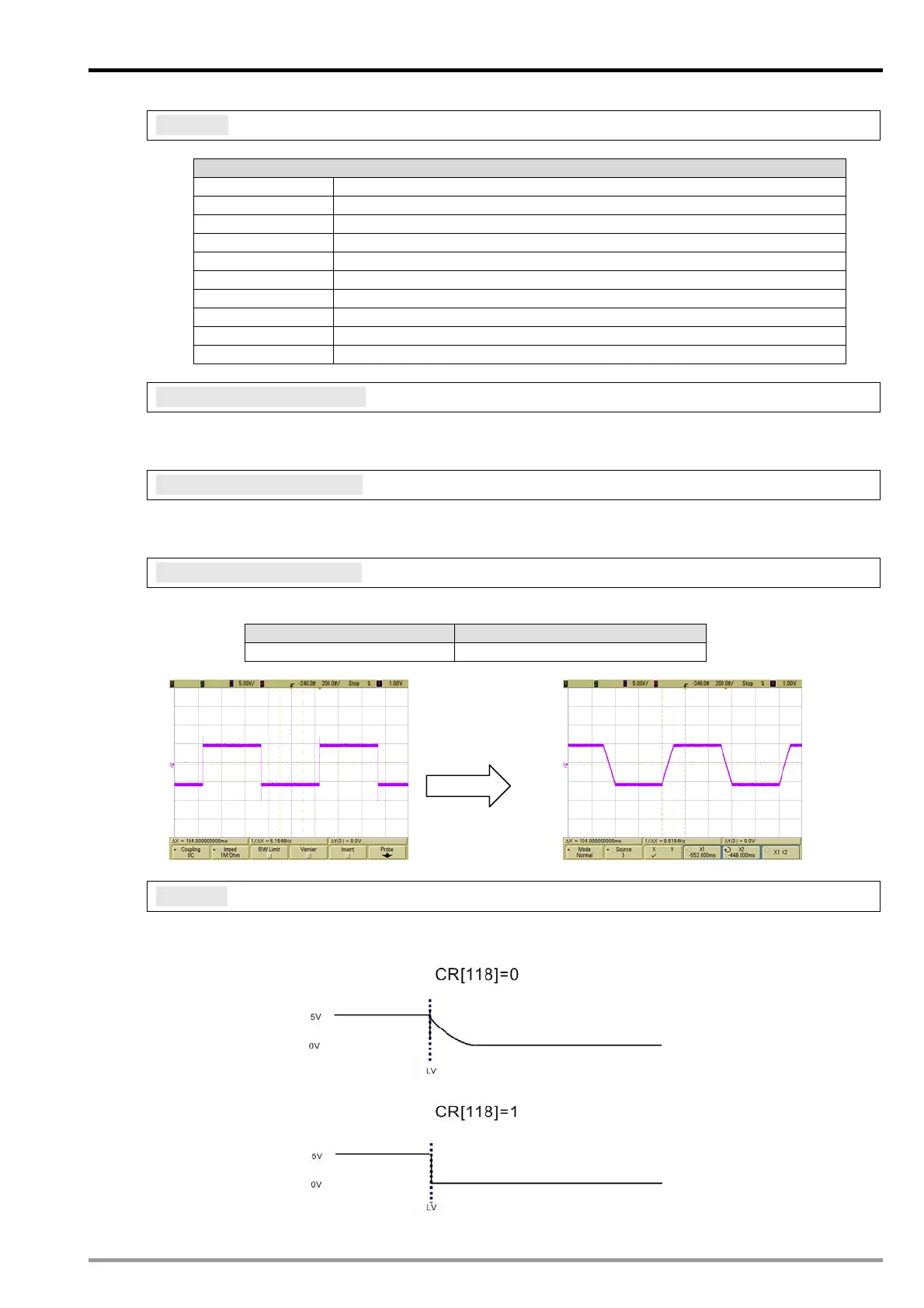

2 Analog Output Module DVP02DA-E2/DVP04DA-E2
CR#101: Upper and lower bound status
[Explanation]
Description
bit0=1 CH1 exceeds lower bound
bit1=1 CH2 exceeds lower bound
bit2=1 CH3 exceeds lower bound
bit3=1 CH4 exceeds lower bound
bit4 ~ bit7
Reserved
bit8=1 CH1 exceeds upper bound
bit9=1 CH2 exceeds upper bound
bit10=1 CH3 exceeds upper bound
bit11=1 CH4 exceeds upper bound
bit12 ~ bit15
Reserved
CR#102, 103, 104, 105: Set value of CH1 ~ CH4 upper bound
[Explanation]
Set the upper bound value of CH1 ~ CH4. Default: K32,000
CR#108, 109, 110, 111: Set value of CH1 ~ CH4 lower bound
[Explanation]
Set the lower bound value of CH1 ~ CH4. Default: K-32,000
CR#114, 115, 116, 117: Output update time of CH1 ~ CH4
[Explanation]
Unit: 100ms
Range Default
1~100 (0.1s~10s) 0(unavailable)
CR#118: LV output mode setting of CH1 ~ CH4. Default=0
[Explanation]
CR[118]=0: When the power is at LV (low voltage) condition, the output performs natural discharge.
CR[118]=1: When the power is at LV condition, set the output value as 0. See the curve below:
DVP-ES2 Module Manual
2-7
To Next Page
