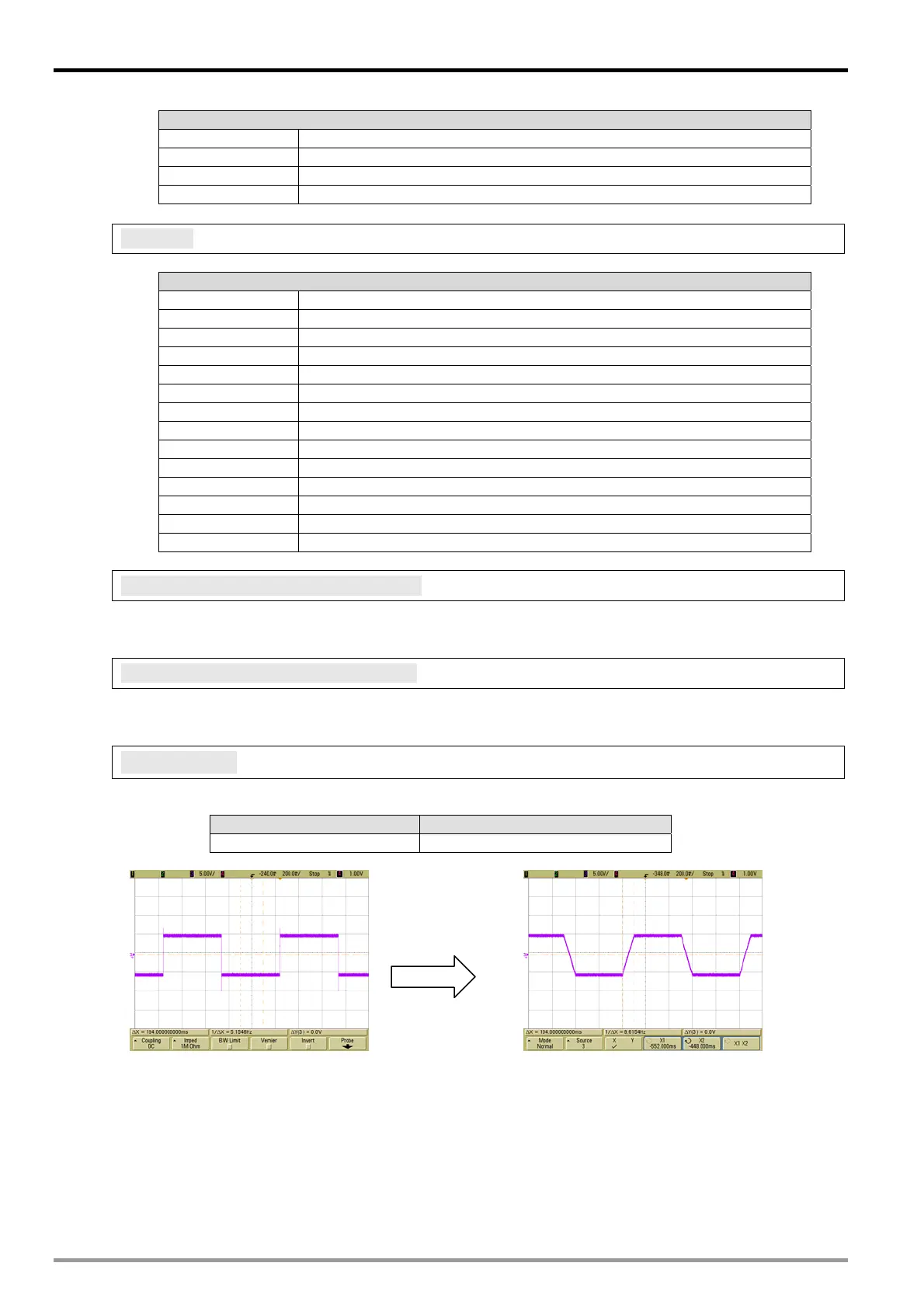

3 Mixed Analog Input/Output Module DVP06XA-E2
DVP-ES2 Module Manual
3-10
Description
bit6 ~ bit7
Reserved
bit8=1 Enable upper/lower bound limitation function on CH5.
bit9=1 Enable upper/lower bound limitation function on CH6
bit12 ~ bit15 Reserved
CR#101: Upper and lower bound status
[Explanation]
Description
bit0=1 CH1 exceeds lower bound
bit1=1 CH2 exceeds lower bound
bit2=1 CH3 exceeds lower bound
bit3=1 CH4 exceeds lower bound
bit4=1 CH5 exceeds lower bound
bit5=1 CH6 exceeds lower bound
bit6 ~ bit7
Reserved
bit8=1 CH1 exceeds upper bound
bit9=1 CH2 exceeds upper bound
bit10=1 CH3 exceeds upper bound
bit11=1 CH4 exceeds upper bound
bit12=1 CH5 exceeds upper bound
bit13=1 CH6 exceeds upper bound
bit14 ~ bit15 Reserved
CR#102, 103, 104, 105, 106, 107: Set value of CH1 ~ CH6 upper bound
[Explanation]
Set the upper bound value of CH1 ~ CH6. Default: K32,000
CR#108, 109, 110, 111, 112, 113: Set value of CH1 ~ CH6 lower bound
[Explanation]
Set the lower bound value of CH1 ~ CH6. Default: -32,000
CR#114, 115: Output update time of CH5~ CH
[Explanation]
Unit: 100ms
Range Default
1~100 (0.1s~10s) 0(unavailable)
