4 Temperature Measurement Module DVP 04PT-E2
3. You will then
see this window.

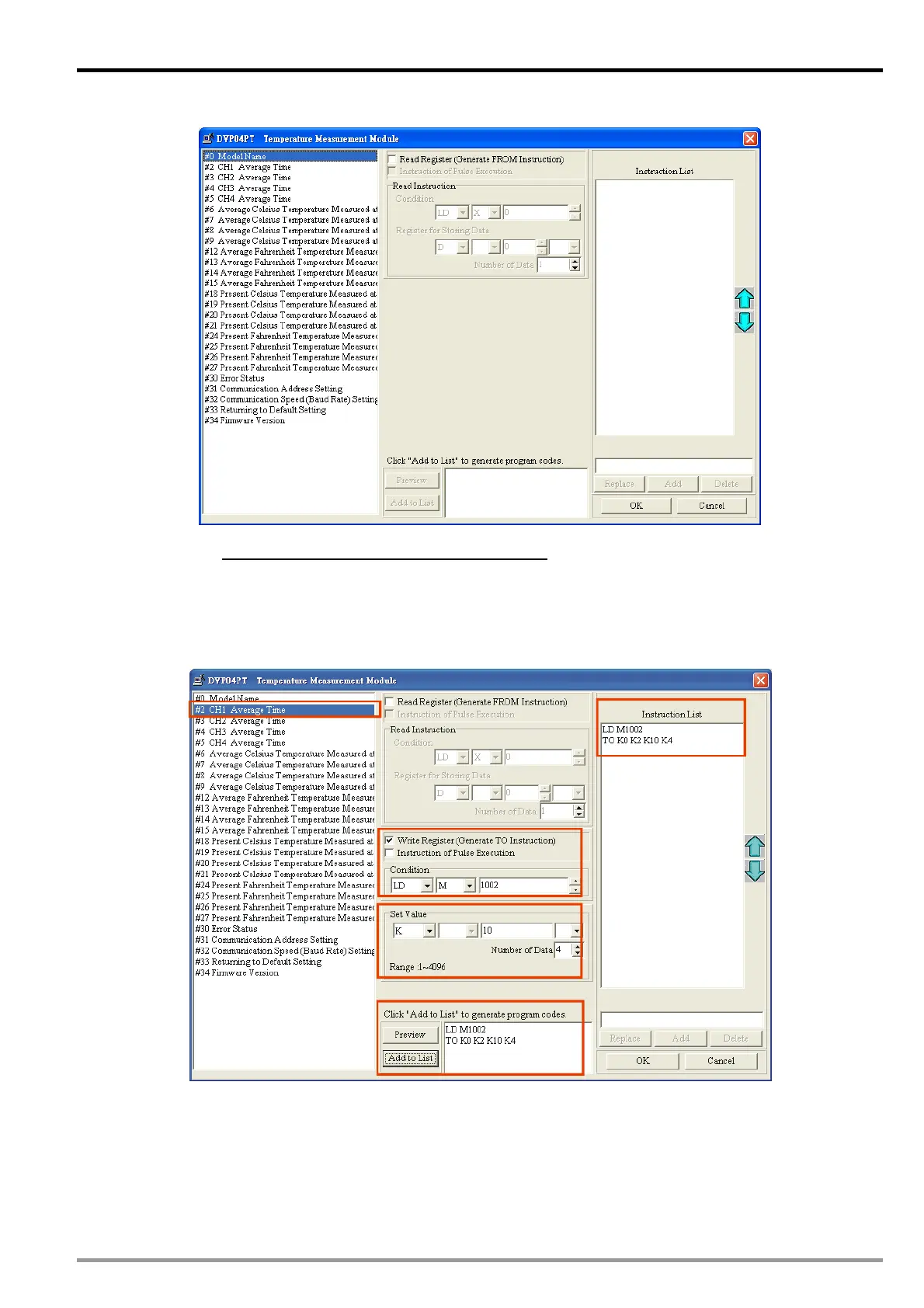

4. Next, let’s take 4.7.1 PT100 temperature measurement system
as example.
Step 1: Select “#2 CH1 Average times”.
Step 2: Check “Write Register” to generate TO instruction. Set the condition as “LD M1002”,
Step 3: Set the set value as “K10” and number of data as “4”.
Step 4: Click “Preview” to check if the generated program codes are correct.
Step 5: Click “Add to List” to display the instruction codes in “Instruction List”. The setup of CR#2 ~ CR#5 is
completed.
