4 Temperature Measurement Module DVP04PT-E2
5. Setting up CR#6 ~ CR#9 i
s similar to the setup of CR#2 ~ CR#5.

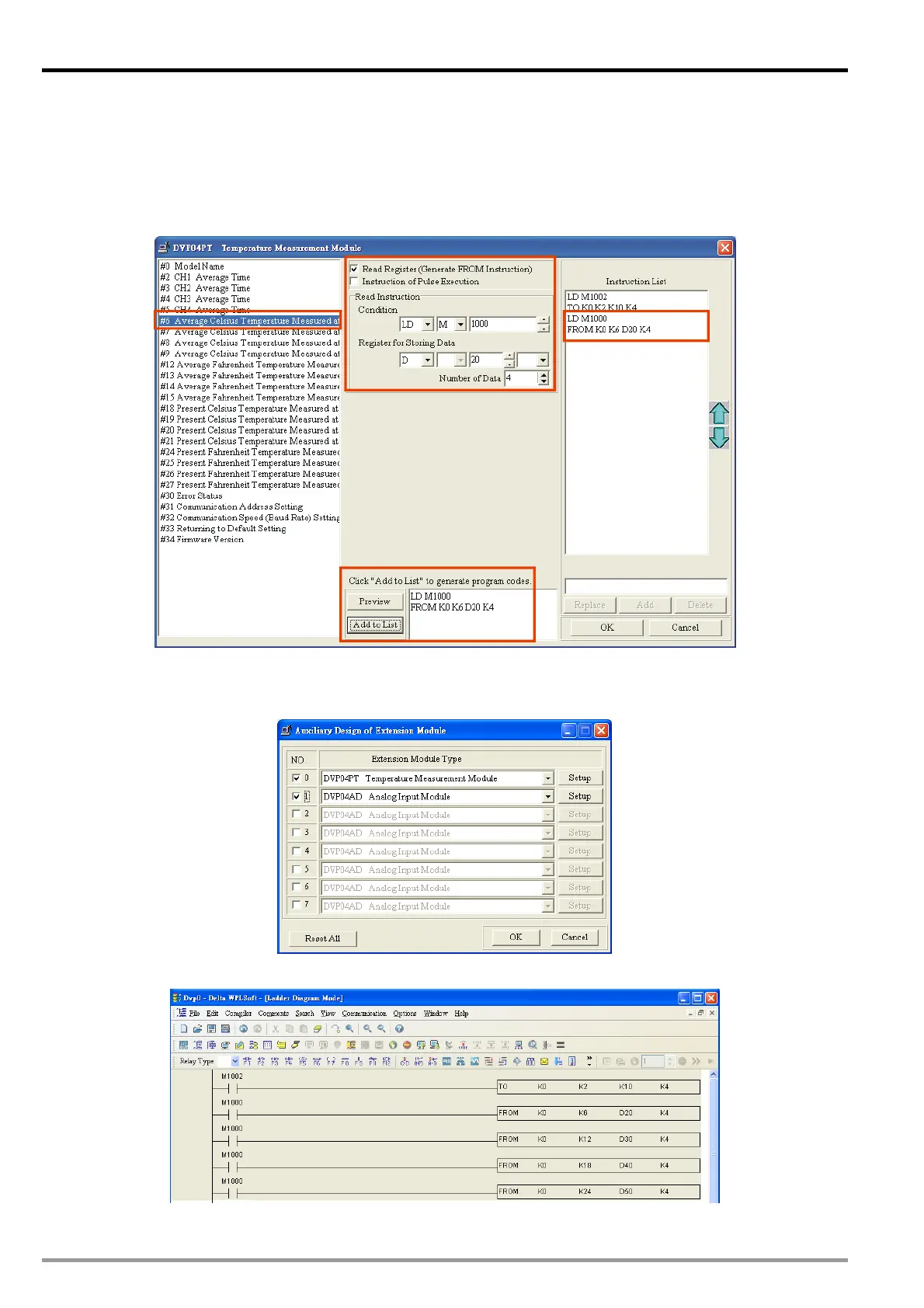

Step 1: Select "#6 Average Celsius Temperature Measured at CH1”
Step 2: Check “Read Register” to generate FROM instruction. Set the condition as "LD M1000”, register for
storing data as “D20” and number of data as “4”
Step 3: Click “Preview” to check if the generated program codes are correct.
Step 4: Click “Add to List” to display the instruction codes in “Instruction List”. The setup of CR#6 ~ CR#9 is
completed.
6. The setup of other CR# parameters can follow the steps illustrated above.
7. After you complete all the setups, click on “OK” to return to the “Auxiliary Design of Extension Module” window
and continue to set up other modules.
8. After you complete the setups of all the modules, click on “OK” to generate the program below.
DVP-ES2 Module Manual
-16
