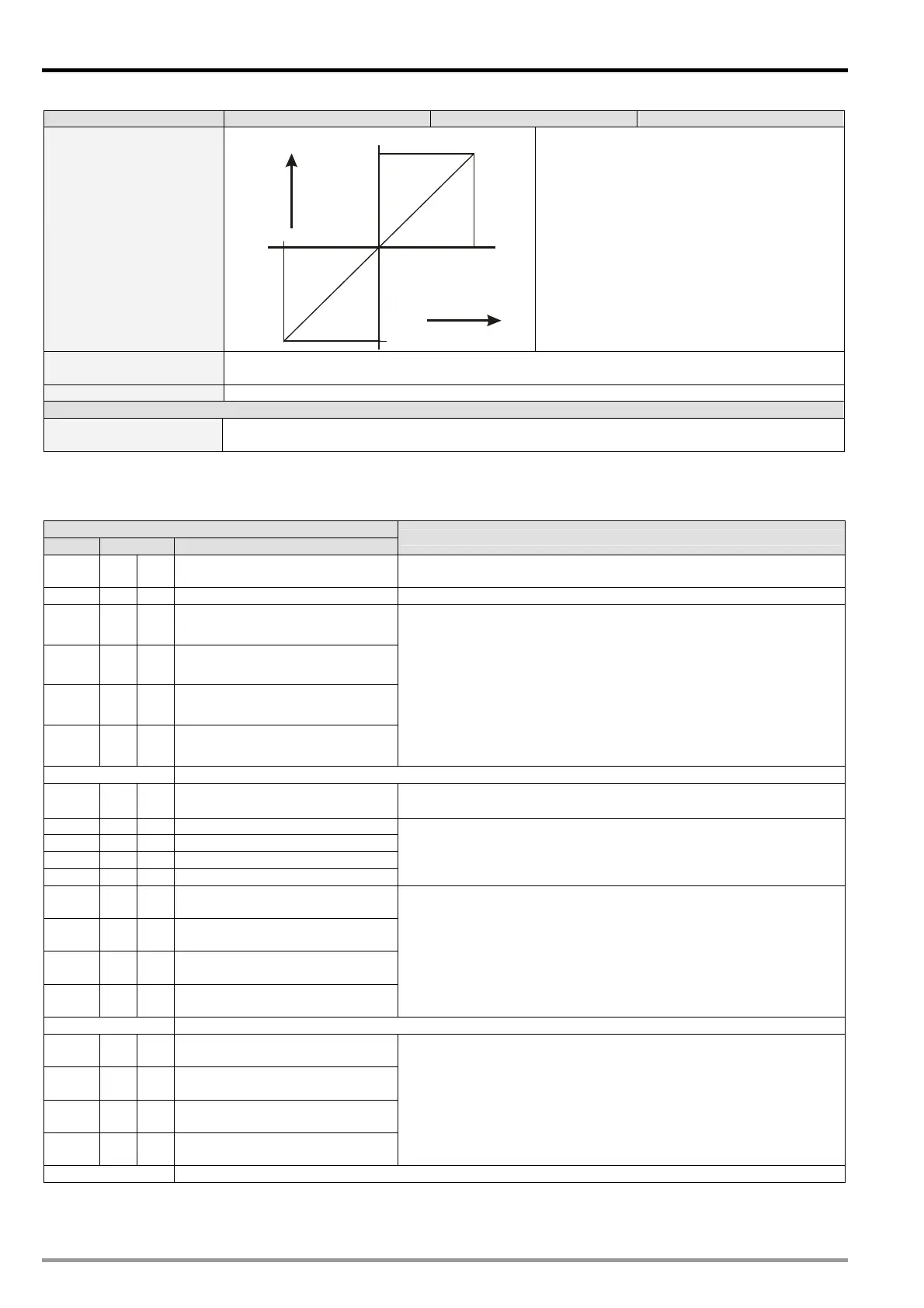

Delta DVP-ES2 - Page 93

5 Temperature Measurement Module DVP04TC-E2
DVP-ES2 Module Manual
-4
DVP04TC-E2 Celsius (°C) Fahrenheit (°F) Voltage input
Temperature / d i gita l curve
(Default: Mode 0)
Mode 7 (H’0007): -80mV~+80mV
Voltage input
+8000
80mV
-8000
-80mV
Digital
output
Mode -1 (H’FFFF): Channel unavailable.
Average value and present value of input
channels will be displayed as 32,767(H’7FFF)
Operation/storage
1. Operation: 0°C ~ 55°C (temperature), 50 ~ 95% (humidity), pollution degree 2
2. Storage: -25°C ~ 70°C (temperature), 5 ~ 95% (humidity)
Vibration/shock immunity International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)
Power Supply
Max. rated power
consumption
24V DC (20.4V DC ~ 28.8V DC) (-15% ~ +20%), W, supplied by external power
5.6 CR (Control Register)
5.6.1 CR in DVP04TC-E2
DVP04TC-E2
CR# Save Register content
Description
#0 YES R Model name
Set up by the system:
DVP04TC-E2 model code = H’0083
#1 YES R Firmware version Displaying the current firmware version in hex.
#2 YES R/W CH1 Input mode setting
#3 YES R/W CH2 Input mode setting
#4 YES R/W CH3 Input mode setting
#5 YES R/W CH4 Input mode setting
Input mode: Default = H’0000. Take CH1 for example:
Mode 0 (H’0000): J-type (-100°C ~1,150°C).
Mode 1 (H’0001): K-type (-100°C ~ 1,350°C).
Mode 2 (H’0002): R-type (0°C ~ 1,750°C).
Mode 3 (H’0003): S-type (0°C ~ 1,750°C).
Mode 4 (H’0004): T-type (-150°C ~ 390°C).
Mode 5 (H’0005): E-type (-150°C ~ 980°C).
Mode 6 (H’0006): N-type (-150°C ~ 1,280°C).
Mode 7 (H’0007): -80mV~+80mV
Mode -1(H’FFFF): Close.
#6 Reserved
#7 YES R/W Tempera t u r e unit sett i n g
Select the temperature unit (Celsius °C / Fahrenheit °F).
Default =
H0(C)
#8 YES R/W CH1 average times
#9 YES R/W CH2 average times
#10 YES R/W CH3 average times
#11 YES R/W CH4 average times
Set average times at CH1 ~ CH4
Range = K1 ~ K100
Default = K10
#12 NO R
Average temperature measured at
CH1
#13 NO R
Average temperature measured at
CH2
#14 NO R
Average temperature measured at
CH3
#15 NO R
Average temperature measured at
CH4
Average of temperature measured at CH1 ~ CH4.
Temperature u ni t: set in CR# 7
#16 ~ #19 Reserved
#20 NO R
Present temperature measured at
CH1
#21 NO R
Present temperature measured at
CH2
#22 NO R
Present temperature measured at
CH3
#23 NO R
Present temperature measured at
CH4
Present of temperature measured at CH1 ~ CH4.
Temperature u ni t: set in CR# 7
#24 ~ #27 Reserved
