Delta DVP-EX2 User Manual

DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
3-10
Mnemonic Function Program steps
Controllers
ES2/EX2/
EC5
SS2
SA2
SE
SX2
ANB Connect a block in series 1
Explanations:
The ANB instruction is used to connect a circuit block to the preceding block in series. Generally,
the circuit block to be connected in series consists of several contacts which form a parallel
connection structure.
Program example:

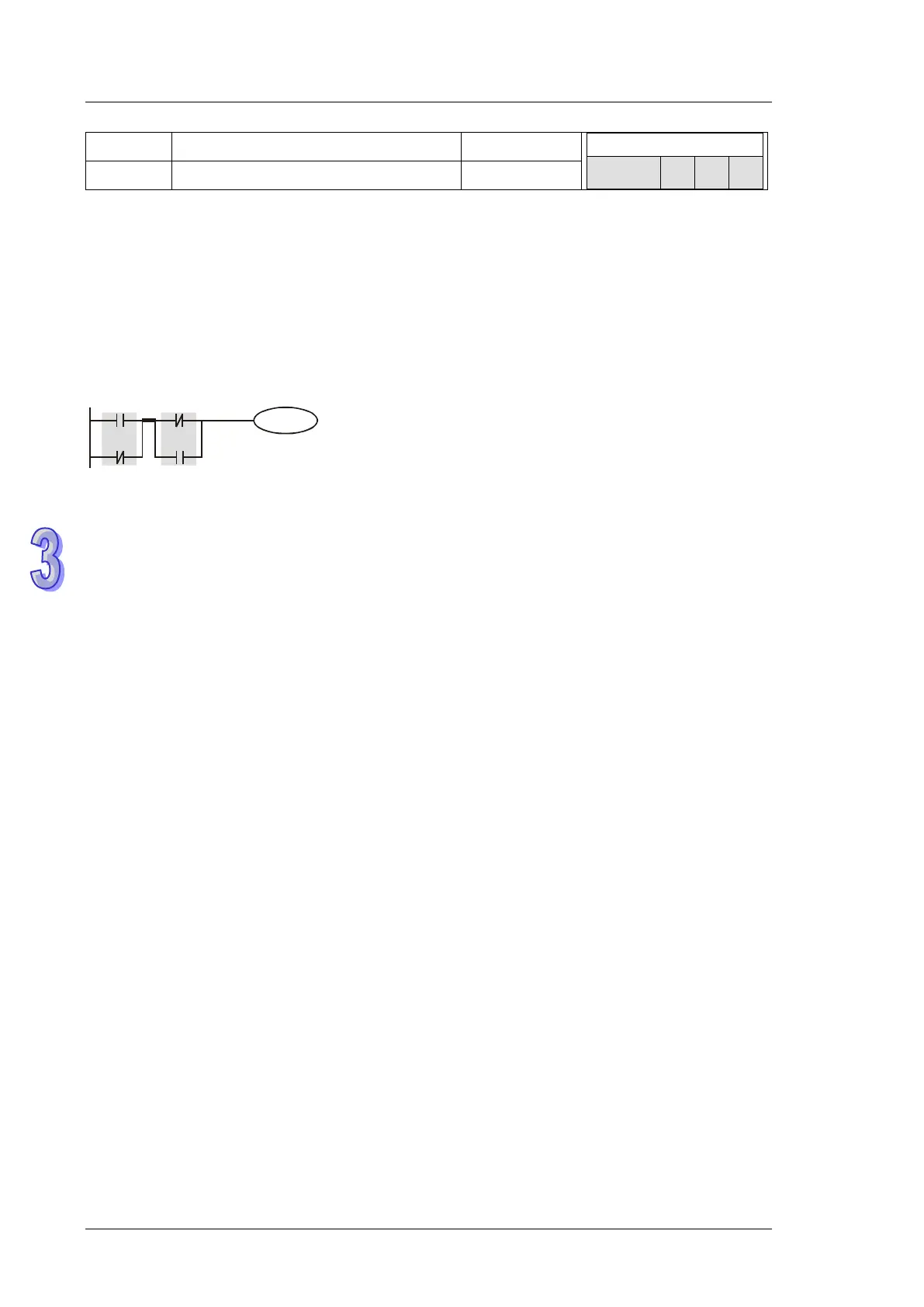

Ladder diagram:
X0
X2
Y1
X1
X3
ANB
Block A Block B
Instruction: Operation:
LD X0 Load NO contact X0
ORI X2 Connect NC contact X2 in parallel
LDI X1 Load NC contact X1
OR X3 Connect NO contact X3 in parallel
ANB Connect circuit block in series
OUT Y1 Drive Y1 coil
