Delta DVP-EX2

3. Instruction Set
3-249

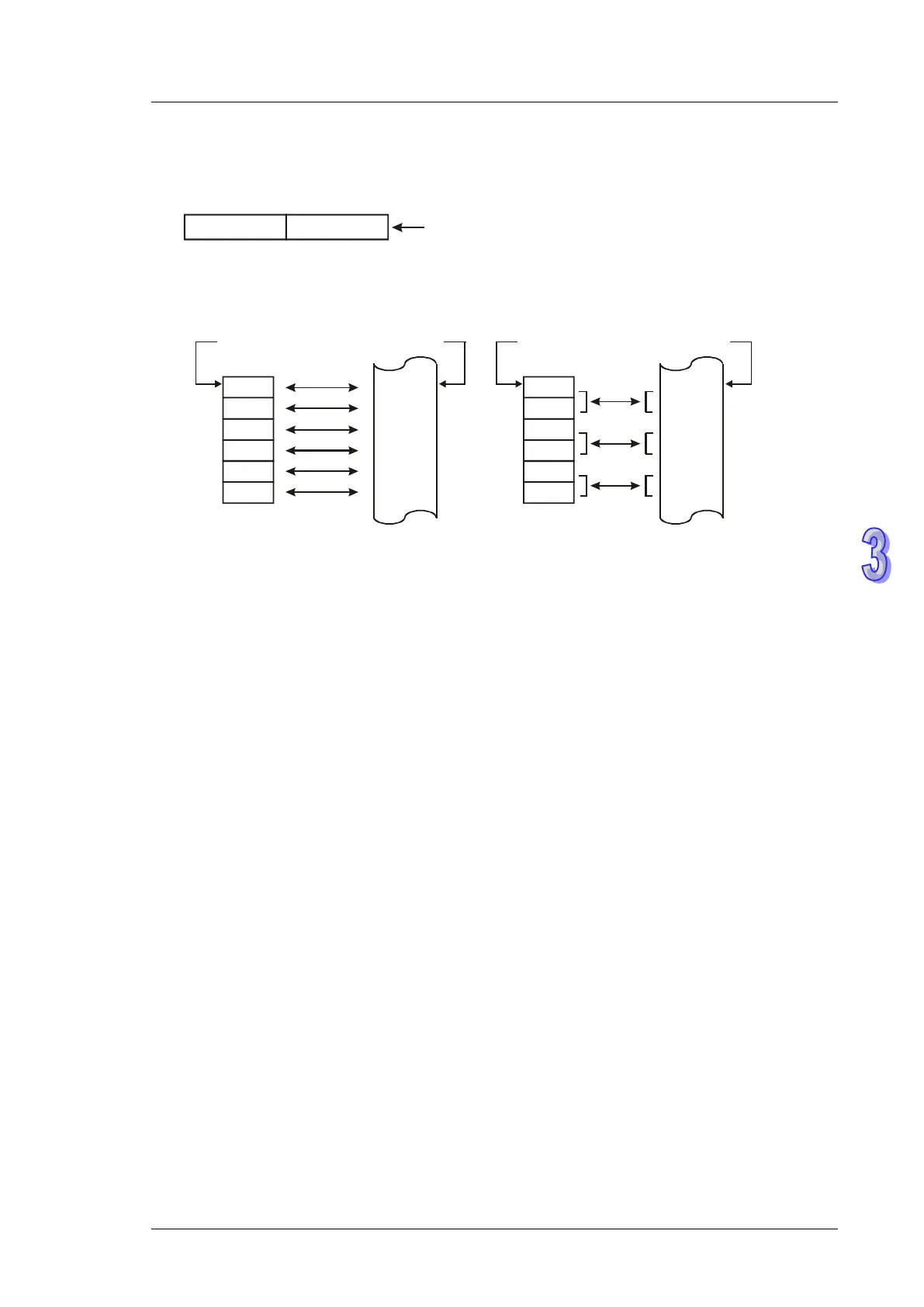

3. FROM/TO instruction reads/writes 1 CR at a time. DFROM/DTO instruction reads/writes 2 CRs
at a time.
CR #10 CR #9
Upper 16-bit
Lower 16-bit
Specified CR number
4. n: Number of data to be written at a time. n = 2 in 16-bit instruction has the same operation
results as n = 1 in 32-bit instruction.
D0
D1
D2
D3
D4
D5
CR #5
CR #6
CR #7
CR #8
CR #9
CR #10
D0
D1
D2
D3
D4
D5
CR #5
CR #6
CR #7
CR #8
CR #9
CR #10
Specified device
Specified CR
Specified device
Specified CR
16-bit instruction when n=6
32-bit instruction when n=3
