DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming

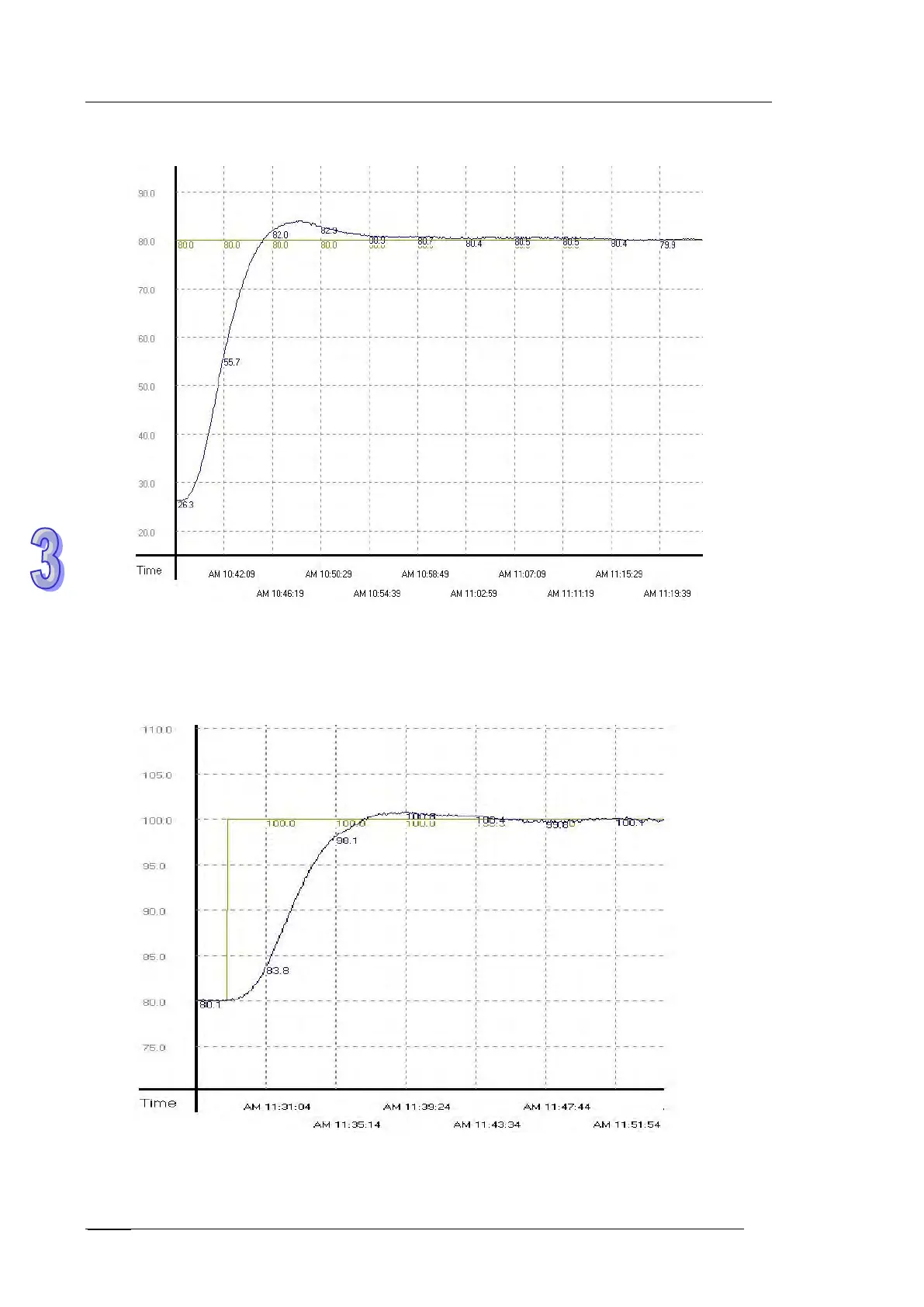

Results of using adjusted parameters generated by initial auto-tuning function.
From the figure above, we can see that the temperature control after auto-tuning is working fine
and it spent only approximately 20 minutes for the control. Next, we modify the target temperature
from 80°C to 100°C and obtain the result below.
From the result above, we can see that when the parameter is 100°C, temperature control works
fine and costs only 20 minutes same as that in 80°C.
