DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming

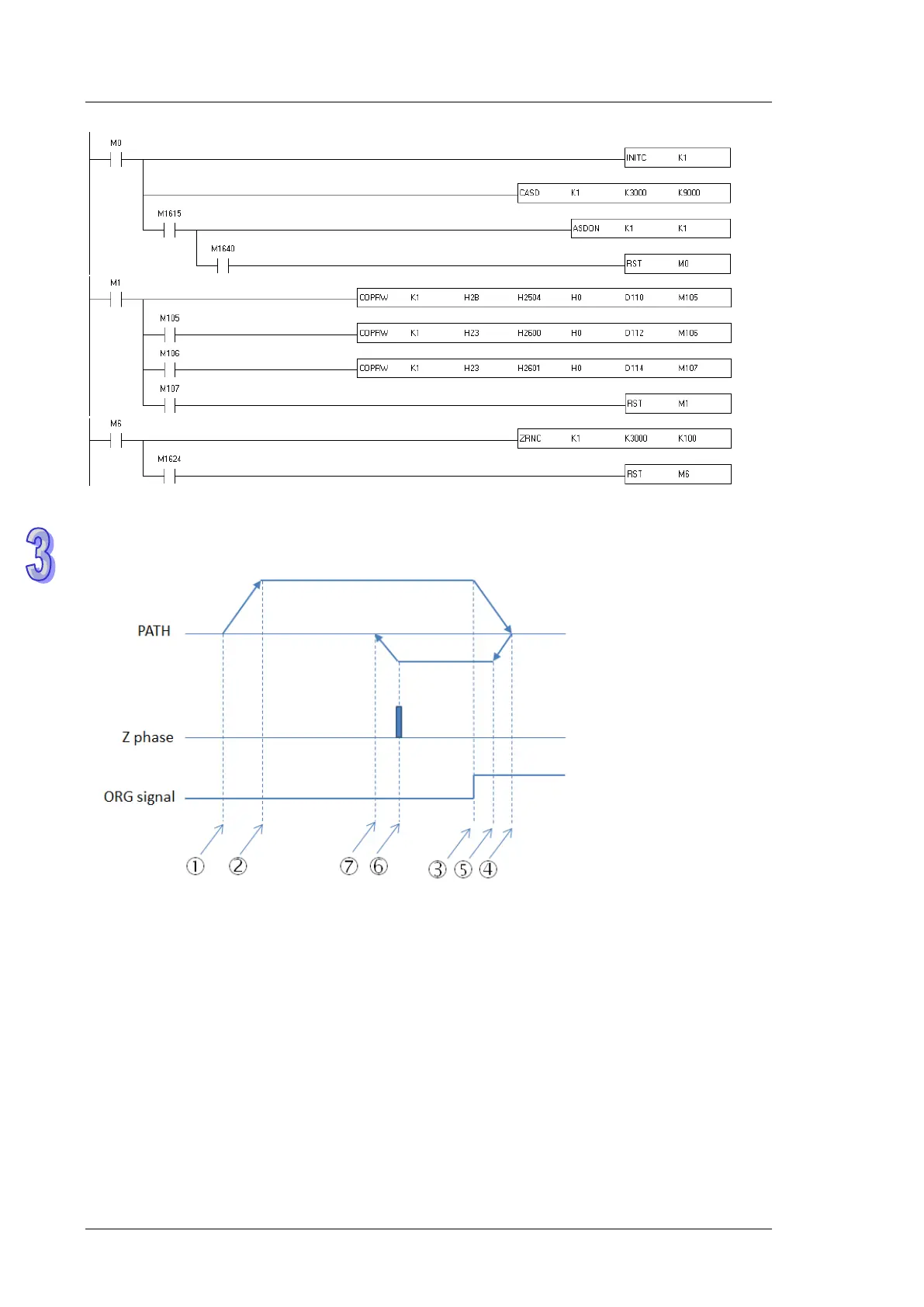

For firmware V3.48 or eariler versions: after finding the origin (Sensor or Z), the motor has to
decelerate to stop. The stop position will slightly exceed the origin.
M1 = Off→On, starts homing and moves towards the reverse direction
Reaching the first high speed
Finding the origin (Sensor or Z)
After decelerating to stop, it moves towards the forward direction
Reaching the second low speed
After leaving origin and then meeting the first Z phase, it starts to decelerate
After decelerating, it stops
