DVP-ES2/EX2/EC5/SS2/SA2/SX2/SE&TP Operation Manual - Programming
5-16

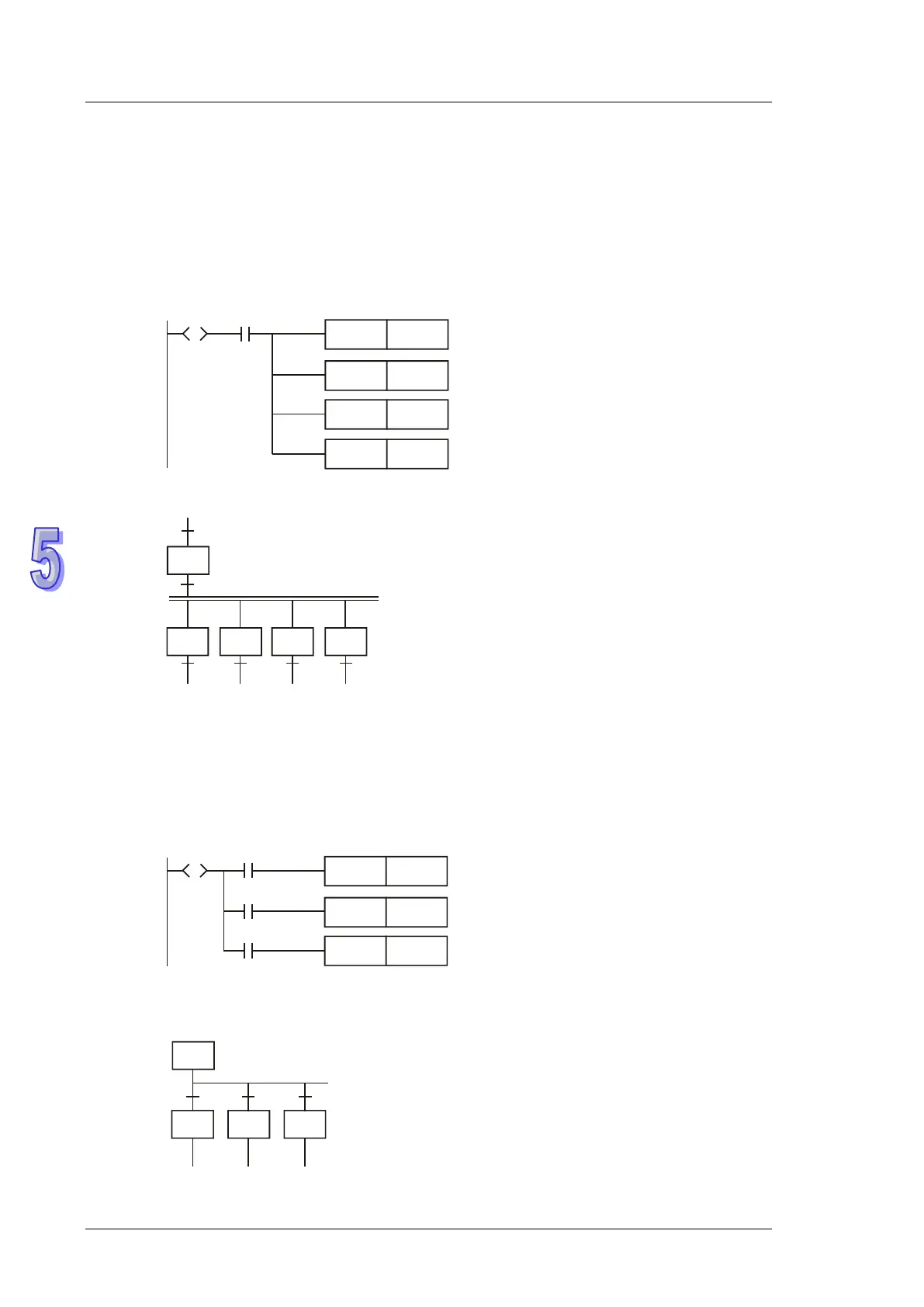

Complicated Single Sequence: Includes simultaneous divergence, alternative divergence,
simultaneous convergence and alternative convergence
1. Structure of Simultaneous Divergence
When the condition at the current step is true, the step can be transferred to multiple steps. For
example, when X0 = ON, S20 will be simultaneously transferred to S21, S22, S23 and S24.
Ladder diagram of simultaneous divergence:
X0
SET
SET S22
S21
S
SET S23
S20
SET S24
SFC diagram of simultaneous divergence:
S20
S21
S22
S23
S24
2. Structure of Alternative Divergence
When the individual condition at the current status is true, the step will be transferred to another
individual step. For example, when X0 = ON, S20 will be transferred to S30; when X1 = ON, S20
will be transferred to S31; when X2 = ON, S20 will be transferred to S32.
Ladder diagram of alternative divergence:
X0
SET
SET S31
S30
S
SET S32
S20
X1
X2
SFC diagram of alternative divergence:
S20
S30
S31 S32
X0 X1 X2
