Communication Module DVPSCM12/52-SL
DVP-PLC Operation Manual
16

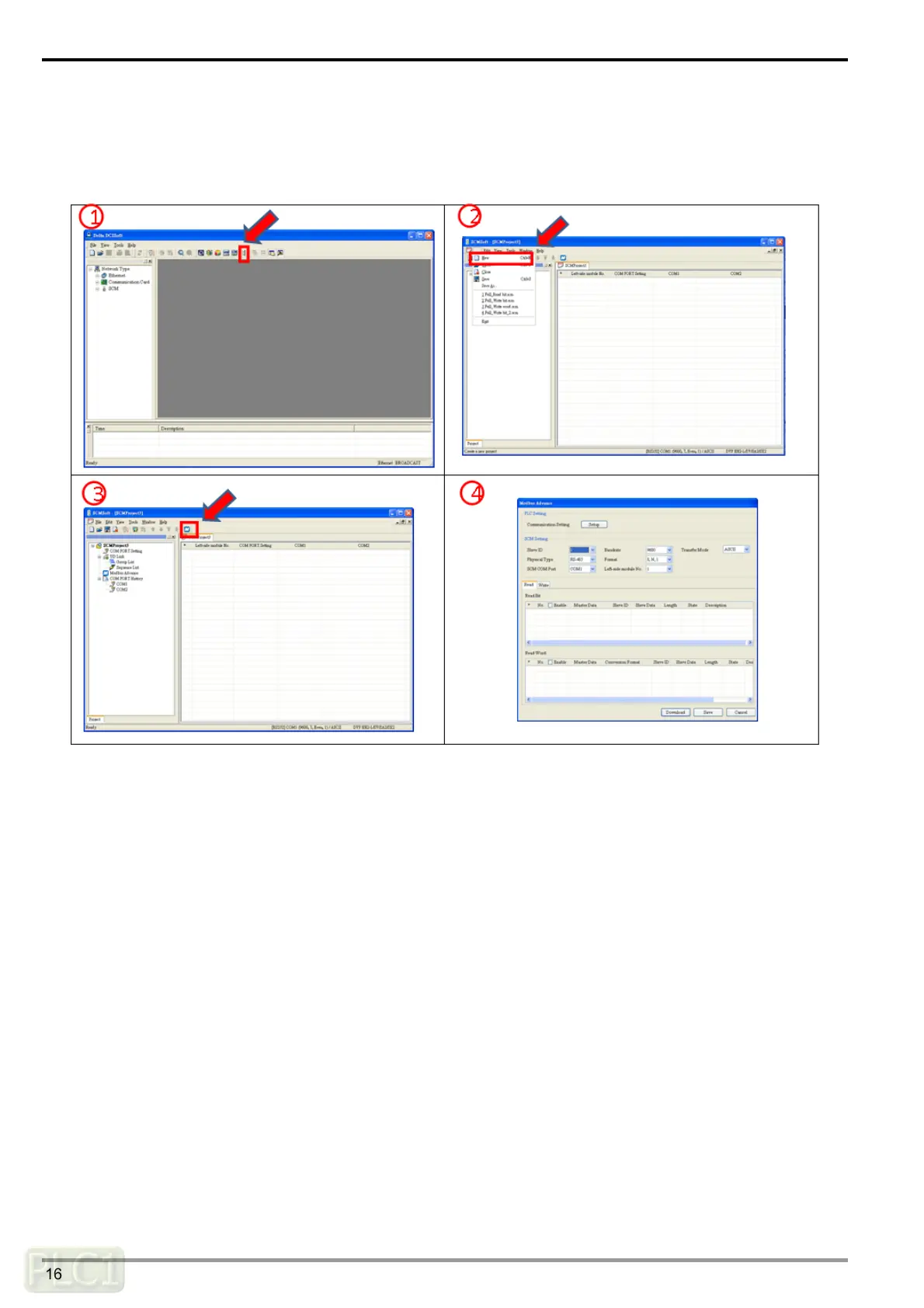

【Opening a SCM project and “MODBUS Advance”】
Click “SCMSoft” in DCISoft to open the setting page. Then, click “New Project” in SCMSoft to establish a
SCM project. Finally, click “MODBUS Advance Wizard” to open the setting page for the reading/writing.
【Setting “MODBUS Advance”】
In order to expedite the communication using MODBUS, SCMSoft provides “MODBUS Advance Wizard”.
The user only needs to designate the registers for the data sending and the data receiving, or the absolute
positions. The settings will be downloaded to the SCM module through the communication port chosen by
the user. After the flag is enabled, the designated reading and writing are complete. The following are the
steps of setting the wizard.
(1) MODBUS Advance－PLC Setting
Click “Setup” to set the communication between the MPU of the PLC and SCMSoft. If the setting has
been completed at【Communication setting】, the user does not have to set the communication here
again.
(2) SCM Setting
When setting the communication format of the communication port on the SCM module, the user can
designate the left-side module number, and the communication port, and set the station address, the
baudrate, the physical type, the transfer mode, and the format.
