Fig. 5

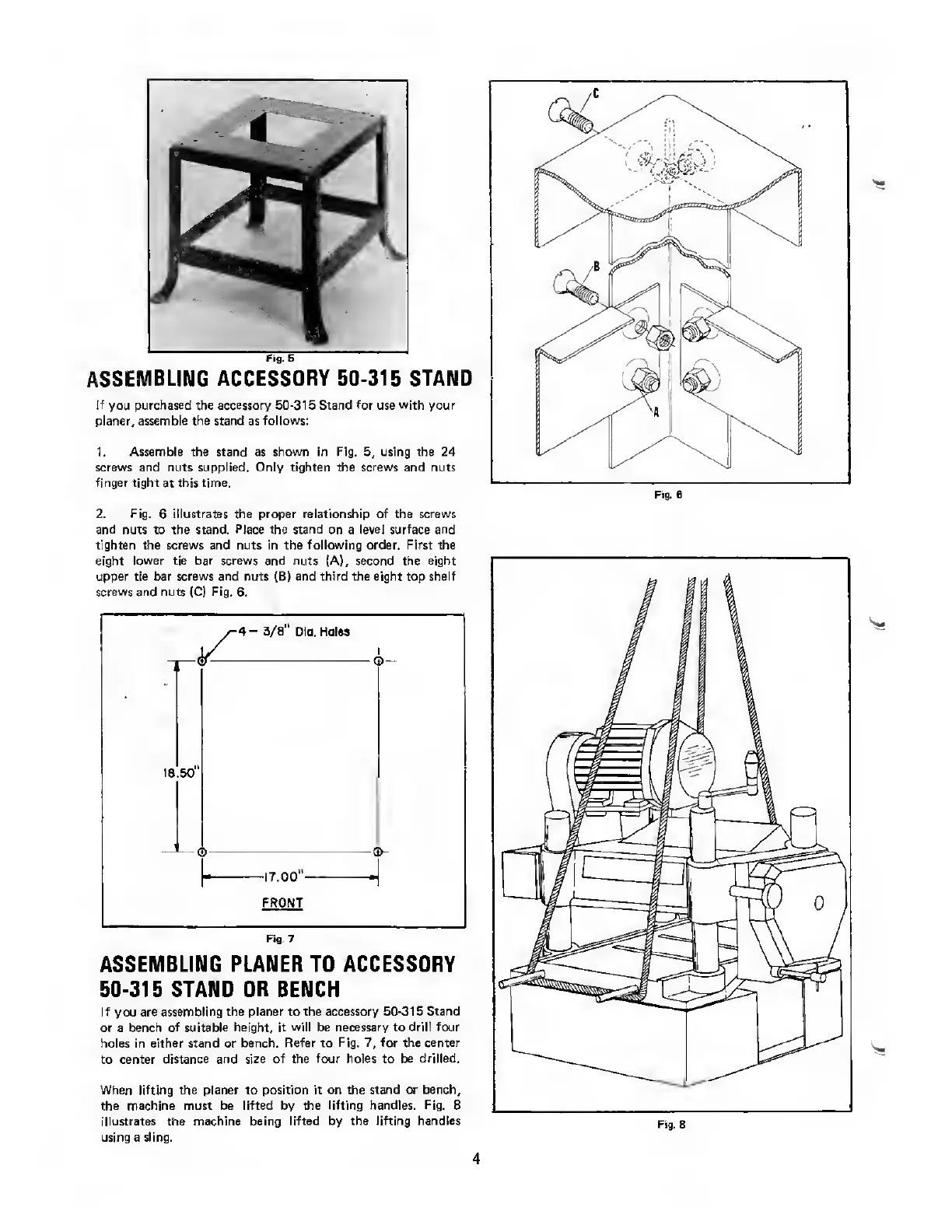

ASSEMBLING ACCESSORY 50-31B STAND
If yoj purchased the accessory 50*315 Stand for use with your
planer, assemble the stand as follows:
1. Assemble the stand as shown in Fig. 5, using the 24
screws and nuts supplied. Only tighten the screws and nuts
finger tight at this time.
2. Fig. 6 illustrates the proper relationdnip of the screws
and nuts to the stand. Place the stand on a level surface and
tighten tiie screws and nuts in the following order. First the
eight lower tie bar screws and nuts (A), second the eight
upper tie bar screws and nuts (B) and third the eight top shelf
screws and nuts (C) Fig. 6.
4- 3/8" DIa. Holes
I
©-
18.50"
© -®-
|--17.00"--|
FRONT
Fig. 7
ASSEMBLING PLANER TO ACCESSORY
50-315 STAND OR BENCH
If you are assembling the planer to the accessory 50-315 Stand
or a bench of suitable height, it will be necessary to drill four
holes in either stand or bench. Refer to Fig. 7, for the center
to center distance and size of the four holes to be drilled.
When lifting die planer to position it on the stand or bench,
the machine must be lifted by the lifting handles. Fig. 8
illustrates the machine being lifted by the lifting handles
using a sling.
4
