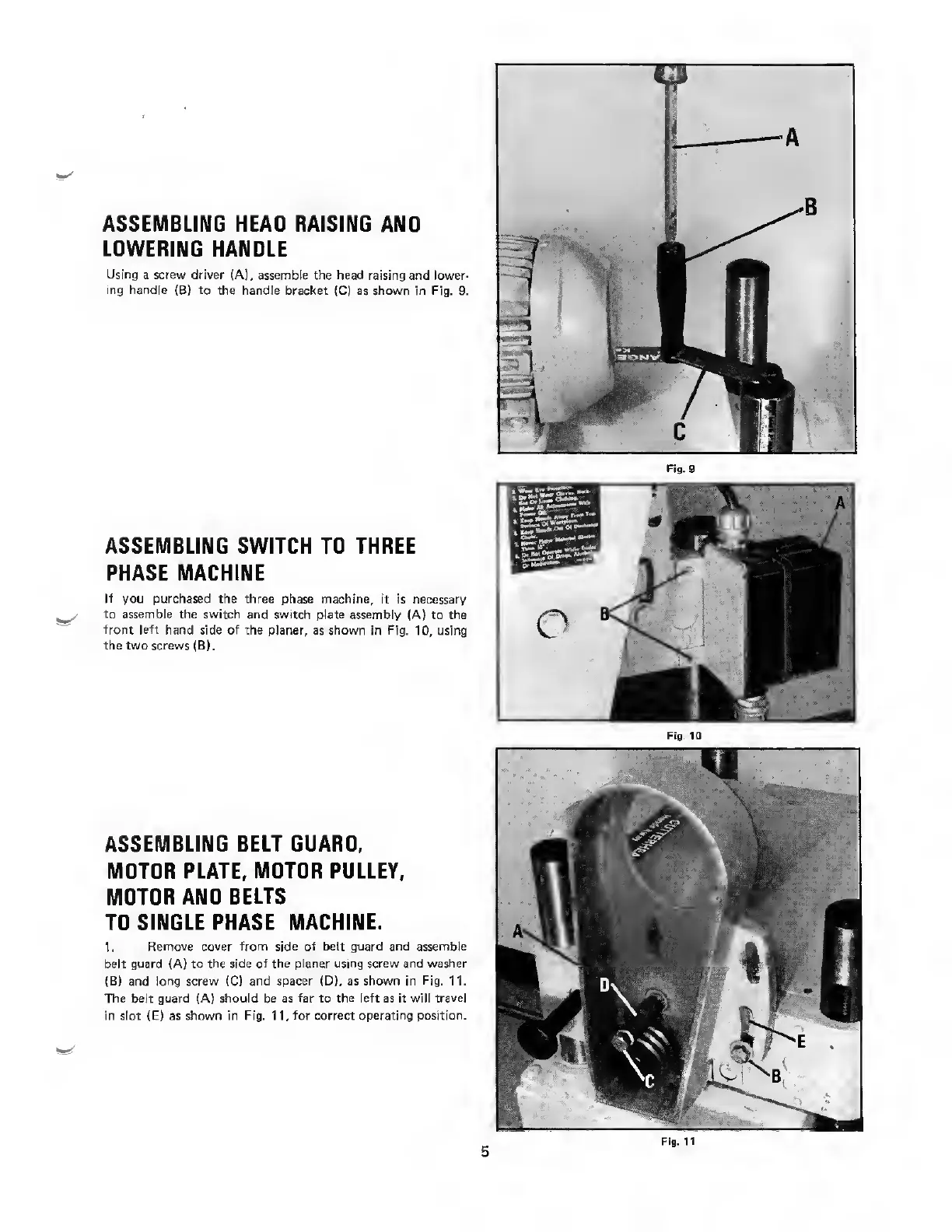

ASSEMBLING
HEAD
RAISING
AND
LOWERING
HANDLE
Using
a
screw
driver
(A),
assemble
the
head
raising
and
lower¬
ing
handle
(B)
to
the
handle
bracket
(C)
as
shown
in
Fig.
9.
ASSEMBLING
SWITCH
TO
THREE
PHASE
MACHINE
If
you
purchased
the
three
phase
machine,
it
is
necessary
to
assemble
the
switch
and
switch
plate
assembly
(A)
to
the
front
left
hand
side
of
the
planer,
as
shown
in
Fig.
10,
using
the
two
screws
(B),
ASSEMBLING
BELT
GUARD,
MOTOR
PLATE,
MOTOR
PULLEY,
MOTOR
AND
BELTS
TO
SINGLE
PHASE
MACHINE.
1,
Remove
cover
from
side
of
belt
guard
and
assemble
belt
guard
(A)
to
the
side
of
the
planer
using
screw
and
washer
(B)
and
long
screw
(C)
and
spacer
(D),
as
shown
in
Fig.
11.
The
belt
guard
(A)
should
be
as
far
to
the
left
as
it
will
travel
in
slot
(E)
as
shown
in
Fig.
11,
for
correct
operating
position.
5
Fig.
11
