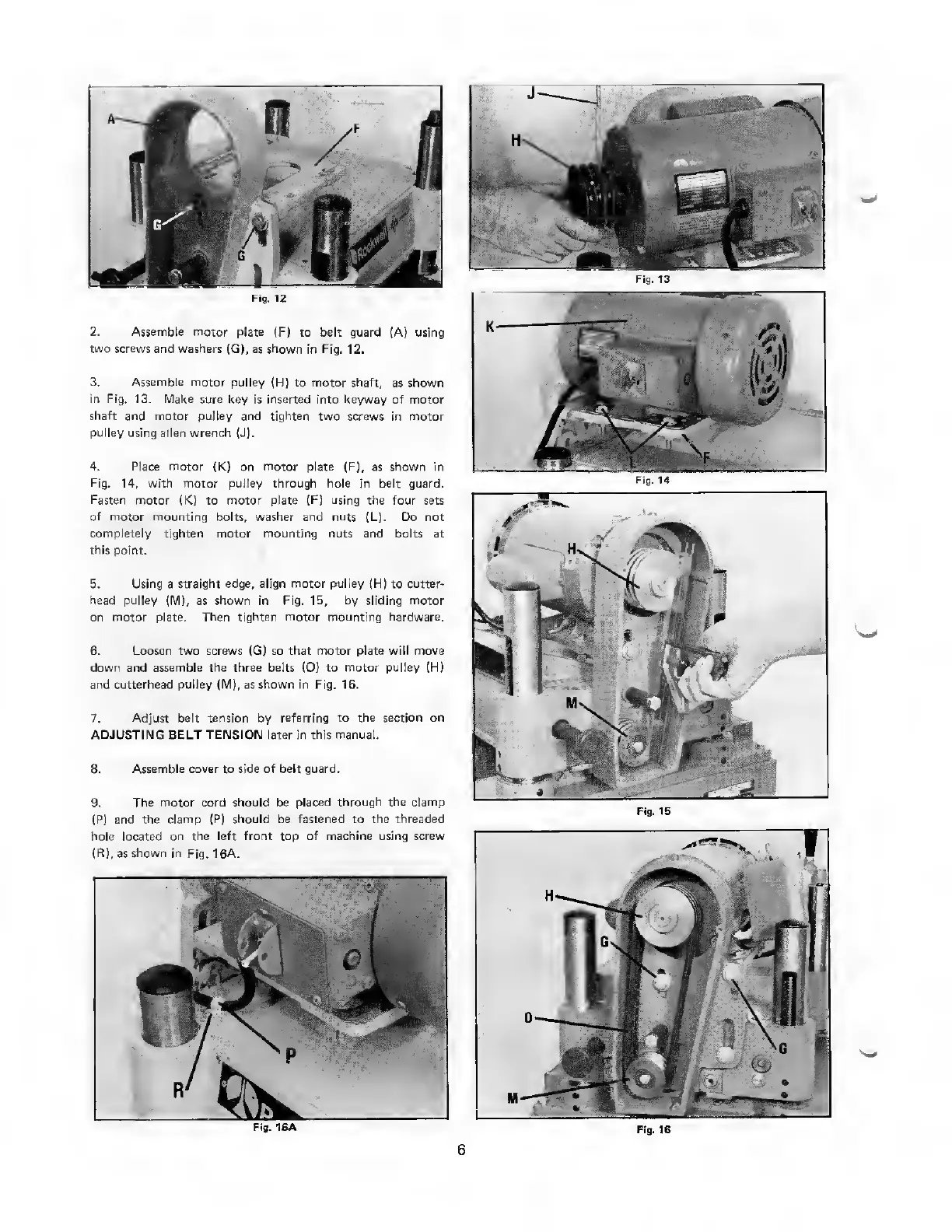

Fig. 12
2. Assemble motor plate (F) to belt guard (A) using
two screws and washers {G), as shown in Fig. 12.
3. Assemble motor pulley (H) to motor shaft, as shown
in Fig. 13. Make sure key is inserted into keyway of motor
shaft and motor pulley and tighten two screws in motor
pulley using alien wrench (J}.
4. Place motor (K) on motor plate (F), as shown in
Fig, 14, with motor pulley through hole in belt guard.
Fasten motor (K) to motor plate (F) using the four sets
of motor mounting bolts, washer and nuts (L). Do not
completely tighten motor mounting nuts and bolts at
this point.
5. Using a straight edge, align motor pulley (Hi to cutter-
head pulley (M), as shown in Fig. 15, by sliding motor
on motor plate. Then tighten motor mounting hardware.
6. Loosen two screws (G) so that motor plate will move
down and assemble the three belts (0) to motor pulley (H)
and cutterhead pulley (M), as shown in Fig. 16.
7. Adjust belt tension by referring to the section on
ADJUSTING BELT TENSION later in this manual.
8. Assemble cover to side of belt guard.
9. The motor cord should be placed through the clamp
(P) and the clamp (P) should be fastened to the threaded
hole located on the left front top of machine using screw
{R), as shown in Fig. 16A.
Fig. 15
Fig. 16
6
