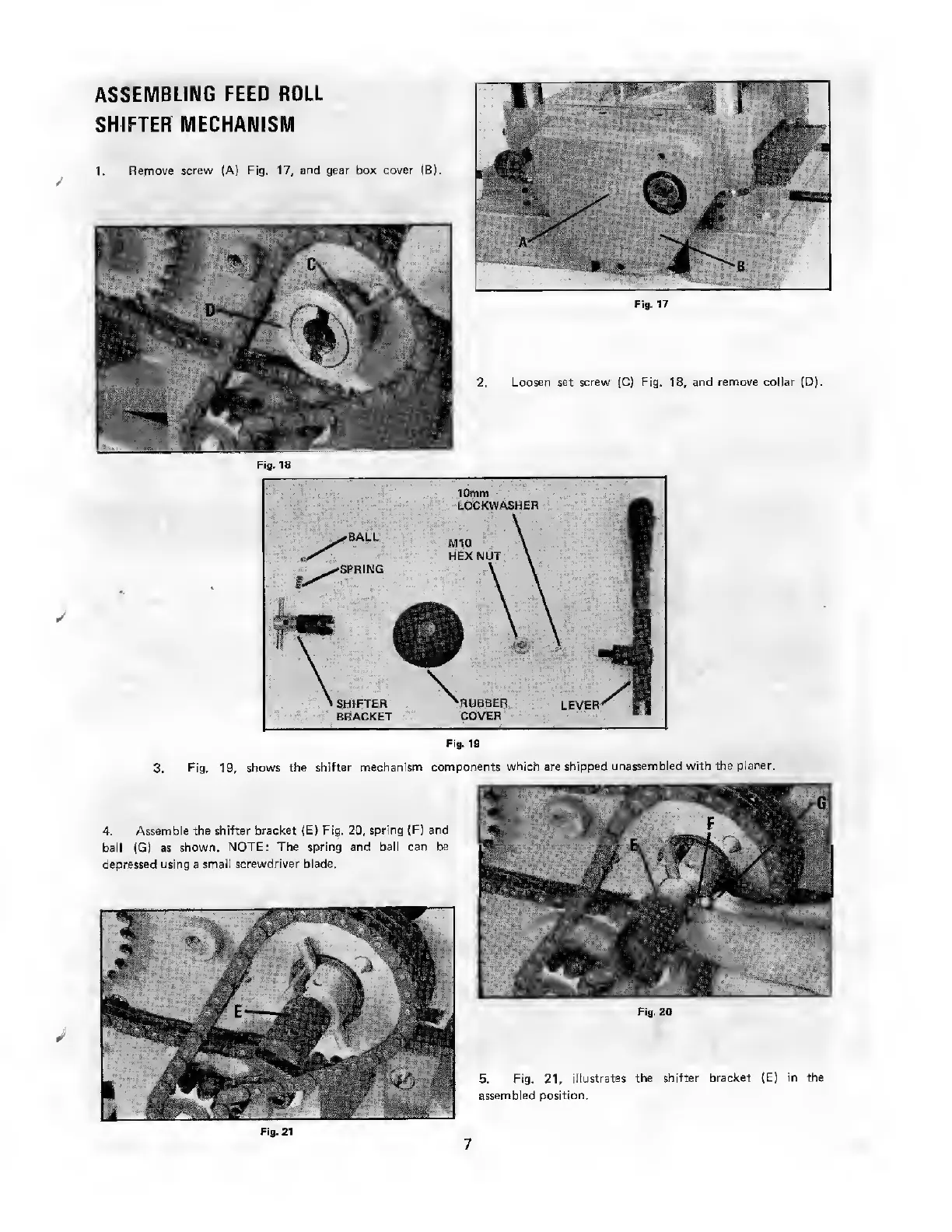

ASSEMBLING FEED ROLL
SHIFTER MECHANISM
1. Remove screw (A) Fig. 17, and gear box cover (B).
Fig. 17
2, Loosen set screw (C) Fig. 18, and remove collar (D).
10mm
LOCKW ASHER
BALL
SPRING
swifter
BRACKET
RUBBER
COVER
LEVER
Fig. 19
3. Fig. 19, shows the shifter mechanism components which are shipped unassembled with the planer.
4. Assemble the shifter bracket (E) Fig. 20, spring (F) and
ball (G) as shown. NOTE; The spring and ball can be
depressed using a small screwdriver blade.
Fig. 20
5. Fig. 21, illustrates the shifter bracket (E) in the
assembled position.
Fig. 21
7
