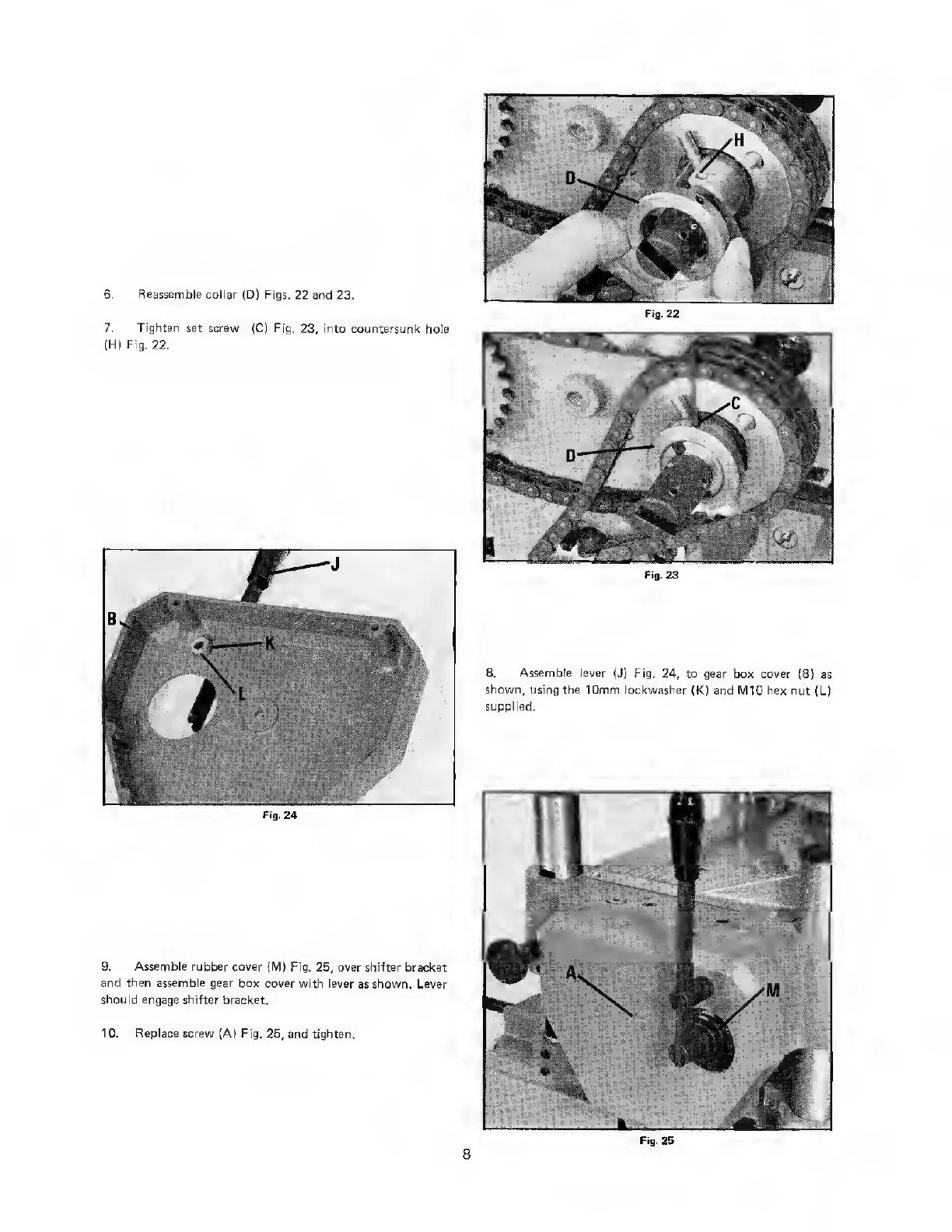

6. Reassemble collar (D) Figs. 22 and 23
7. Tighten set screw (C) Fig, 23, into countersunk hole
(H) Fig. 22,
8. Assemble lever (J) Fig, 24, to gear box cover (B) as
shown, using the 10mm lockwasher (K) and M10 hex nut (L)
supplied.
9. Assemble rubber cover (M) Fig, 25, over shifter bracket
and then assemble gear box cover with lever as shown. Lever
should engage shifter bracket.
10. Replace screw (A) Fig. 25, and tighten
