RMC70 Startup Guide
32 Delta Computer Systems, Inc.

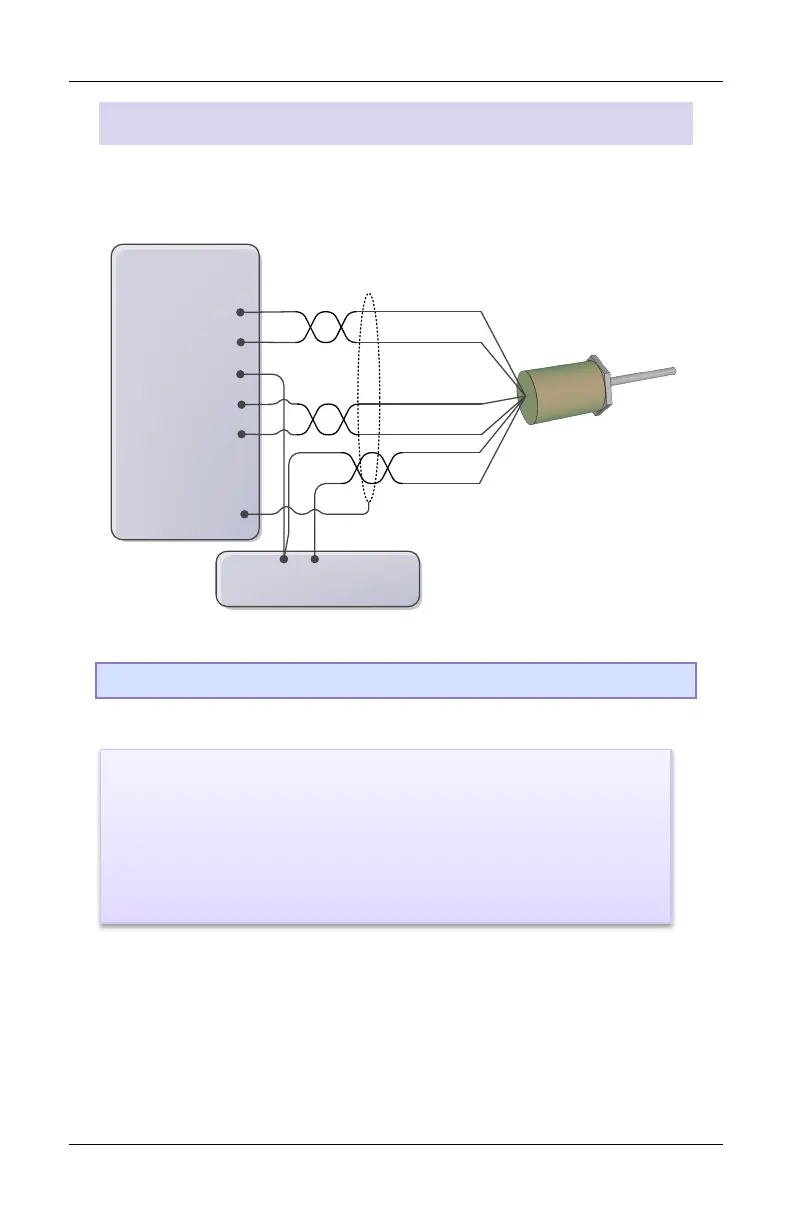

MA Module SSI Transducer Wiring
For Synchronous Serial Interface (SSI) transducers and encoders. For
linear SSI transducers, make sure to choose the synchronized type.
12-pin Axis
Connector
Int/Clk+
Int/Clk-
Cmn
Ret/Dat+
Ret/Dat-
Case
Clock +
Clock -
Data +
Data -
Power Supply
+Pwr
Pwr+
DC Gnd
Tip: See next page for manufacturer-specific wiring diagrams.
• The Cmn pins on the 12-pin connector are electrically identical.
• The user must supply power to the transducer.
• Do NOT connect the transducer ground or common to the
shield, case, or protective earth ground.
To Next Page
