Fix it
Rotate to loose the AC plug
L1
L2
N
PE
L3
Cable
L1
L2
L3
N
PE
Cable
Rotate to tighten the inserter
Rotate gland to fix cable
Fix it
Inverter
Rotate to tighten the plug
AC plug
Socket
AC plug
Cable

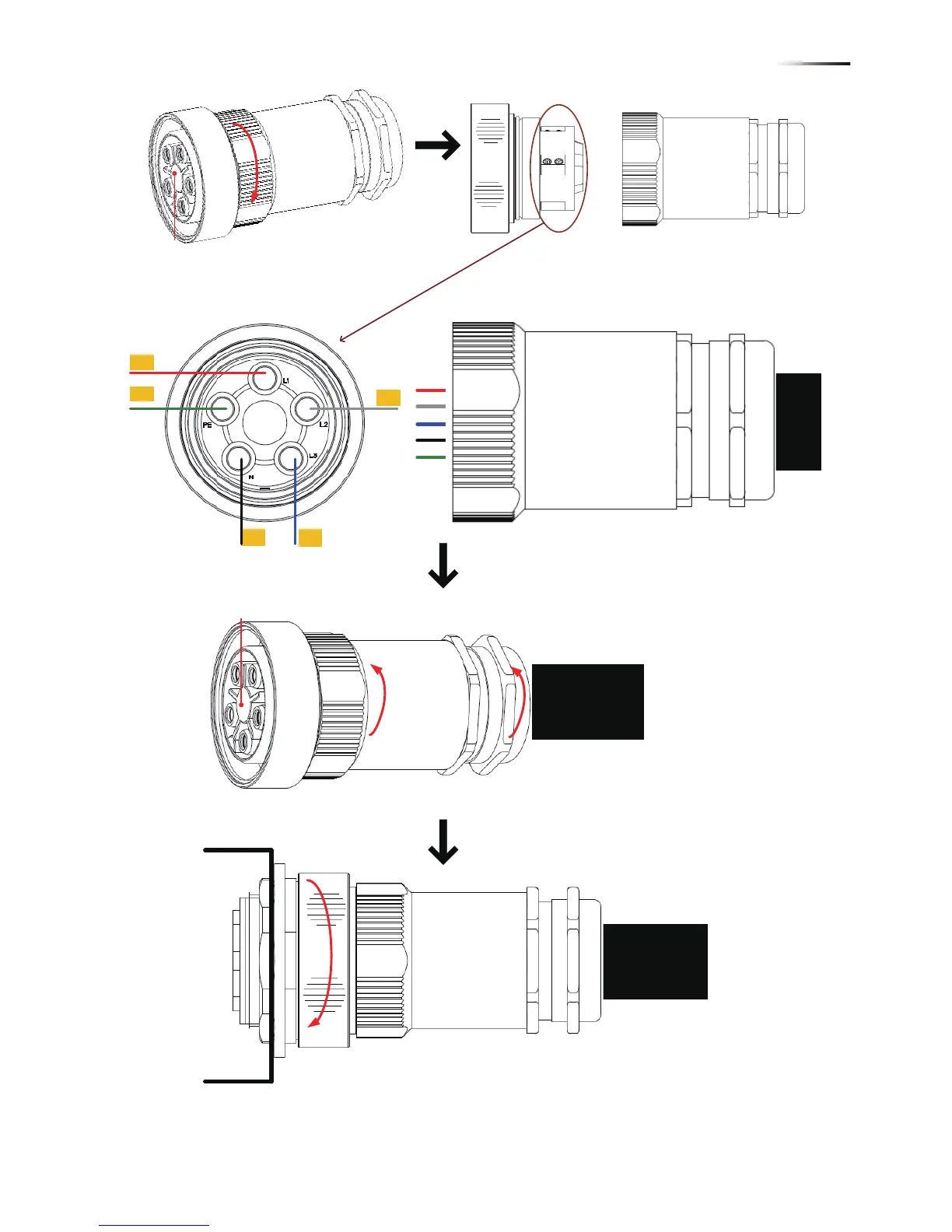

图 4-14 RPI M50A之AC接头配线图
